11A-38
TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A
a Rotate the crankshaft clockwise through two revolu-
tions (timing end).
a Before the camshaft pulley hole (20) is opposite the
cylinder head hole (21) , screw the (Mot. 1489) into
the cylinder block.
a Bring the crankshaft slowly and smoothly into con-
tact with the tool (Mot. 1489).
a Set the camshaft pulley using the (Mot. 1430).
a Remove:
- the (Mot. 1489),
- the (Mot. 1430).

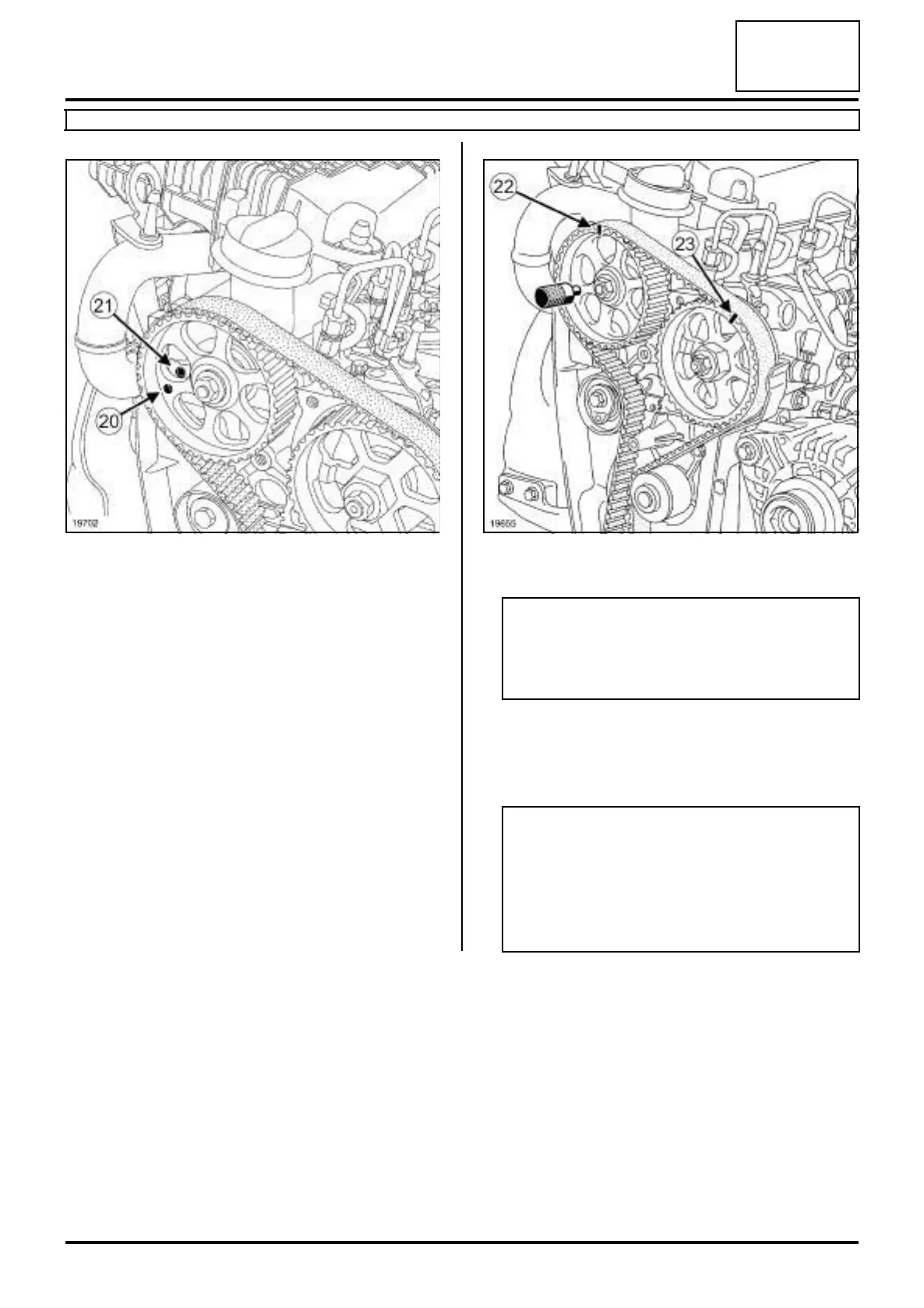

19702 19655
Note:
There should be 19 belt tooth grooves between
the marks on the camshaft pulley (22) and the
high pressure pump pulley (23) .
Note:
After rotating the crankshaft through two revolu-
tions, the tensioning roller adjustable index may
be in one of two positions.
The rotation of the tension wheel eccentric
depends on the position.
