TOP AND FRONT OF ENGINE
Timing belt: Removal - Refitting
K9K, and 796
11A

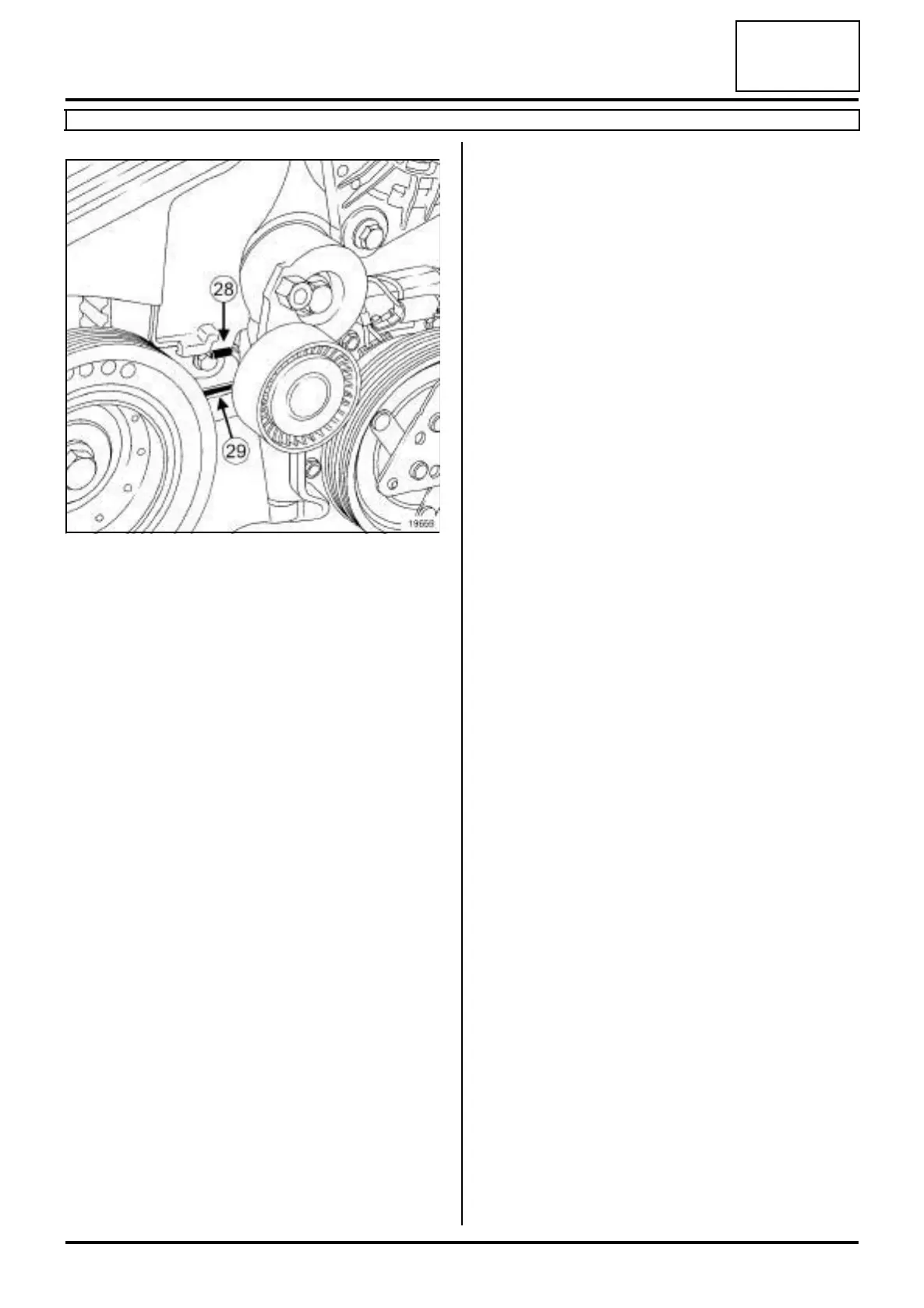

a Refit the lower timing cover, positioning the tab (28)
in the opening (29) on the inner cover.
a Clip on the lower timing cover.
a Refit:
-the upper timing cover,
-the upper timing cover bolt.
a Clip on the upper timing cover.
a Refit:
-the camshaft position sensor (see 13B, Diesel in-
jection, Camshaft position sensor: Removal -
Refitting, page 13B-7) ,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-4) , observing the marks made during remov-
al.
a Remove the engine support tool (Mot. 1453).
a Refit the front right-hand wheel (see Wheel: Re-
moval - Refitting) (35A, Wheels and tyres).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
