TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K4M
11A
II - REFITTING OPERATION
a Refit the rocker cover.
a Tighten to torque and in order:

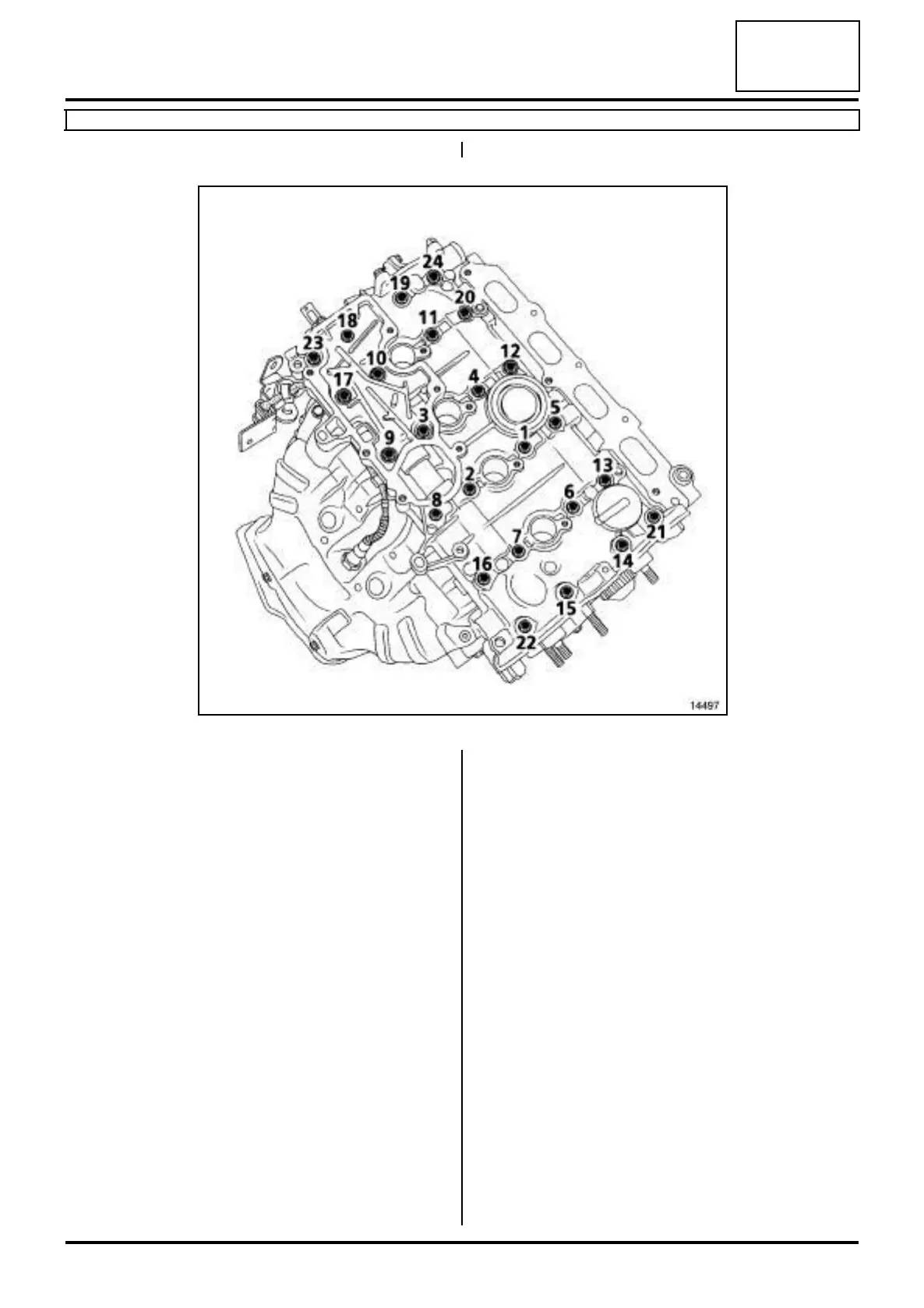

-rocker cover bolts 22, 23, 20 and 13 (8 N.m),
-rocker cover bolts 1 to 12, 14 to 19, 21 to 24 (15
N.m).
a Loosen bolts 22, 23, 20 and 13, in order.
a Torque tighten in order rocker cover bolts 22, 23,
20 and 13 (15 N.m).
III - FINAL OPERATION
a Refit the flywheel end lifting eye.
a Torque tighten the flywheel end lifting eye bolts
on the rocker cover (11 N.m).
a Refit:
-the oil decanter (see 11A, Top and front of en-
gine, Oil decanter: Removal - Refitting, page
11A-68) ,
-the ignition coils (see 17A, Ignition, Coils: Re-
moval - Refitting, page 17A-1) ,
- the camshaft seals (see 11A, Top and front of en-
gine, Camshaft seal, timing end: Removal - Re-
fitting, page 11A-56) ,
- the inlet distributor (see 12A, Fuel mixture, Inlet
distributor: Removal - Refitting, page 12A-12) ,
-the throttle valve (see 12A, Fuel mixture, Throttle
valve: Removal - Refitting, page 12A-11) ,
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) ,
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-17) ,
- the air resonator (see 12A, Fuel mixture, Air res-
onator: Removal - Refitting, page 12A-2) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
