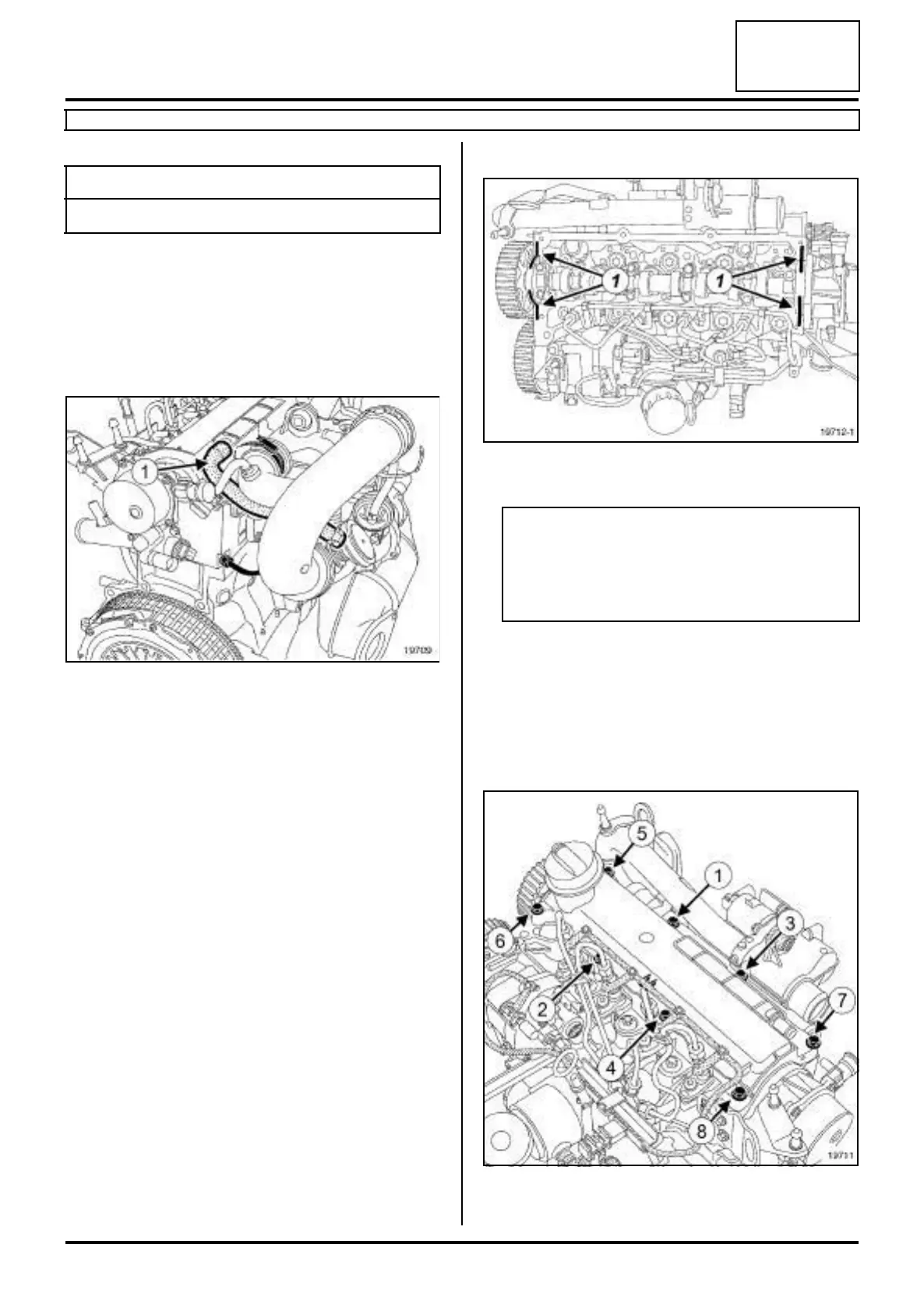

11A-47
TOP AND FRONT OF ENGINE
Rocker cover: Removal - Refitting
K9K
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the air filter unit (see 12A, Fuel mixture,
Air filter unit: Removal - Refitting, page 12A-6) .
a Remove the oil vapour rebreathing hose (1) .
II - REMOVAL OPERATION
a Remove:
-the rocker cover bolts,
-the rocker cover,
-the rocker cover seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a Clean the cylinder head joint face using GREY
ABRASIVE PADS (see Vehicle: Parts and con-
sumables for the repair) (04B, Consumables -
Products).
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to degrease:
-the cylinder head joint face,
-the housing of the rocker cover seal, if reusing.
a parts always to be replaced: rocker cover seal.
II - REFITTING OPERATION
a
a Deposit four beads (1) of SILICONE ADHESIVE
SEALANT that are 2 mm in diameter and 10 mm
long.
a Refit:
- the rocker cover,
- the rocker cover bolts.
a Torque tighten in order the rocker cover bolts (12
N.m).
Tightening torquesm
rocker cover bolts 12 N.m
19709
19712-1
WARNING
Applying excess sealant could cause it to be
squeezed out when parts are tightened. A mix-
ture of sealant and fluid could damage certain
components (engine, radiator, etc.).
19711
