Renault Duster 2007 - Page 156

11A-53
TOP AND FRONT OF ENGINE
Camshaft: Removal - Refitting
K9K
11A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the air filter box (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch liner partially (see
Front wheel arch liner: Removal - Refitting)
(55A, Exterior protection),
-the engine undertray bolts,
-the engine undertray,
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the right-hand suspended engine mounting (see
19D, Engine mounting, Right-hand suspended
engine mounting: Removal - Refitting, page
19D-4) ,
-the camshaft position sensor (see 13B, Diesel in-
jection, Camshaft position sensor: Removal -
Refitting, page 13B-7) ,
-the crankshaft accessories pulley (see 11A, Top
and front of engine, Crankshaft accessories
pulley: Removal - Refitting, page 11A-10) ,
-the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-17) ,
-the vacuum pump (see Vacuum pump: Removal
- Refitting) (37A, Mechanical component controls),
-the rocker cover (see 11A, Top and front of en-
gine, Rocker cover: Removal - Refitting, page
11A-42) .

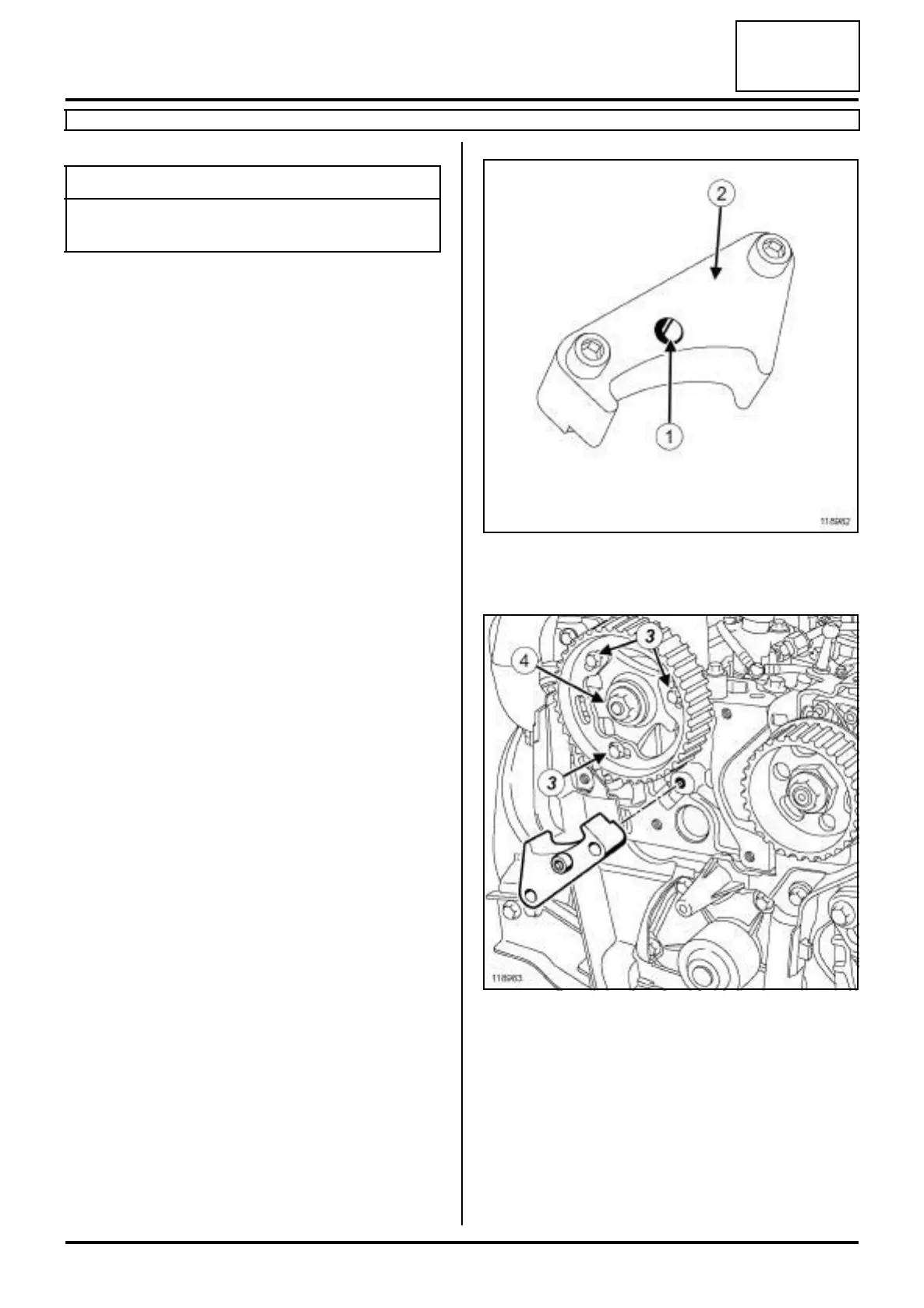

a Increase the hole (1) of the (2) using an 8.5 mm drill
bit.
a Undo the camshaft pulley hub bolts (3) .
a Fit theon the cylinder head to lock the camshaft pul-
ley wheel.
a Tighten the camshaft pulley hub bolts (3) .
a Remove:
- the nut (4) from the camshaft pulley,
- the,
- the camshaft pulley.
Tightening torquesm
bolts of the camshaft
bearings
10 N.m
118982
118983
