11A-54
TOP AND FRONT OF ENGINE
Camshaft: Removal - Refitting
K9K
11A
II - OPERATION FOR REMOVAL OF PART
CONCERNED

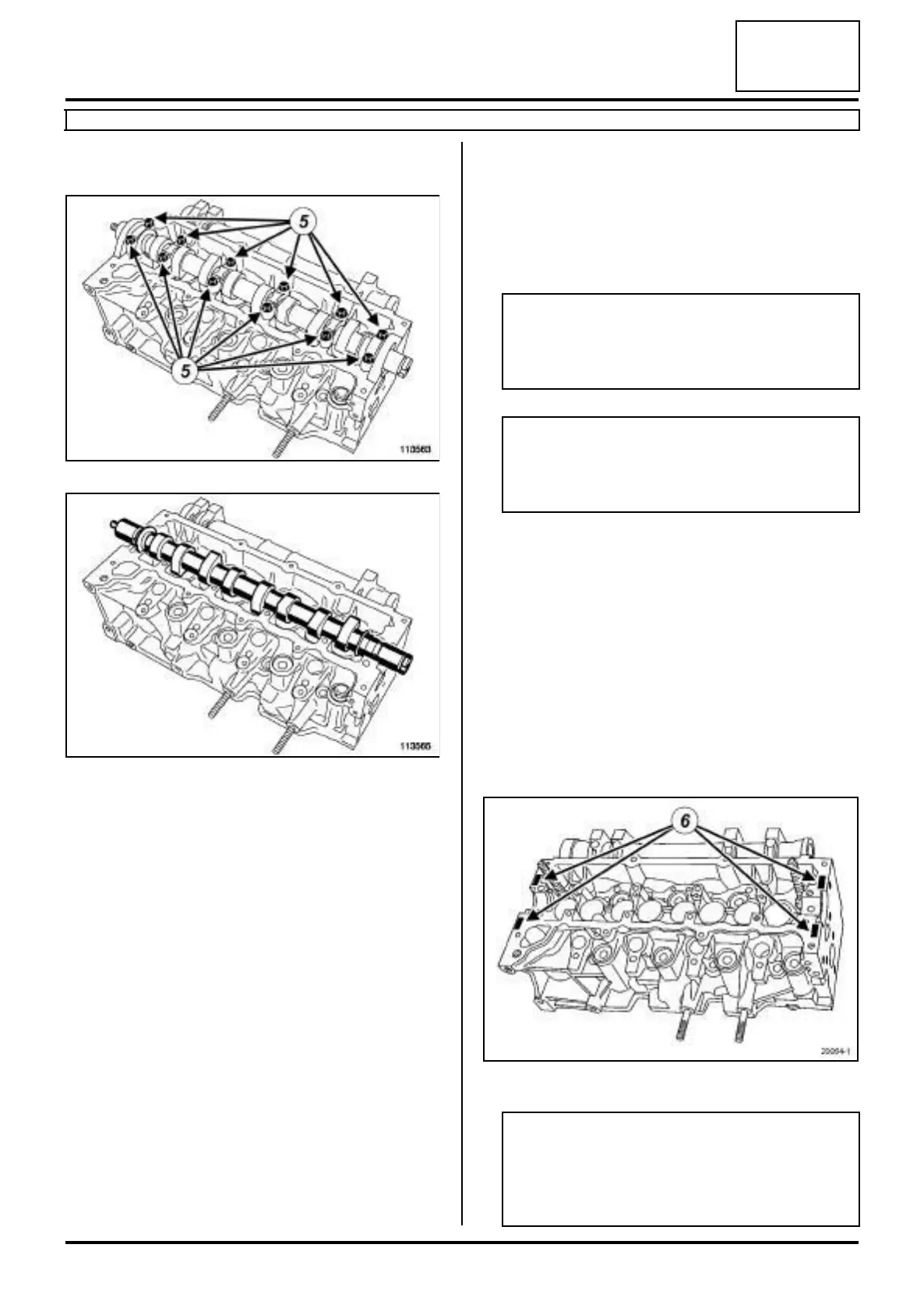

a Mark the position of the camshaft bearings.
a Remove:
-the camshaft bearing bolts (5) ,
-the camshaft bearings,
-the camshaft,
-the timing end camshaft seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Camshaft seal on
timing end.
a Use GREY ABRASIVE PADS (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to clean the bearing faces of the
camshaft bearings.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
- the bearing faces of the camshaft bearings on the
cylinder head,
- the bearing faces of the camshaft bearings on the
camshaft bearings.
a
113563
113565
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
20064-1
WARNING
Applying excess sealant could cause it to be
squeezed out when parts are tightened. A mix-
ture of sealant and fluid could damage certain
components (engine, radiator, etc.).
