Camshaft seal, timing end: Removal - Refitting
K4M
11A

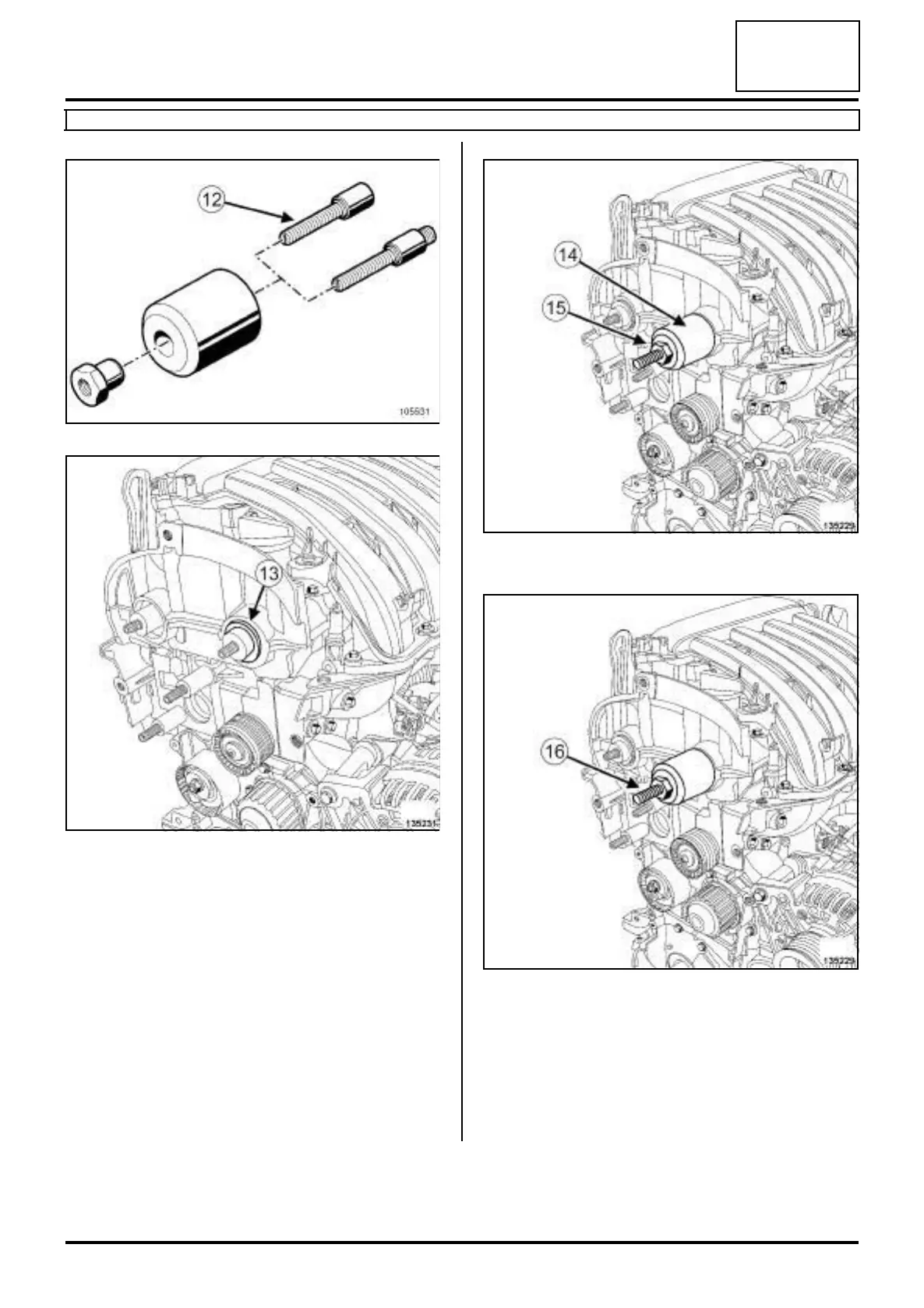

a Fit the protector fitted with a new seal (13) on the in-
let and exhaust camshaft, taking care not to touch
the seal.
a Screw on the stud (12) of the toolon the inlet and ex-
haust camshafts.
a Fit the cover (14) and the collar nut (15) of the.
a Screw on the collar nut until the cover touches the
cylinder head.
a Remove:
- the nut,
- the cover,
- the threaded rod (16) .
