11A-63
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K9K
11A

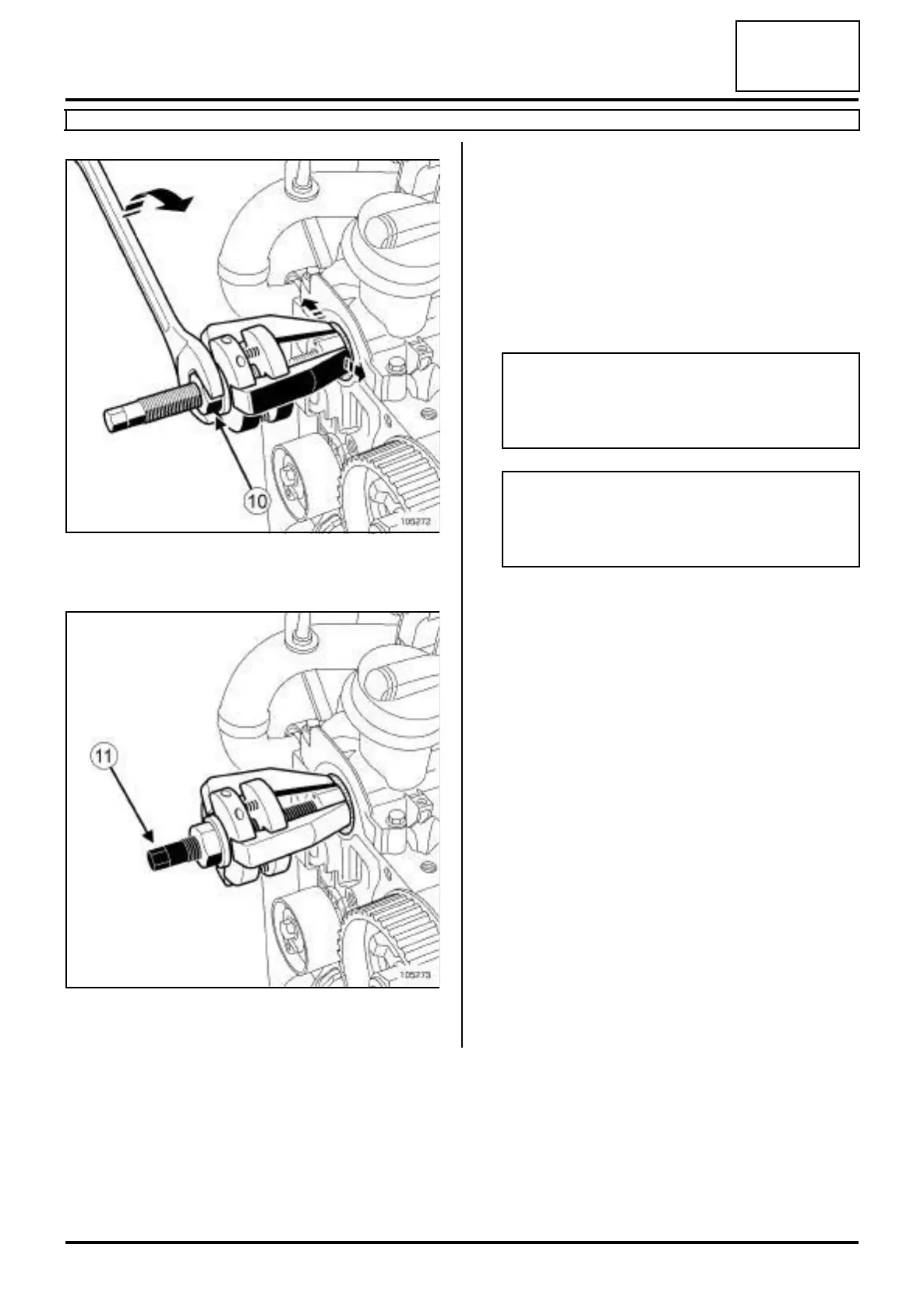

a Separate the claws by turning the bolt (10) clockwise
using an open-jawed spanner.
a Remove the camshaft seal by turning the bolt (11)
clockwise.
REFITTING
I - REFITTING PREPARATION OPERATION
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consuma-
bles - Products) to clean and degrease:
- the camshaft seal housing in the cylinder head,
- the camshaft seal mating face on the camshaft.
a parts always to be replaced: Camshaft seal on
timing end.
a parts always to be replaced: camshaft timing
sprocket nut.
a parts always to be replaced: camshaft timing
sprocket stud (if loosened).
105272
105273
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
