11A-64
TOP AND FRONT OF ENGINE
Camshaft seal, timing end: Removal - Refitting
K9K
11A
II - REFITTING OPERATION FOR PART
CONCERNED

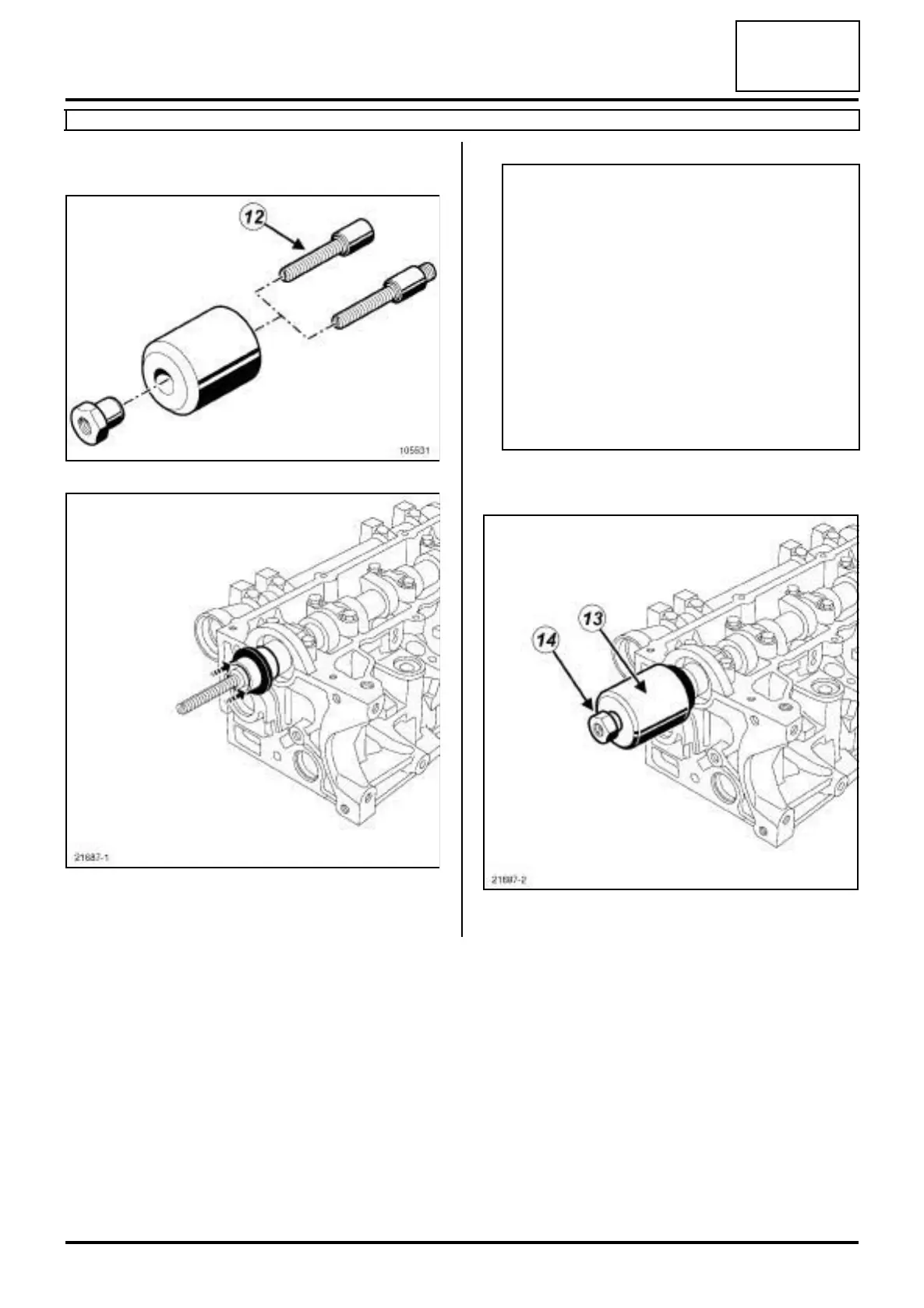

a Screw the stud (12) of theonto the camshaft.
a Fit a new camshaft seal on the camshaft.
1 - First fitting of the camshaft seal
a Fit the cover (13) and the collar nut (14) of the.
105531
21687-1
Note:
For camshaft seals delivered fitted to a protective
sleeve:
- do not remove the camshaft seal from its pro-
tective sleeve,
-fit the sleeve fitted with the camshaft seal to the
camshaft,
- push the protective sleeve towards the cylinder
head until the camshaft seal reaches its limit on
the cylinder head,
-fit the seal on the camshaft by following the rec-
ommendations below.
21687-2
