12A-10
FUEL MIXTURE
Air flowmeter: Removal - Refitting
K9K, and 796
12A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the engine cover.

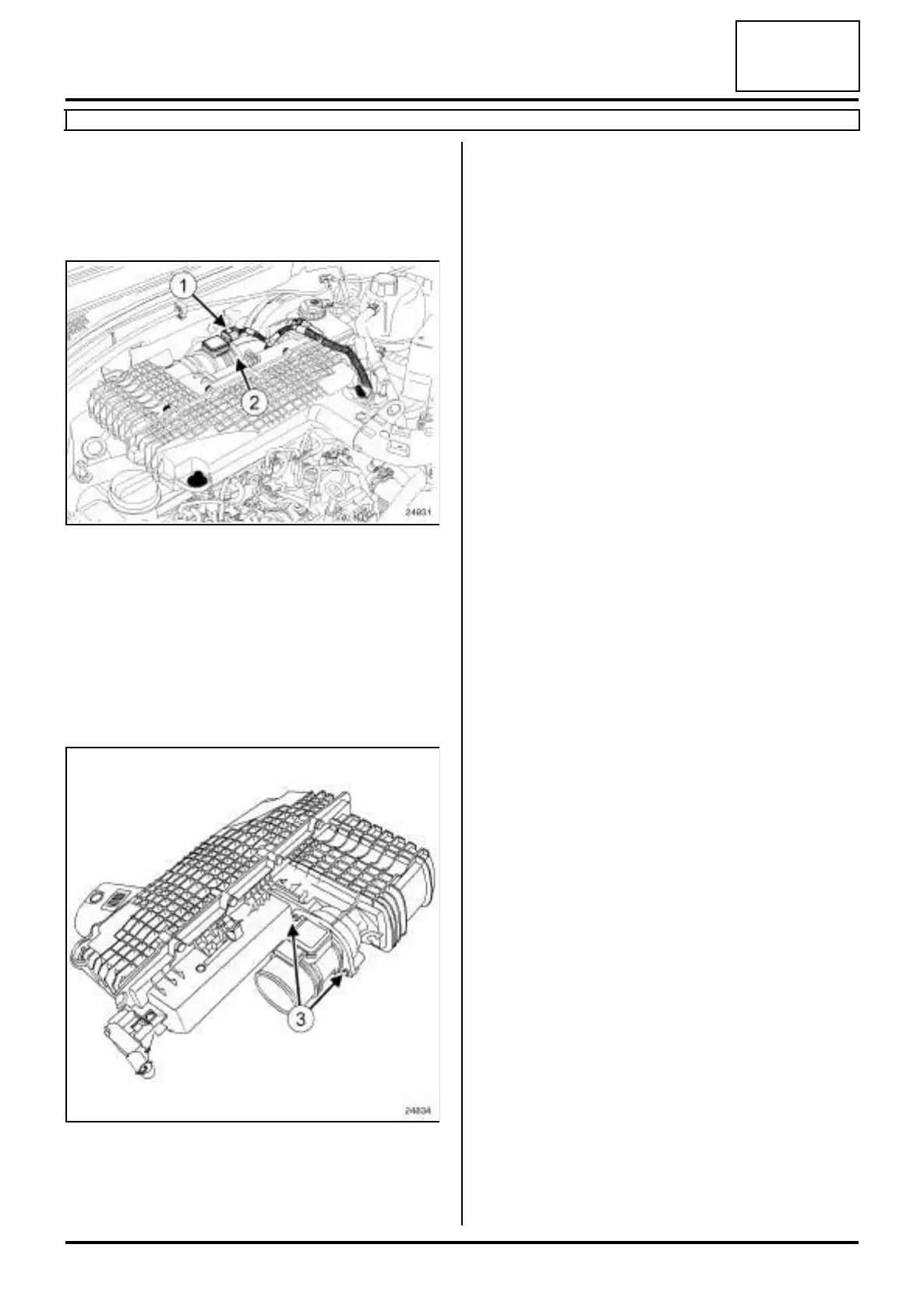

a Disconnect the air flowmeter connector (1) .
a Undo the clip (2) from the air flowmeter outlet duct.
a Remove the air flowmeter outlet air duct.
a Remove the air flowmeter outlet air duct.
II - REMOVAL OPERATION FOR PART
CONCERNED
a Remove:
-the air flowmeter (3) bolts on the air filter box,
-the air flowmeter,
- the air flowmeter seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the air flowmeter seal on the air filter
unit.
II - REFITTING OPERATION FOR PART
CONCERNED
a Refit:
-a new air flowmeter seal on the air filter box,
- the air flowmeter,
- the air flowmeter bolts.
III - FINAL OPERATION
a Refit:
- the air flowmeter outlet air duct,
- the air flowmeter outlet air duct clip.
a Connect the air flowmeter connector.
a Refit the engine cover.
24831
24834
