13B-10
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 796
13B

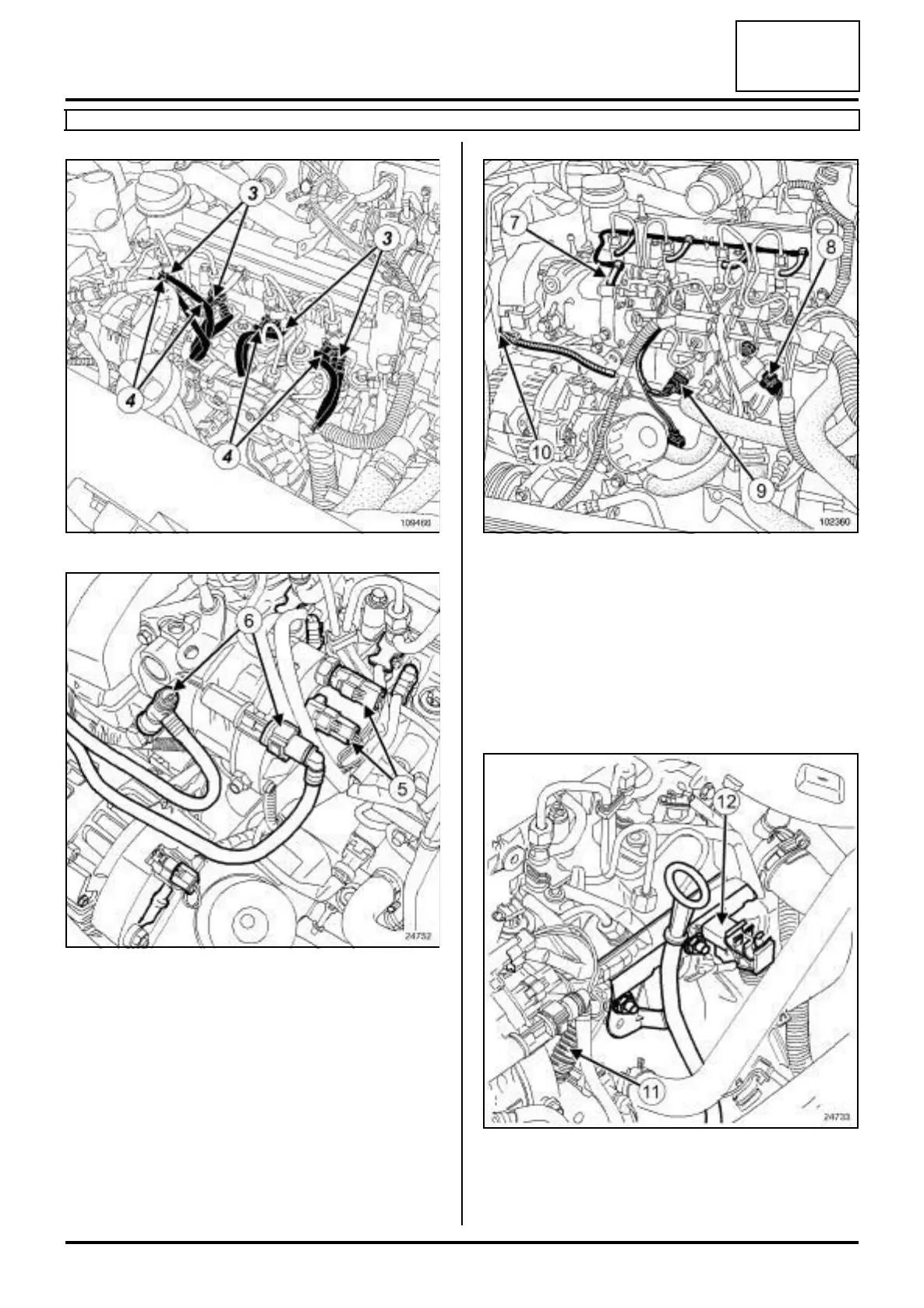

a Disconnect:
-the heater plugs (3) ,
-the injectors (4) ,
-the connectors from the high pressure pump (5) .
a Clean the diesel supply and return pipes (see Diesel
injection: Precautions for the repair) .
a Disconnect the diesel supply and return pipes (6) .
a Fit blanking plugs into the openings.
a Disconnect:
- the fuel return pipe (7) connecting the injectors to
the high-pressure pump,
- the injector rail pressure sensor (8) ,
- the accelerometer (9) ,
- the camshaft position sensor (10) .
a Unclamp the engine wiring (11) and move it to one
side.
a Remove the channel (12) located on the injector rail.
109466
24752
102360
24733
