13B-12
DIESEL INJECTION
High pressure pump: Removal - Refitting
K9K, and 796
13B

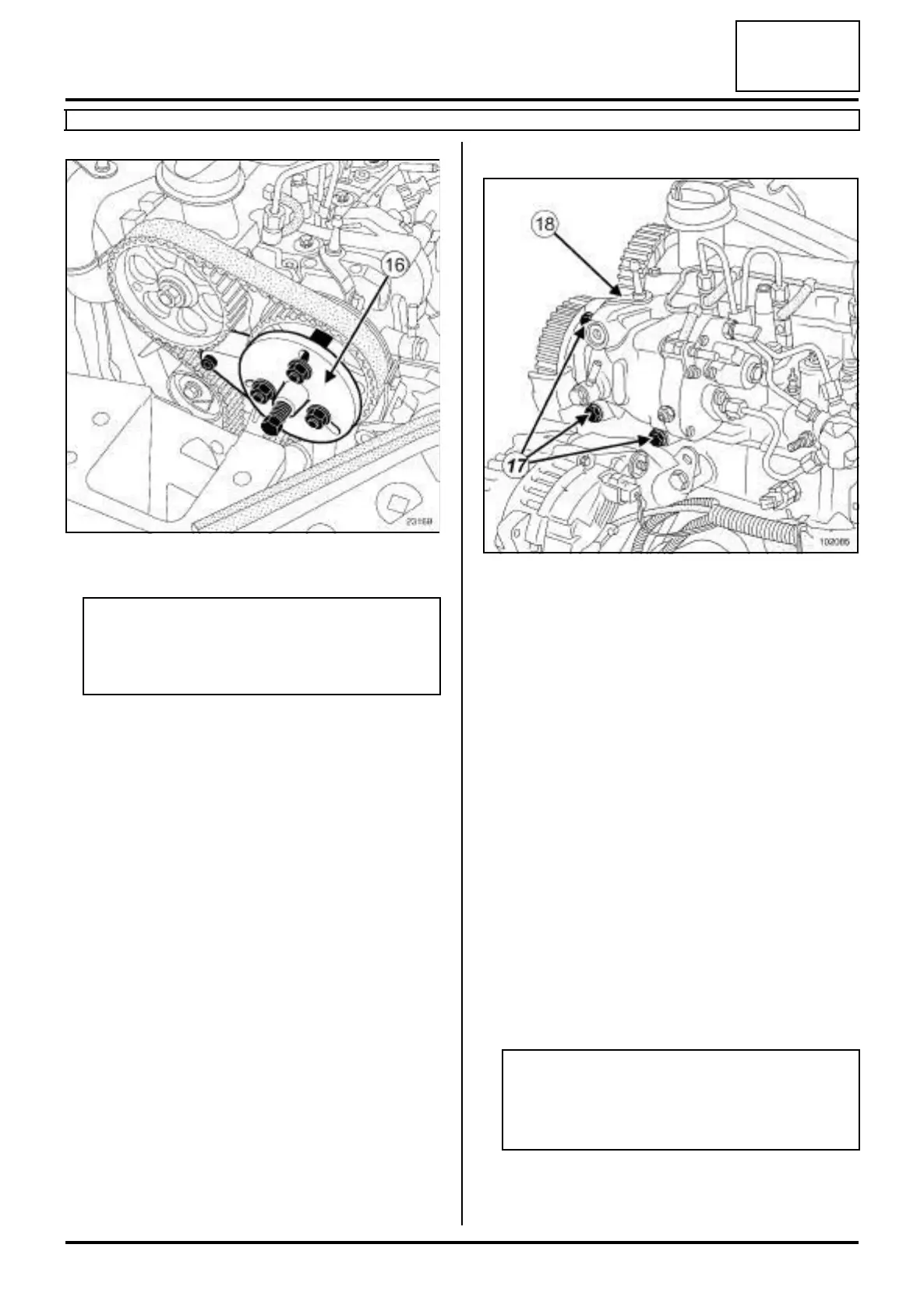

a Position the (16) fitted with the.
II - REMOVAL OPERATION
a Remove:
- the high pressure pump bolts (17) ,
- the bracket (18) from the engine cover.
a Screw the pushrod of the tooluntil the high pressure
pump becomes detached.
a Remove:
- the high pressure pump,
- the.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check for an index pin on the high pressure pump
shaft.
II - REFITTING OPERATION
a Refit the high pressure pump on the cylinder head
by inserting it into the high pressure pump pulley.
a Refit the engine cover bracket.
a Fit the high pressure pump bolts without tightening
them.
23169
WARNING
Ensure that the tool pushrod is correctly oriented
and is pressing against the high pressure pump
shaft.
102085
Note:
Check that the high pressure pump shaft is cor-
rectly orientated in relation to the high pressure
pump pulley.
