13B-23
DIESEL INJECTION
High pressure pipe between rail and injector: Removal - Refitting
K9K
13B

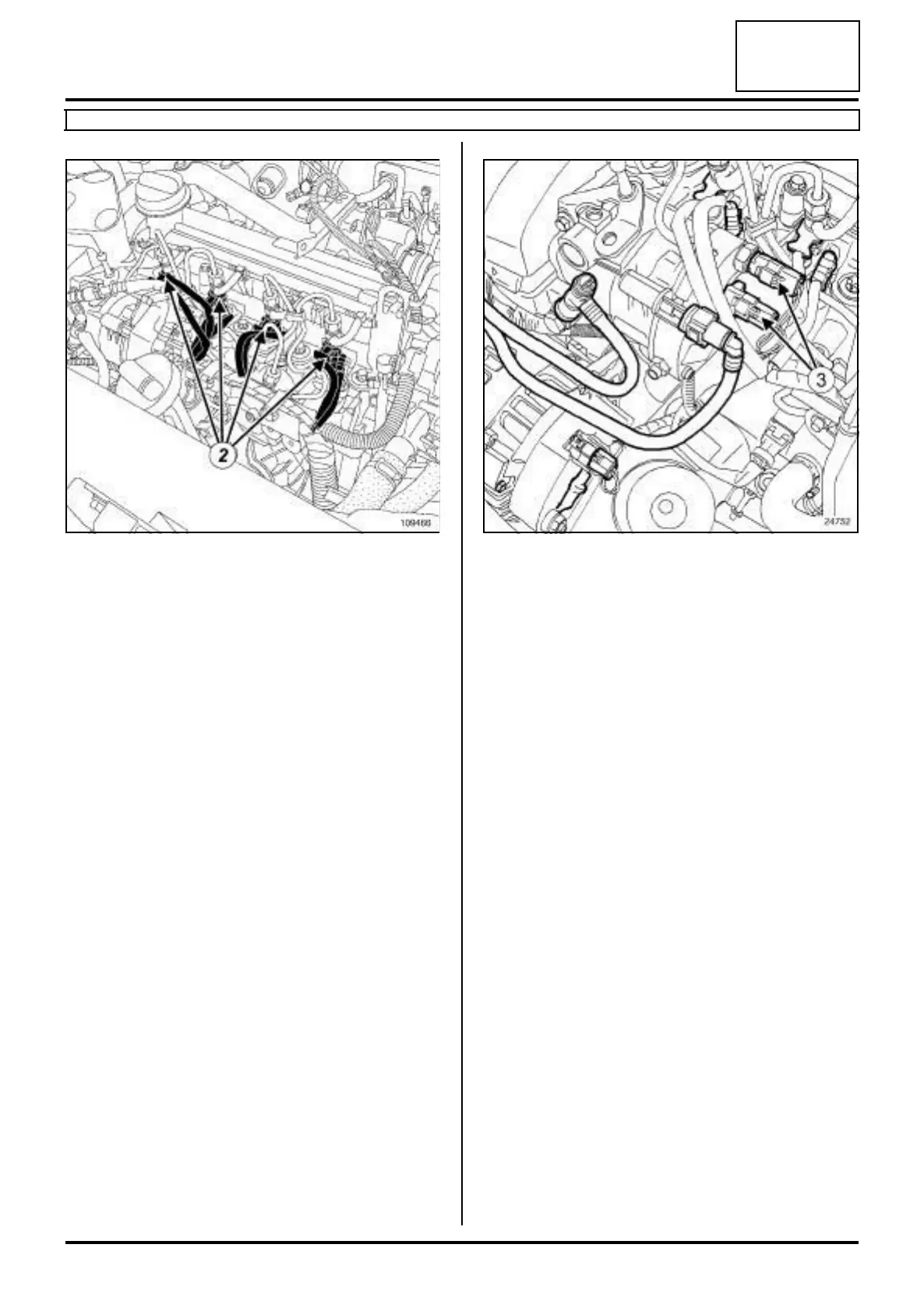

a Disconnect the following connectors (2) :
-the heater plugs,
-the injectors.
a Disconnect the high pressure pump connectors (3) .
a Remove the bolts mounting the neck onto the injec-
tor rail.
a Move the wiring to one side with the neck on the
side.
a Remove the clips connecting the high pressure
pipes.
a Clean the high pressure pipe unions between the rail
and the injectors (see Diesel injection: Precau-
tions for the repair) .
II - REMOVAL OPERATION
a Undo:
- the high pressure nut at the injector end,
- the high pressure pipe nut at the injector rail end.
a Remove the pipe and discard it.
a Fit blanking plugs into the openings.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: High pressure pipe
between the rail and injector.
109466 24752
