13B-24
DIESEL INJECTION
High pressure pipe between rail and injector: Removal - Refitting
K9K
13B
a
a If replacing the four high pressure pipes:
-loosen the injector rail nuts by a few turns (the in-
jector rail should be loose).
II - REFITTING OPERATION
a Remove the blanking plugs.
a Insert the high pressure pipe olive in the injector high
pressure inlet taper.
a Position the high pressure pipe olive in the high
pressure outlet taper of the injector rail.
a Finger tighten the high pressure pipe nuts, starting
with the nut at the injector end.
a Slightly pretighten the high pressure pipe nuts.
a Mount a new clip provided with the new high pres-
sure pipe.
a If replacing the four high pressure pipes, torque
tighten the injector rail nuts (28 N.m).
a Torque tighten in order the « pump - rail » high
pressure pipe nuts (28 N.m) :
- injectors end,
- on the injector rail end.
III - FINAL OPERATION
a Refit the neck on the injector rail.
a Connect the connectors of:
- the injectors,
- the heater plugs.
a Insert the dipstick.
a Refit the dipstick guide.
a Torque tighten the dipstick guide and filler neck
nuts on the high pressure rail (21 N.m).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
a Prime the diesel circuit using the priming pump.
a Check the high pressure circuit (see 13B, Diesel in-
jection, High pressure pipe: Check, page 13B-18)
.
a Refit:
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) .
- the engine cover,

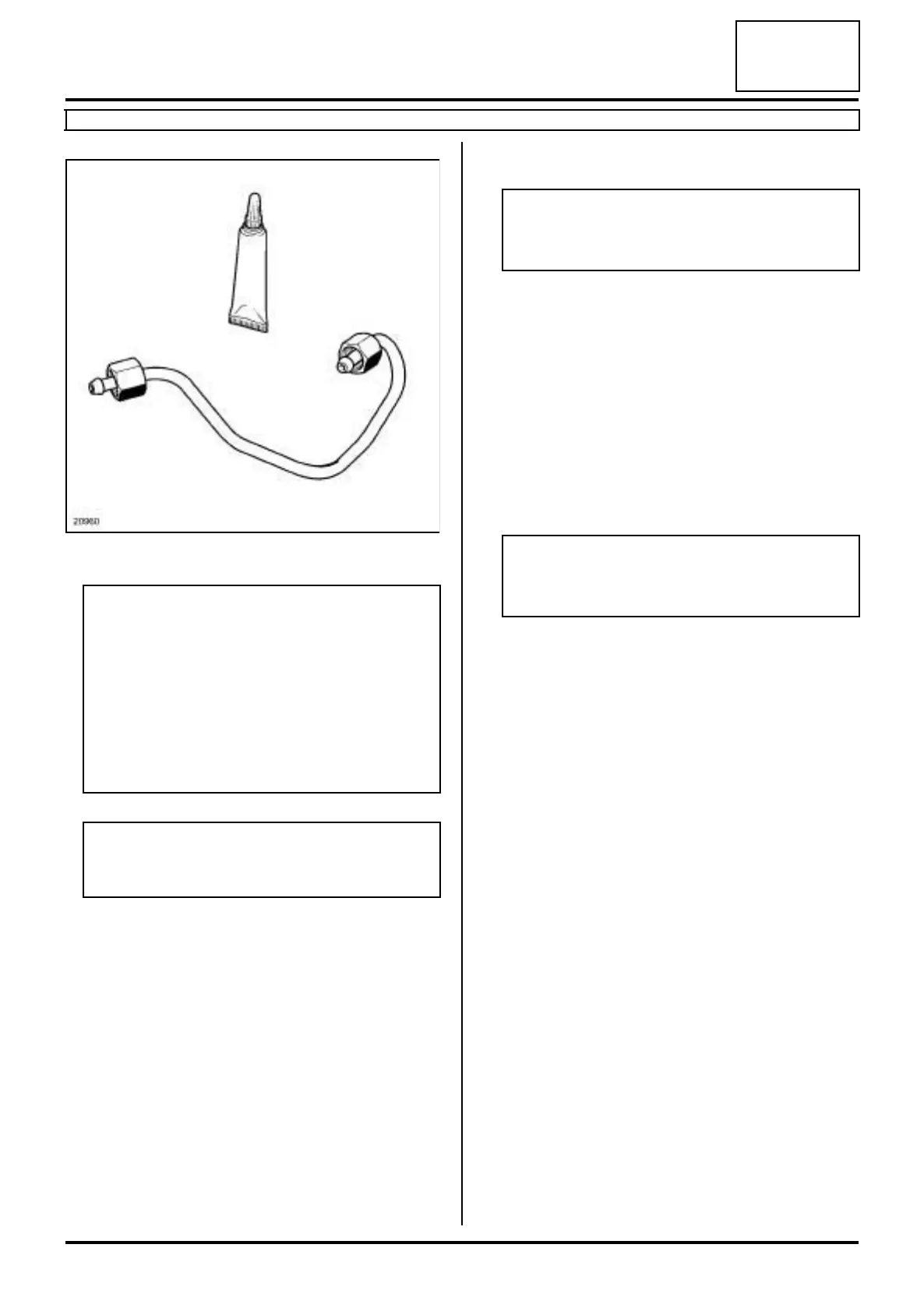

20960
WARNING
Before fitting a new high pressure pipe, lightly
lubricate the nut threads with oil from the applica-
tor provided with the new part.
Be careful not to allow oil into the high pressure
pipe.
Do not lubricate high pressure pipes supplied
without an applicator, as these high pressure
pipes are self-lubricating.
WARNING
Do not remove the blanking plugs from each
component until the last moment.
Note:
The assembly order of the « rail-injector » high
pressure pipes is not important.
Note:
Tighten each pipe fully before moving on to the
next pipe.
