16A-4
STARTING - CHARGING
Alternator: Removal - Refitting
K4M, and POWER ASSISTED STEERING, and AIR CONDITIONING
16A
II - REMOVAL OPERATION

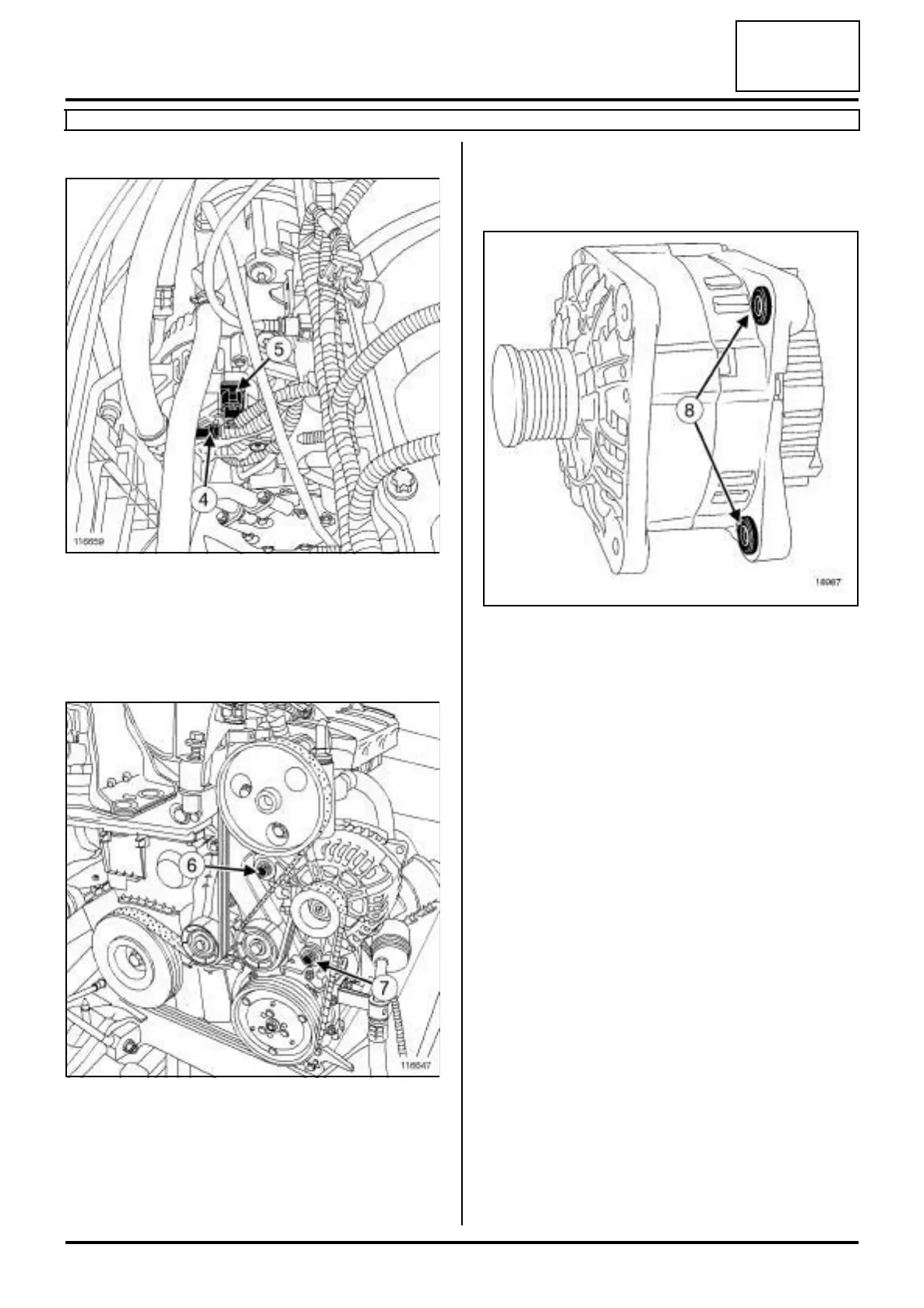

a Remove:
-the alternator lead nut,
-the alternator lead (4) .
a Disconnect the alternator connector (5) .
a Remove the alternator upper bolt (6) .
a Loosen the alternator lower bolt (7) .
a Move the alternator away from the multifunction sup-
port using a screwdriver.
a Remove the alternator and its lower mounting bolt.
REFITTING
I - REFITTING PREPARATION OPERATION
a Push the rings (8) to make fitting easier.
II - REFITTING OPERATION
a Refit the alternator.
a Torque tighten the alternator bolts (21 N.m).
a Connect the connector to the alternator.
a Refit:
- the lead to the alternator,
- the alternator lead nut.
a Torque tighten the alternator lead nut (14 N.m).
III - FINAL OPERATION
a Slide the « engine cooling fan - cooling radiator -
condenser » assembly to the right and fit it in its low-
er mountings.
a Refit the upper mountings of the engine cooling fan
assembly (see 19A, Cooling, Engine cooling fan
assembly: Removal - Refitting, page 19A-27) .
a Refit:
- the air deflector,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
116659
116647
18987
