16A-3
STARTING - CHARGING
Alternator: Removal - Refitting
K4M, and POWER ASSISTED STEERING, and AIR CONDITIONING
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front bumper (see Front bumper: Removal -
Refitting) (55A, Exterior protection),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .

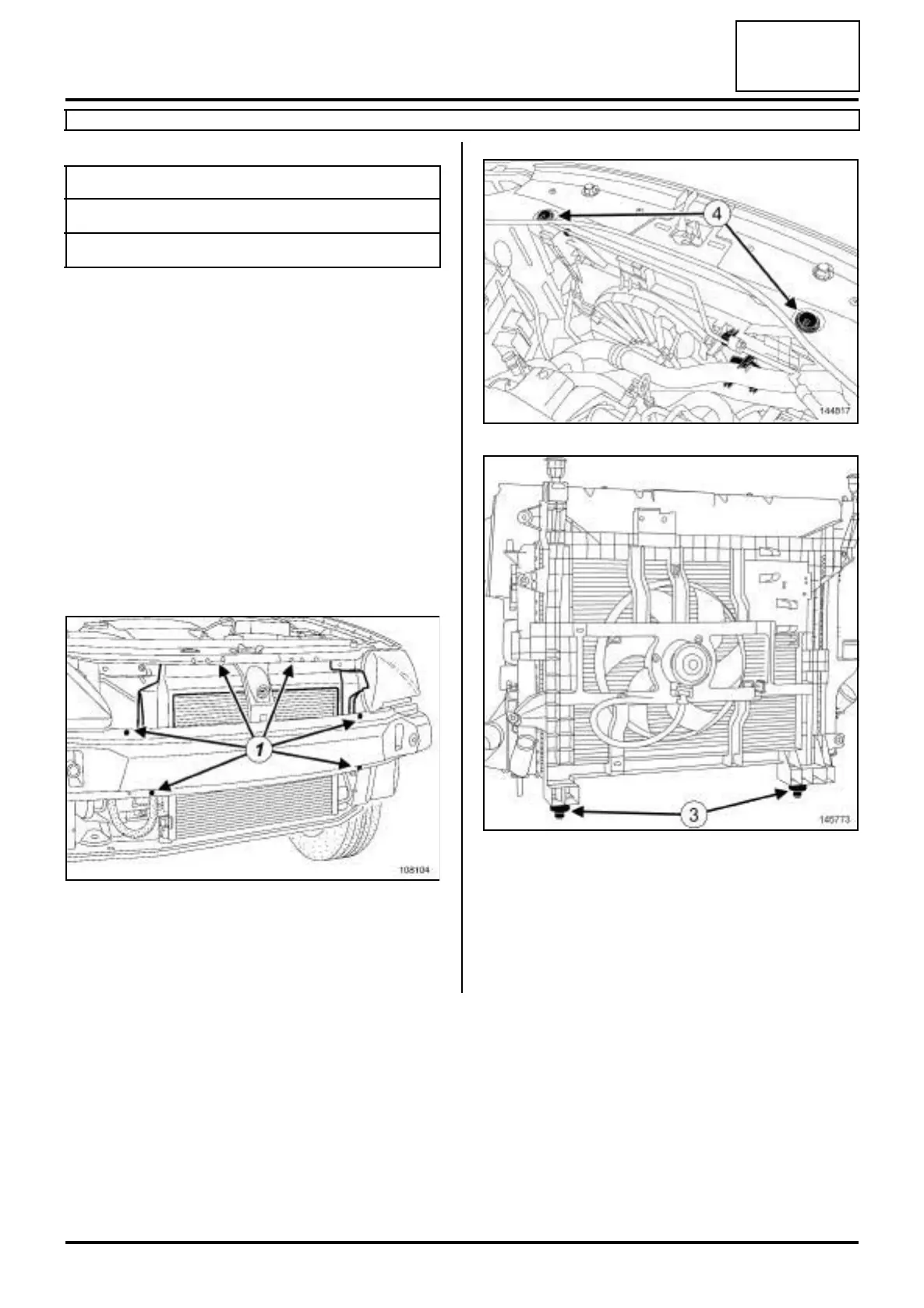

a Remove:
-the air deflector mounting pins (1) ,
-the air deflector.
a Remove the upper mountings (4) from the engine
cooling fan assembly (see 19A, Cooling, Engine
cooling fan assembly: Removal - Refitting, page
19A-27) .
a Extract the « engine cooling fan - cooling radiator -
condenser » assembly from its lower mountings (3)
and slide it to the left.
Tightening torquesm
alternator bolts 21 N.m
alternator lead nut 14 N.m
108104
144817
145773
