16A-6
STARTING - CHARGING
Alternator: Removal - Refitting
K4M, and STANDARD HEATING RECIRCULATION
16A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .
a

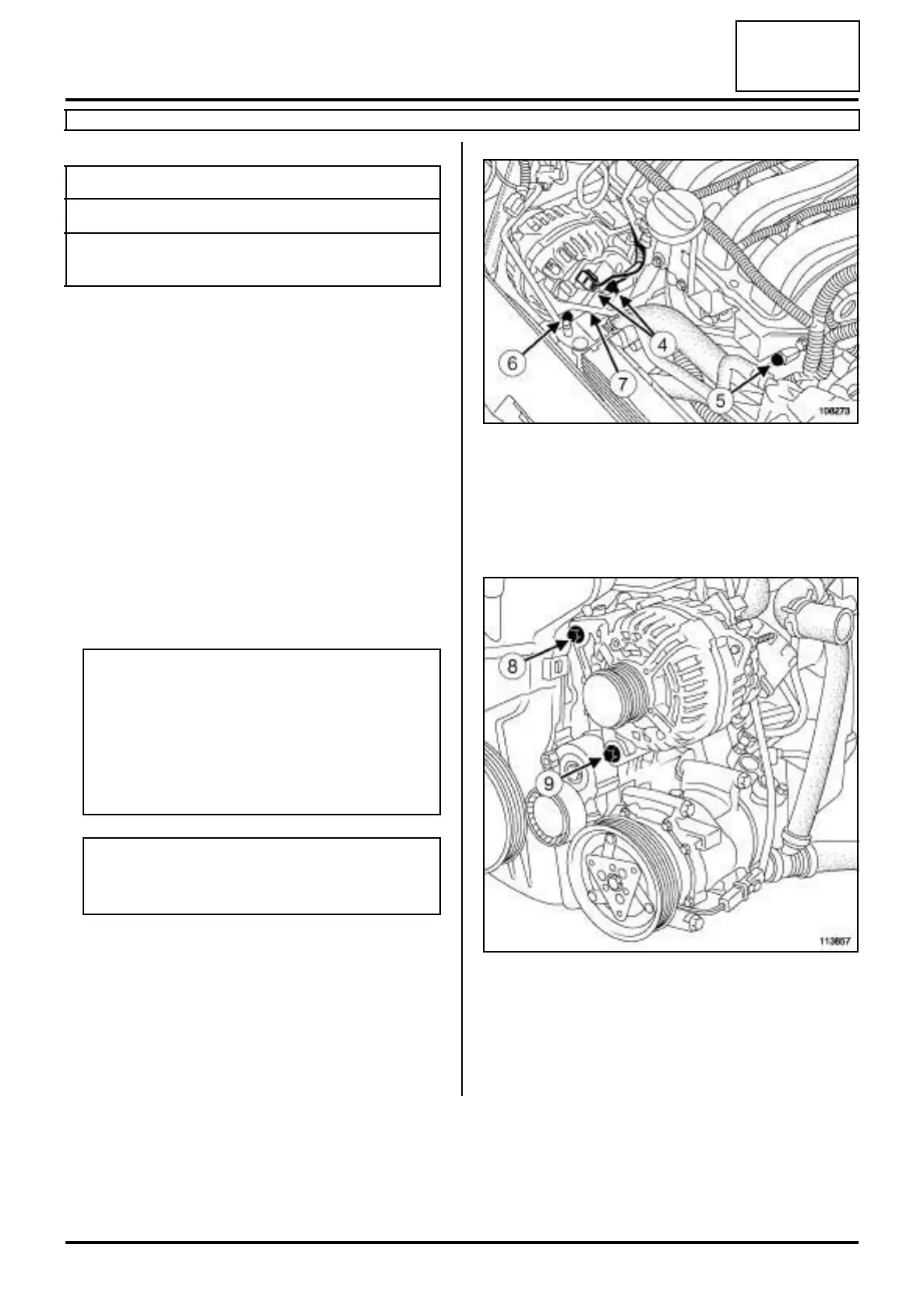

a Disconnect the fuel supply pipe union (3) on the in-
jector rail.
a Disconnect the alternator's electrical connections (4)
.
a Move aside the alternator wiring.
II - REMOVAL OPERATION
a Remove the alternator upper bolt (8) .
a Loosen the alternator lower bolt (9) .
a Move the alternator away from the multifunction sup-
port using a screwdriver.
a Remove the alternator with its lower bolt upwards.
Tightening torquesm
alternator bolts 21 N.m
positive terminal nut on
the alternator
14 N.m
IMPORTANT
During this operation, be sure to:
-refrain from smoking or bringing red hot objects
close to the working area,
-be careful of fuel splashes when disconnecting
the union.
WARNING
To avoid any corrosion or damage, protect the
areas on which fuel is likely to run.
108273
113857
