Renault Duster 2007 - Page 281

16A-11
STARTING - CHARGING
Starter: Removal - Refitting
K4M
16A
II - REMOVAL OPERATION

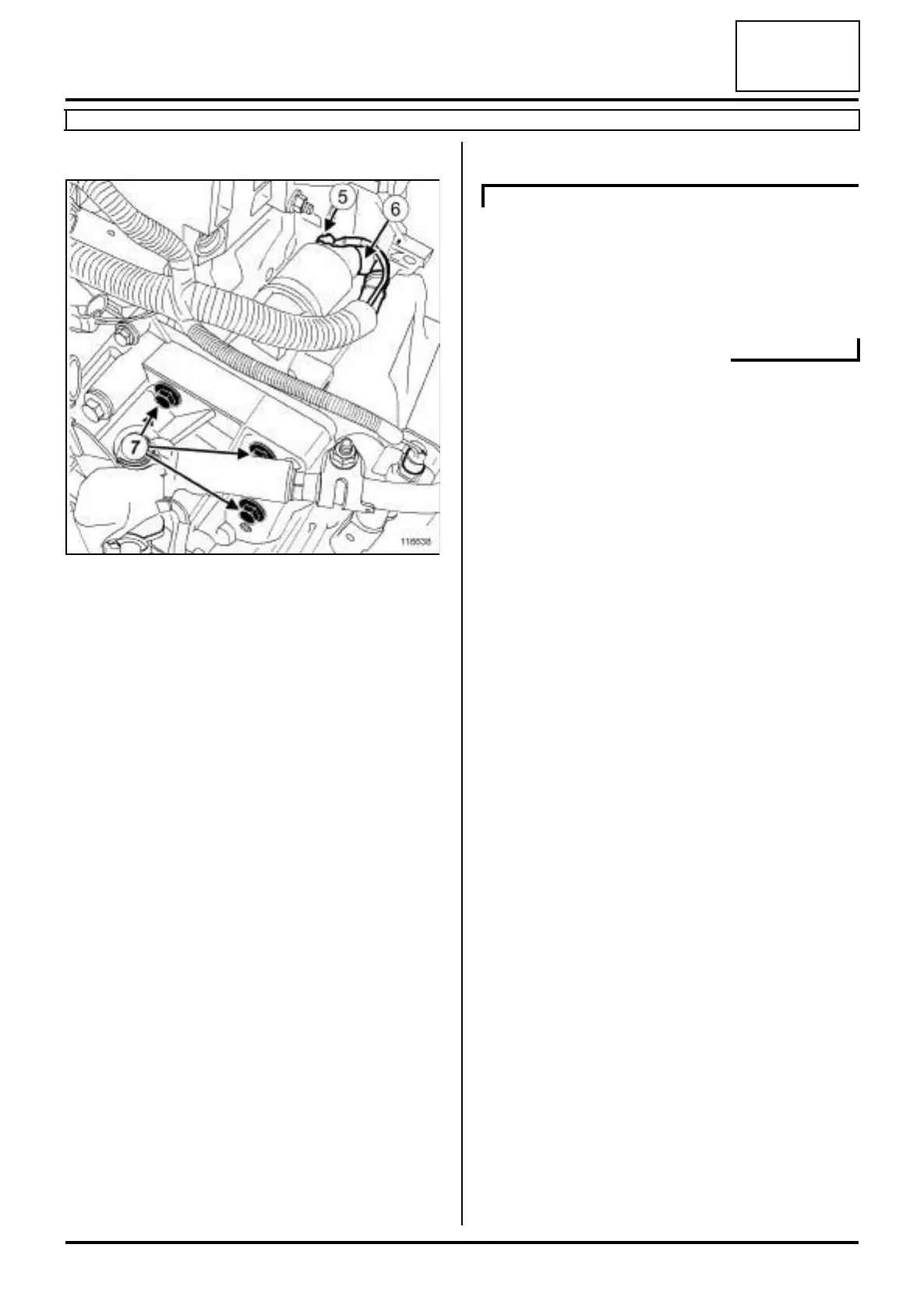

a Remove:
-the nut (5) on the starter solenoid lead,
-the nut (6) on the starter lead,
-the starter bolts (7) ,
-the starter from underneath the vehicle.
REFITTING
I - REFITTING PREPARATION OPERATION
a Check that the centring dowel is in place.
II - REFITTING OPERATION
a Refit:
-the starter from underneath the vehicle,
-the starter bolts.
a Torque tighten the starter bolts (44 N.m).
a Refit:
-the starter leads,
-the starter lead nut,
-the nut on the starter solenoid lead.
a Torque tighten:
-the starter lead nut (8 N.m),
-the nut on the starter solenoid lead (5 N.m).
III - FINAL OPERATION
a Clip:
-the gearbox control cable sleeve stops on the gear-
box,
- the control cables onto the gearbox.
a Refit the air resonator (see 12A, Fuel mixture, Air
resonator: Removal - Refitting, page 12A-2) .
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
