19A-14
COOLING
Coolant pump: Removal - Refitting
K9K, and 796
19A

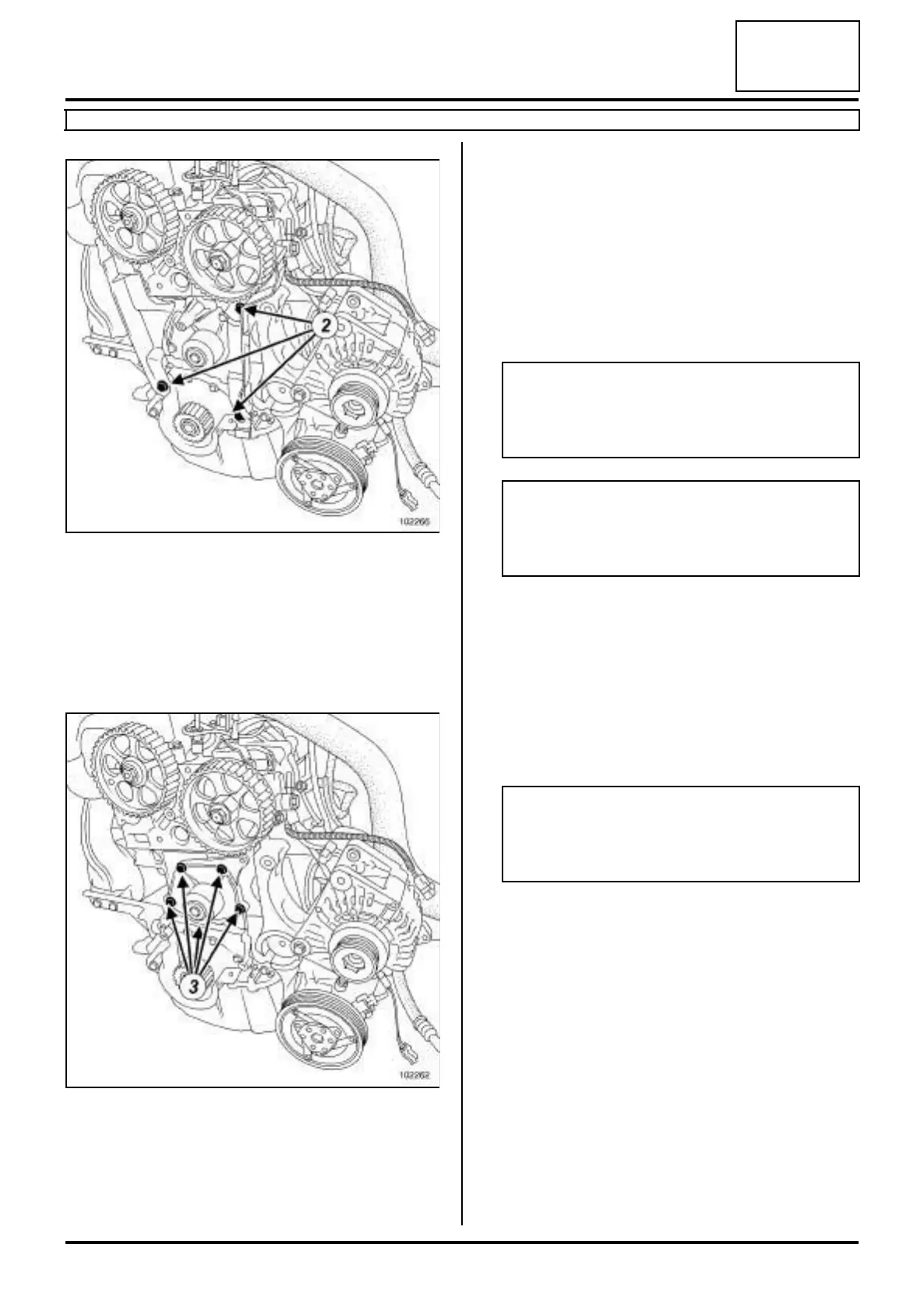

a Remove:
-the inner timing cover bolts (2) ,
-the inner timing cover.
II - REMOVAL OPERATION
a Remove:
-the coolant pump bolts (3) ,
-the coolant pump,
-the coolant pump seal.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: coolant pump seal.
a Use SURFACE CLEANER (see ) (04B, Consuma-
bles - Products) to clean and degrease:
- the coolant pump sealing face if it is to be reused,
- the cylinder block gasket face.
a Apply SUPER CLEANER FOR JOINT FACES (see
Vehicle: Parts and consumables for the repair)
(04B, Consumables - Products) to the areas to be
cleaned.
a Leave for approximately ten minutes.
a Remove the residue using a wooden spatula.
a Complete the cleaning of the parts using an abrasive
pad.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to degrease the joint faces.
a Always replace the coolant pump seal.
102266
102262
WARNING
Do not scrape the joint faces of the aluminium,
any damage caused to the joint face will result in
a risk of leaks.
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
WARNING
To ensure proper sealing, the gasket surfaces
must be clean, dry and not greasy (avoid any fin-
ger marks).
