Renault Duster 2007 - Page 342

19A-41
COOLING
Coolant temperature sensor: Removal - Refitting
K9K
19A
II - REMOVAL OPERATION

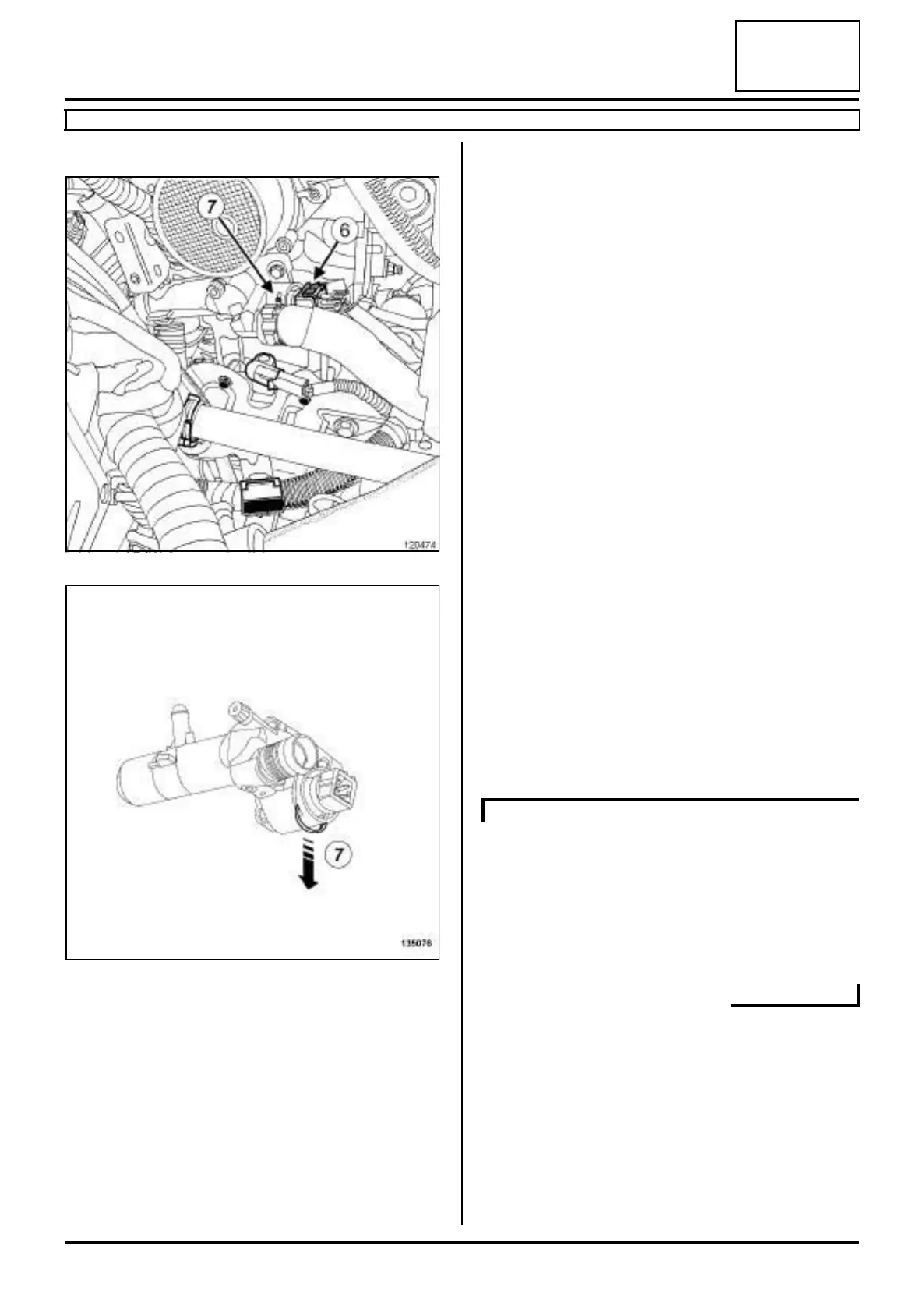

a Disconnect the coolant temperature sensor connec-
tor (6) .
a Remove:
-the coolant temperature sensor retaining clip (7) ,
-the coolant temperature sensor,
-the coolant temperature sensor O-ring.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: coolant tempera-
ture sensor seal.
a Use SURFACE CLEANER (see ) to clean and de-
grease:
- the mating face of the coolant temperature sensor
if it is to be reused,
- the coolant outlet unit.
II - REFITTING OPERATION
a Refit:
-a new coolant temperature sensor seal on the cool-
ant temperature sensor,
- the coolant temperature sensor,
- the coolant temperature sensor clip.
a Connect the coolant temperature sensor connector.
III - FINAL OPERATION
a Position the air duct between the intercooler and the
EGR assembly.
a Connect:
- the air duct on the EGR assembly,
- the union to the vacuum pump.
a Connect the EGR solenoid valve pipe to the vacuum
pump.
a Clip on:
- the breather pipe from the gearbox,
- the EGR solenoid valve pipes.
a Position the expansion bottle.
a Torque tighten the expansion bottle nuts (8 N.m).
a Refit:
- the air filter unit (see 12A, Fuel mixture, Air filter
unit: Removal - Refitting, page 12A-6) ,
- the engine undertray,
- the engine undertray bolts,
- the engine cover.
120474
135076
K9K, and 796
