10A-10
ENGINE AND CYLINDER BLOCK ASSEMBLY
Lower cover: Removal - Refitting
K9K
10A

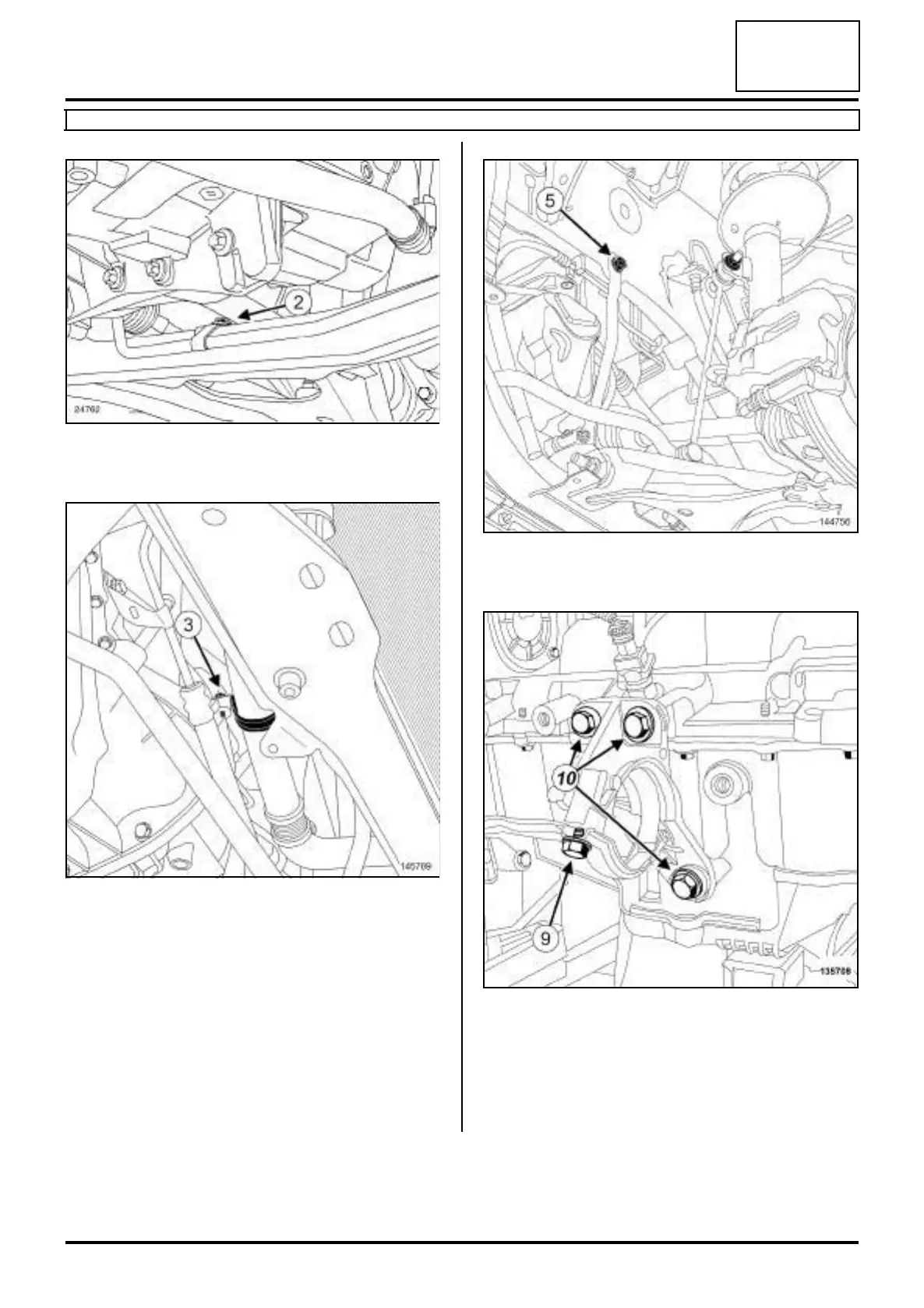

a Remove the power-assisted steering low pressure
pipe bolt (2) on the front axle subframe.
a Remove the cooling pipe support bolt (3) on the
sump.
a Remove the front axle subframe tie-rod upper bolts
(5) .
a Remove:
- the right-hand driveshaft flange bolt (9) on the relay
bearing,
- the bolts (10) from the relay bearing,
- the relay bearing.
