10A-11
ENGINE AND CYLINDER BLOCK ASSEMBLY
Lower cover: Removal - Refitting
K9K
10A

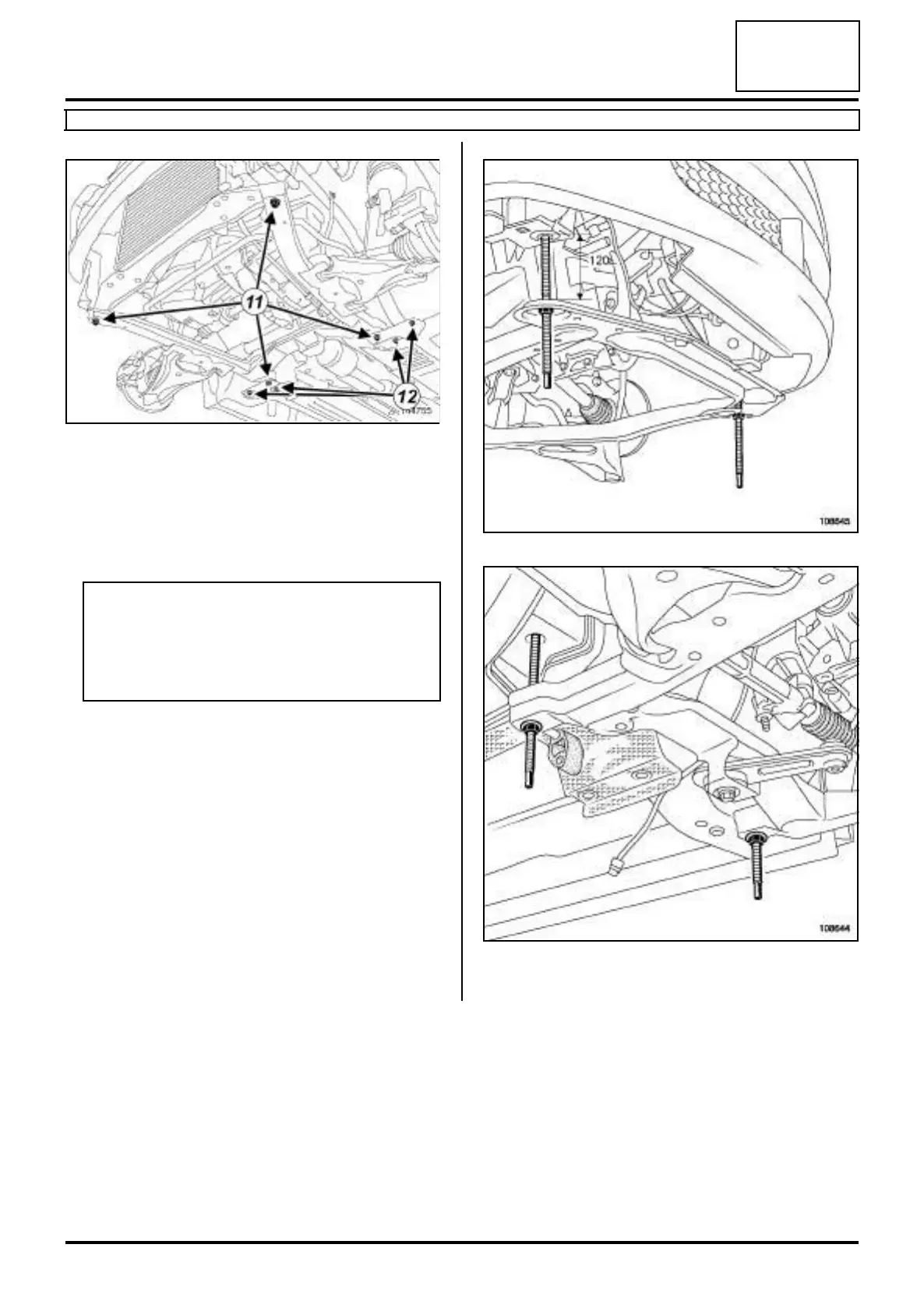

a Remove:
-the bracket bolts (12) ,
-one by one, the front axle subframe bolts (11) and
replace them in turn with the threaded rods of the
(Tav. 1747).
a Lower the front axle subframe 120 mm, gradually
loosening the nuts of the (Tav. 1747).
144755
Note:
Make sure the threaded rod of the (Tav. 1747) is
sufficiently screwed into the threaded hole and
that the nut of the tool is correctly resting on the
front axle subframe.
108645
108644
