19C-10
TANK
Fuel level sensor module: Removal - Refitting
K4M or K9K
19C

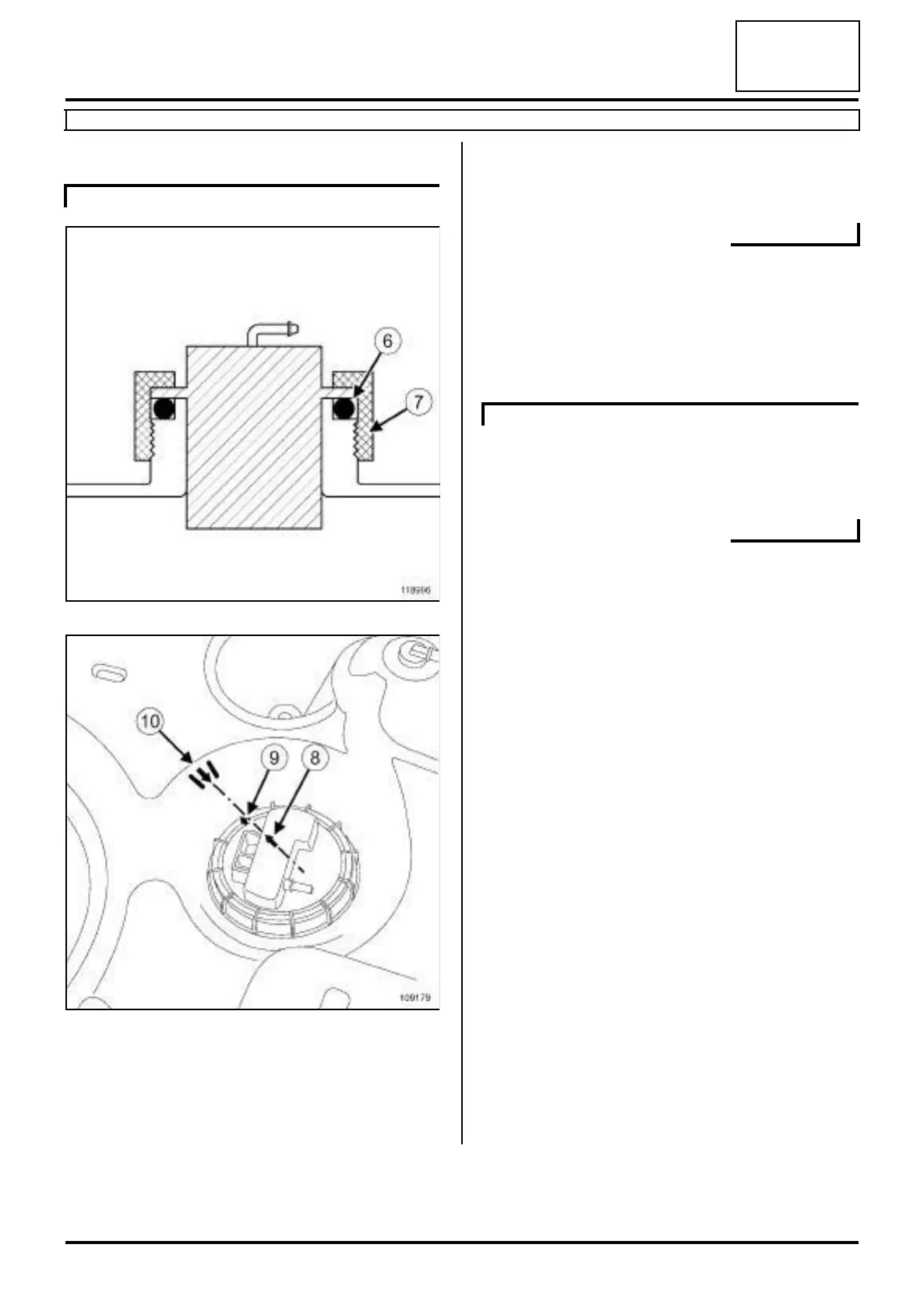

II - REFITTING OPERATION
a Position:
-the new seal (6) in the neck correctly,
-the fuel level sensor module on the fuel tank. A lug
on the fuel level sensor module and a recess in the
fuel tank ensure correct positioning in the fuel tank;
the mark (8) on the fuel level sensor module must
be positioned opposite the mark on the fuel tank
(10) .
a Press the fuel level sensor module by hand (to pre-
vent the seal from moving) and finger tighten the nut
on the fuel tank.
a Then use the tool (Mot. 1397) to tighten the nut of
the fuel level sensor module to the mark on the fuel
tank.
a Tighten the nut (7) until the mark (9) on the nut is lo-
cated opposite the mark (10) on the fuel tank using
the tool (Mot. 1397).
a Proceed in the reverse order to removal.
K4M
118996
109179
K4M
