19D-5
ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K9K
19D
II - REMOVAL OPERATION

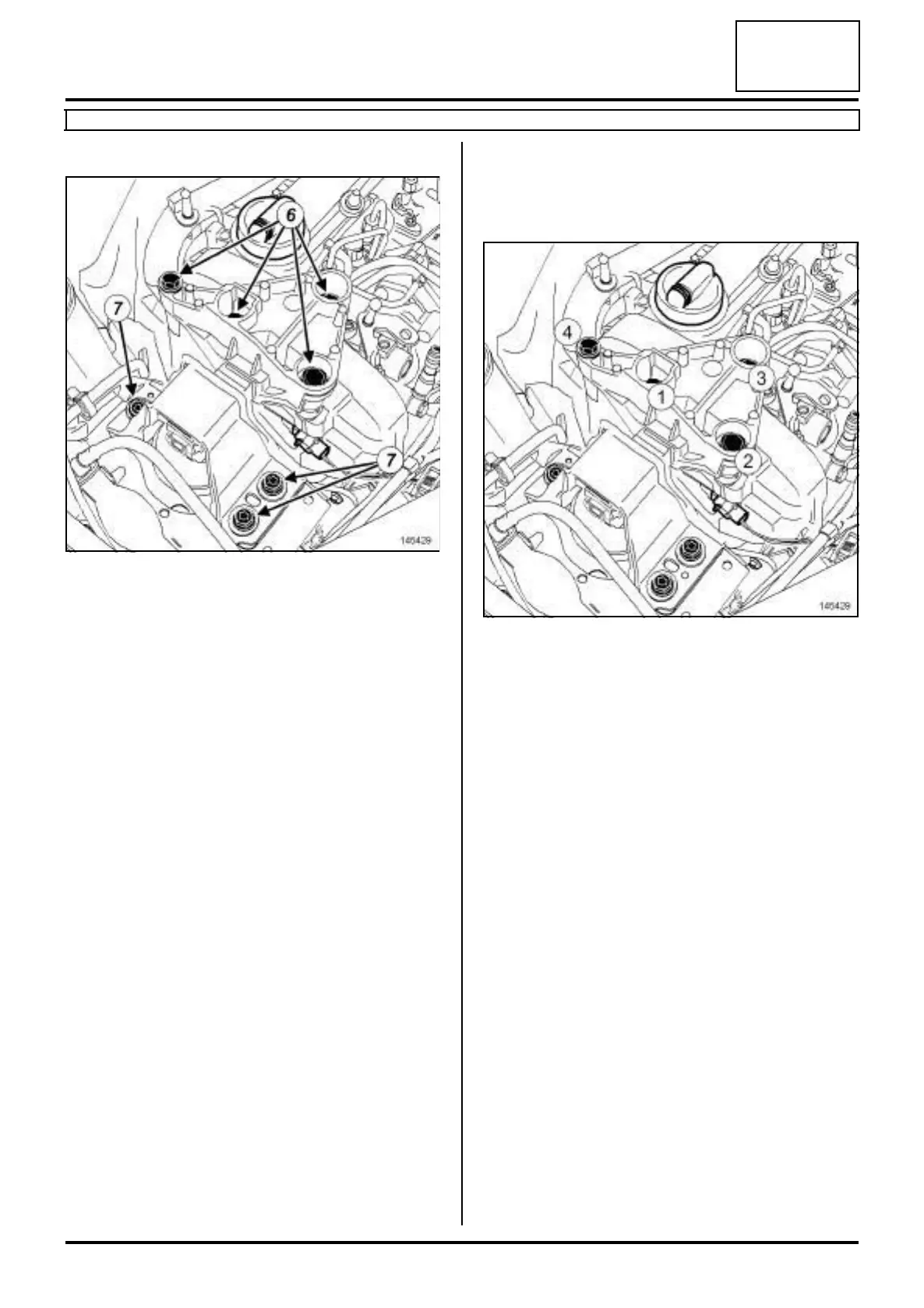

a Mark the position of the right-hand suspended en-
gine mounting on the body.
a Remove:
-the bolts (6) from the right-hand suspended engine
mounting on the engine,
-the right-hand suspended engine mounting bolts
(7) on the body,
-the right-hand suspended engine mounting.
REFITTING
I - REFITTING OPERATION
a Refit:
- the right-hand suspended engine mounting observ-
ing the marks made on the body during removal,
- the right-hand suspended engine mounting bolts
on the engine,
- the right-hand suspended engine mounting bolts
on the body.
a Torque tighten in order the right-hand suspended
engine mounting bolts on the engine (62 N.m).
a Torque tighten the right-hand suspended engine
mounting bolts on the body (62 N.m).
II - FINAL OPERATION
a Position the fuel pipes.
a Clip on the fuel pipes at (2) .
a Remove the blanking plugs.
a Connect the fuel pipe at (1) .
a Remove the engine support tool (Mot. 1453) and the
retaining strap.
a Refit the engine cover.
145429
145429
