ENGINE MOUNTING
Right-hand suspended engine mounting: Removal - Refitting
K4M
19D
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front engine cover.

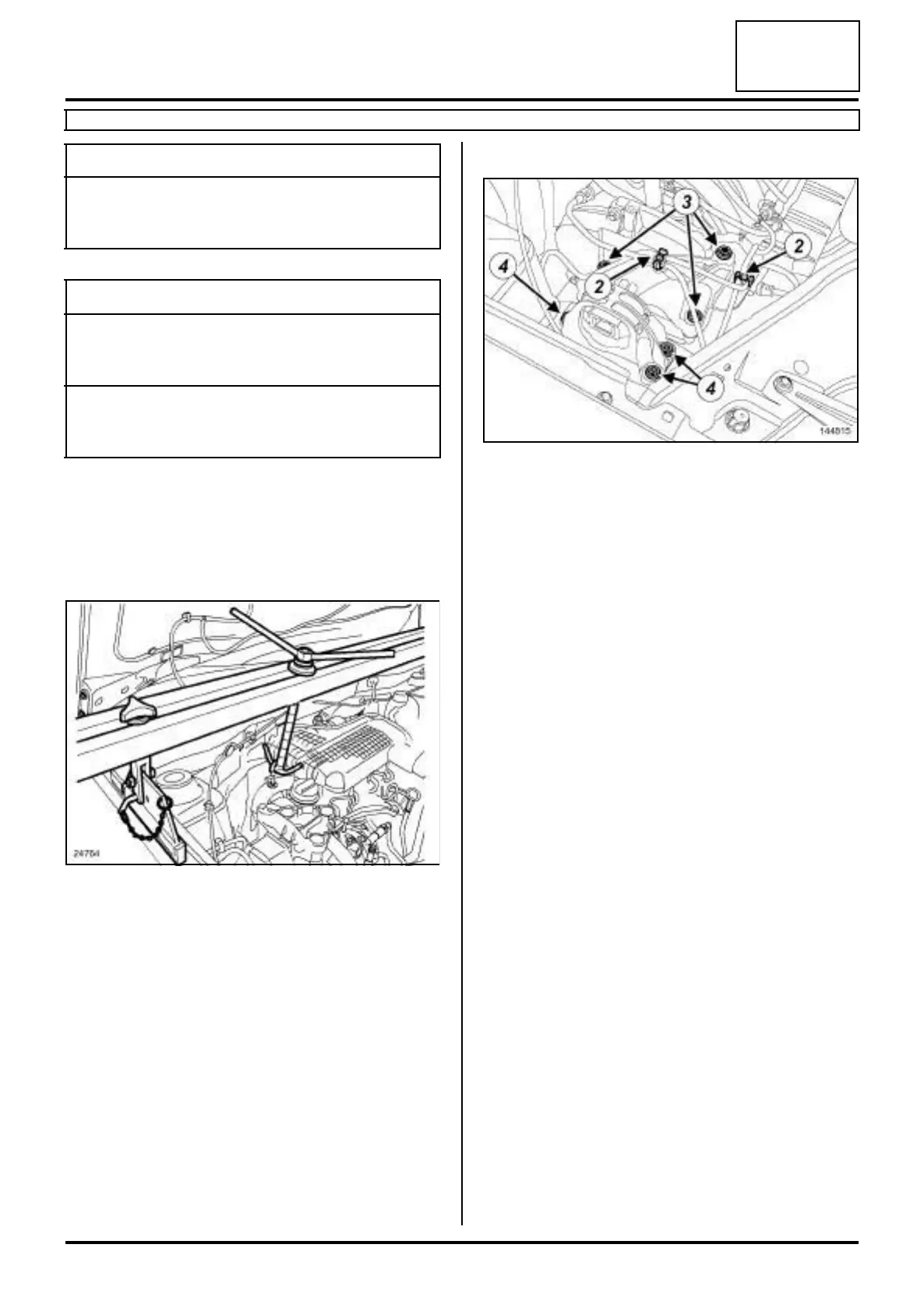

a Fit the engine support tool (Mot. 1453) with the re-
taining belt, taking the timing end lifting eye as an
anchoring point.
II - REMOVAL OPERATION
a Detach at (2) :
- the fuel supply pipe,
- the petrol vapour recirculation pipe.
a Mark the position of the right-hand suspended en-
gine mounting on the body.
a Remove:
- the bolts (3) from the right-hand suspended engine
mounting on the engine,
- the right-hand suspended engine mounting bolts
(4) on the body,
- the right-hand suspended engine mounting.
REFITTING
I - REFITTING OPERATION
a Refit:
- the right-hand suspended engine mounting observ-
ing the marks made on the body during removal,
- the right-hand suspended engine mounting bolts
on the engine,
- the right-hand suspended engine mounting bolts
on the body.
a Torque tighten:
- the right-hand suspended engine mounting
bolts on the engine (62 N.m),
- the right-hand suspended engine mounting
bolts on the body (62 N.m).
a Clip:
- the fuel supply pipe,
- the petrol vapour recirculation pipe.
Special tooling required
Mot. 1453 Engine anchorage support
with multiple adjustments and
retaining straps.
Tightening torquesm
right-hand suspended
engine mounting bolts
on the engine
62 N.m
right-hand suspended
engine mounting bolts
on the body
62 N.m
