21A-8
MANUAL GEARBOX
Manual gearbox: Removal - Refitting
K9K, and JR5
21A
a Remove the steering box bolts on the subframe.
a Attach the steering rack to the body.
a Remove:
-the lower engine tie-bar (see Lower engine tie-
bar: Removal - Refitting) (19D, Engine mount-
ing),
-the front axle subframe (see Front axle subframe:
Removal - Refitting) (31A, Front axle compo-
nents),
-the starter (see Starter: Removal - Refitting)
(16A, Starting - Charging).

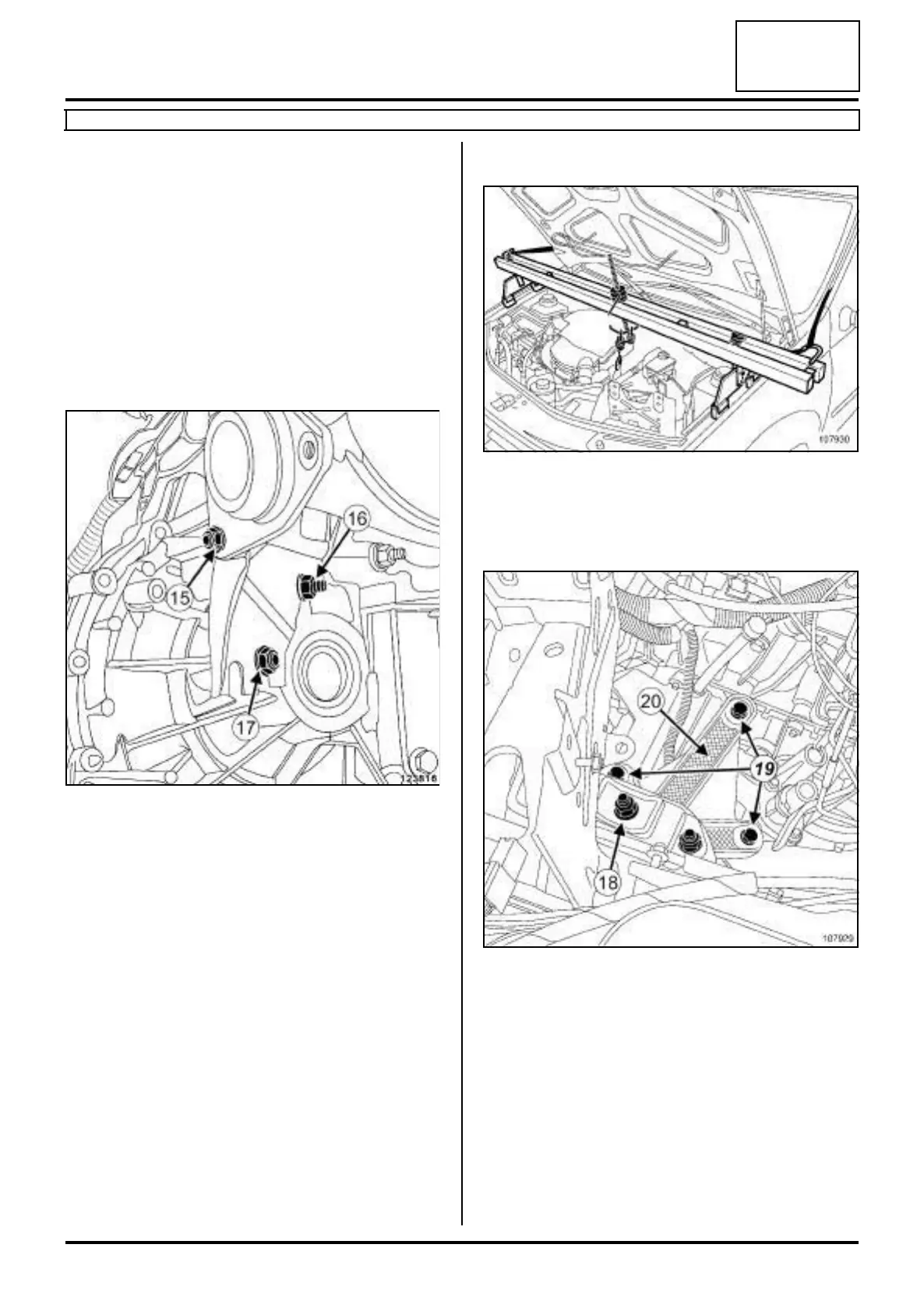

a Remove the bolt (15) from the catalytic converter
downstream strut.
a Undo:
-the nut (16) from the catalytic converter down-
stream strut,
-the bolt (17) of the catalytic converter downstream
strut.
a Remove the catalytic converter downstream strut.
II - REMOVAL OPERATION
a Fit the engine support tool (Mot. 1453) with the re-
taining belt, taking the flywheel end lifting eye as an
anchoring point.
a Remove:
-the suspended mounting nut (18) on the rubber
pad,
- the bolts (19) from the gearbox suspended mount-
ing,
- the gearbox suspended mounting (20) ,
- the gearbox upper bolts.
a Fit a component jack under the gearbox.
123816
107930
107929
