21A-7
MANUAL GEARBOX
Manual gearbox: Removal - Refitting
K9K, and JR5
21A

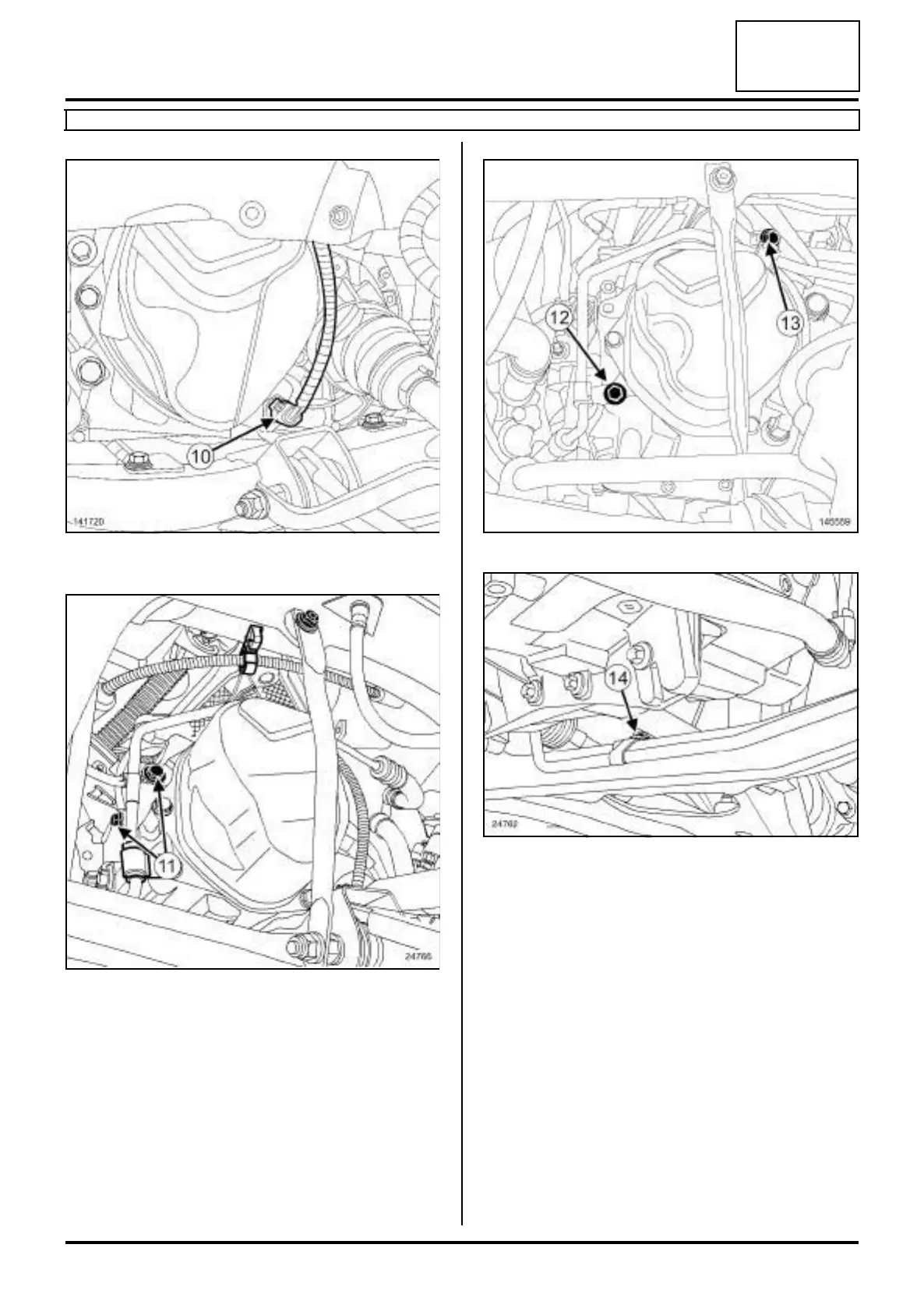

a Disconnect the reverse gear connector (10) .
a Remove the earth strap bolts (11) on the gearbox.
a Remove:
- the bolt (12) from the power-assisted steering pipe
on the gearbox,
- the bolt (13) from the power-assisted steering pipe
on the gearbox mounting,
- the bolt (14) from the power-assisted steering pipe
on the subframe.
2 - RIGHT-HAND SIDE OF VEHICLE
a Remove the front right-hand wheel arch side liner.
a Uncouple the front right-hand wheel driveshaft from
the gearbox (see 29A, Driveshafts, Front right-
hand driveshaft: Removal - Refitting, page 29A-
4) .
141720
24766
145559
24762
