21A-6
MANUAL GEARBOX
Manual gearbox: Removal - Refitting
K9K, and JR5
21A

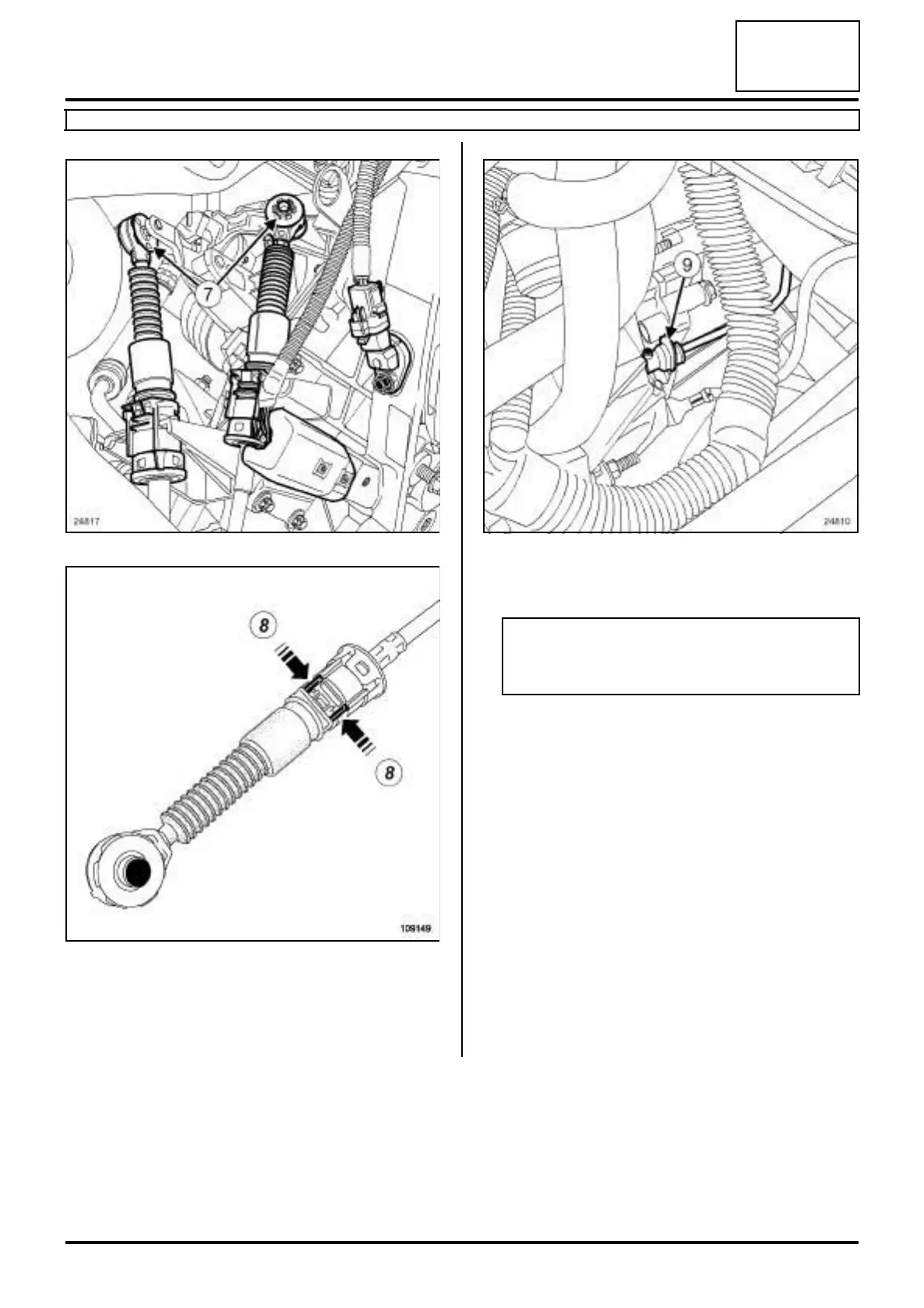

a Unclip:
-the gear control cables on the gearbox at (7) ,
-the gearbox control cable sleeve stops by pressing
at (8) .
a Press on the clip (9) and disconnect the clutch con-
trol pipe on the clutch slave cylinder.
a Recover the brake fluid in a container.
a Fit blanking plugs into openings.
a Remove the engine undertray.
a Drain the gearbox (see 21A, Manual gearbox,
Manual gearbox oils: Draining - Filling, page
21A-1) .
a Remove the front bumper (see Front bumper as-
sembly: Exploded view) .
1 - LEFT-HAND SIDE OF VEHICLE:
a Remove the front left-hand wheel arch side liner.
a Uncouple the front left-hand driveshaft from the
gearbox (see 29A, Driveshafts, Front left-hand
driveshaft: Removal - Refitting, page 29A-1) .
24817
109149
24810
WARNING
Do not pull the clip. If it is incorrectly handled in
any way, the pipe will need to be replaced.
