21A-23
MANUAL GEARBOX
5th gear sprockets and synchronisers: Removal - Refitting
JR5
21A
-the fifth idle gear fitted with its synchroniser ring (9)
,
-the idle gear supporting ring (10) ,
-the lock washer (11) .
a Refit the output shaft bolt, screwing it in a few turns.
a Fit:

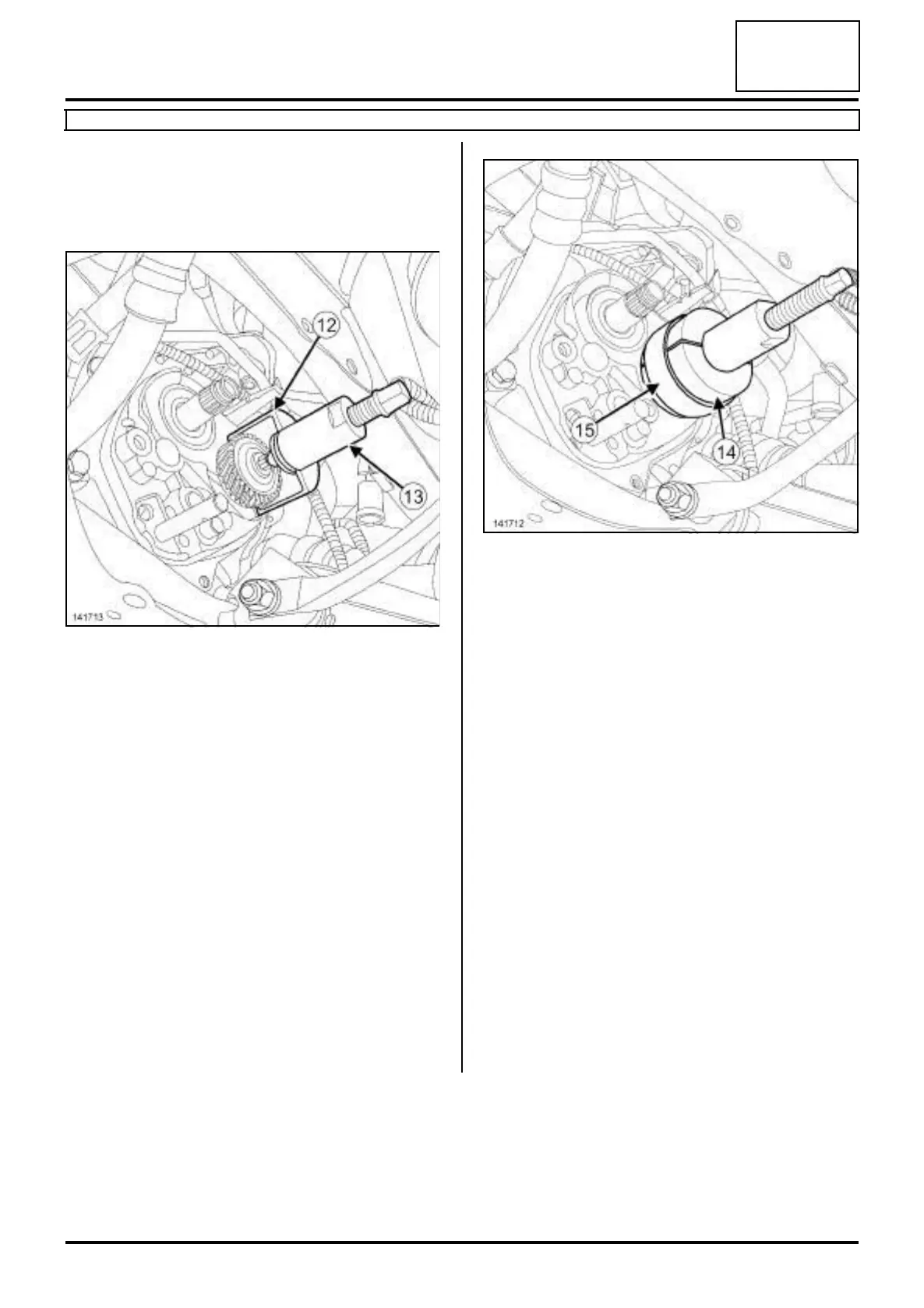

-a half-shellof the tool (12) under the fifth gear pin-
ion,
-the (13) on the half-shell of the tool.
a Fit the other half-shell (14) and the ringof the tool
(15) .
a Remove the fifth gear pinion.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace:
- the input shaft nut,
- the washer of the input shaft nut,
- the output shaft bolt,
- the pin of the fifth gear fork.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to clean the ends of the gearbox
shaft.
II - REFITTING OPERATION
a Put several drops of FRENETANCHE (see Vehi-
cle: Parts and consumables for the repair) (04B,
Consumables - Products) on the splines of the fifth
gear pinion.
141713
141712
