29A-13
DRIVESHAFTS
Front right-hand driveshaft gaiter, gearbox side: Removal - Refitting
JR5
29A
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Front right-hand
driveshaft gaiter, gearbox side.
a parts always to be replaced: gearbox side front
driveshaft seal locking ring.
a Always replace:
-the big securing clip,
-the small securing clip.
a Use a parts washer to clean the driveshaft, the spi-
der and the driveshaft yoke sleeve.
II - REFITTING OPERATION

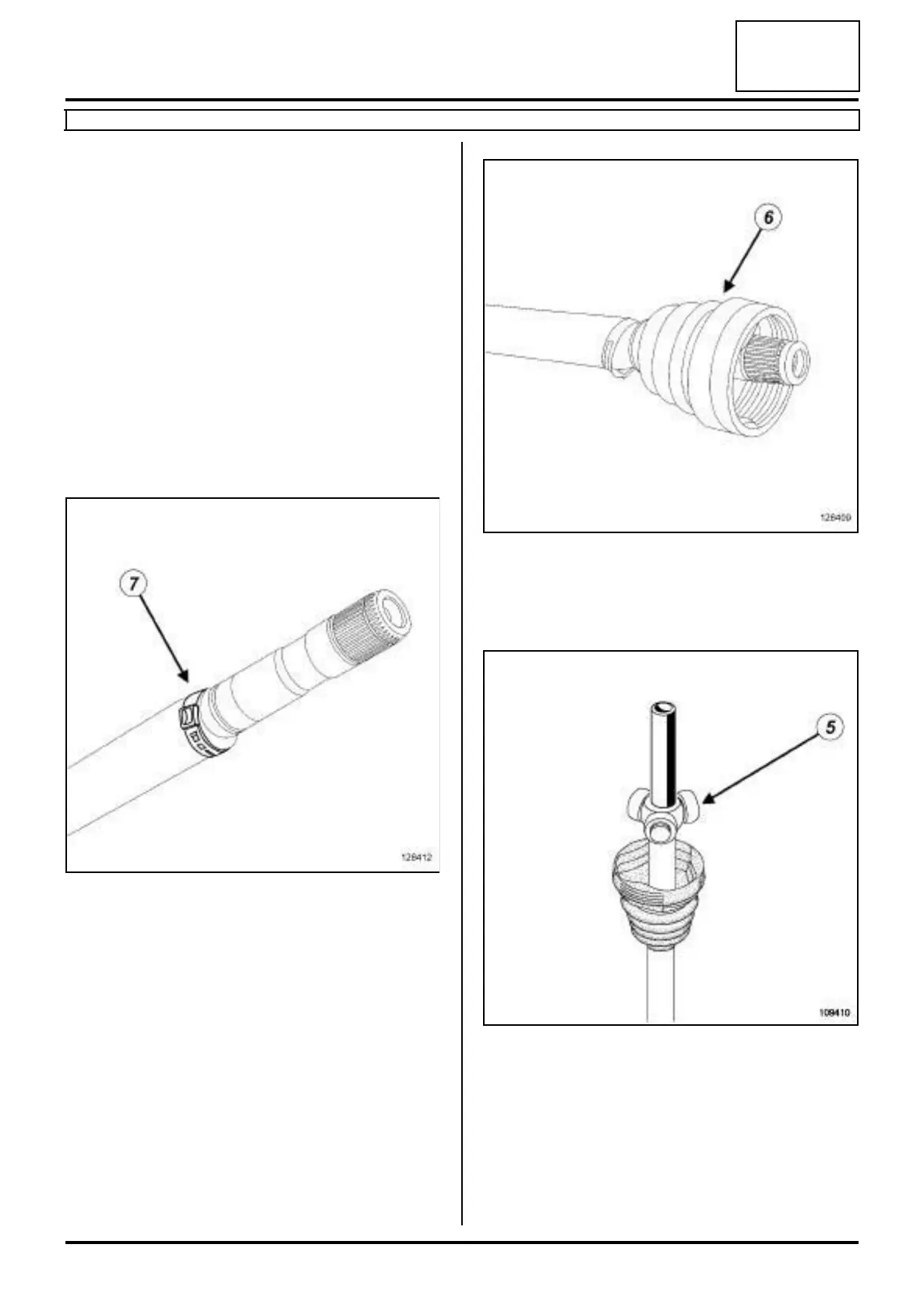

a Fit the small tightening clip (7) to the driveshaft.
a Lightly lubricate the driveshaft using the GREASE
supplied with the gaiter to facilitate its fitting.
a Refit the gaiter (6) onto the driveshaft.
a Insert the gaiter lip into the groove of the driveshaft.
a Refit the spider (5) in the position marked during re-
moval.
a Refit a new lock ring using circlip pliers.
a Divide the quantity of grease between the gaiter and
the driveshaft yoke sleeve.
a Fit the driveshaft yoke sleeve onto the spider.
128412
128409
109410
