29A-20
DRIVESHAFTS
Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting
JR5
29A

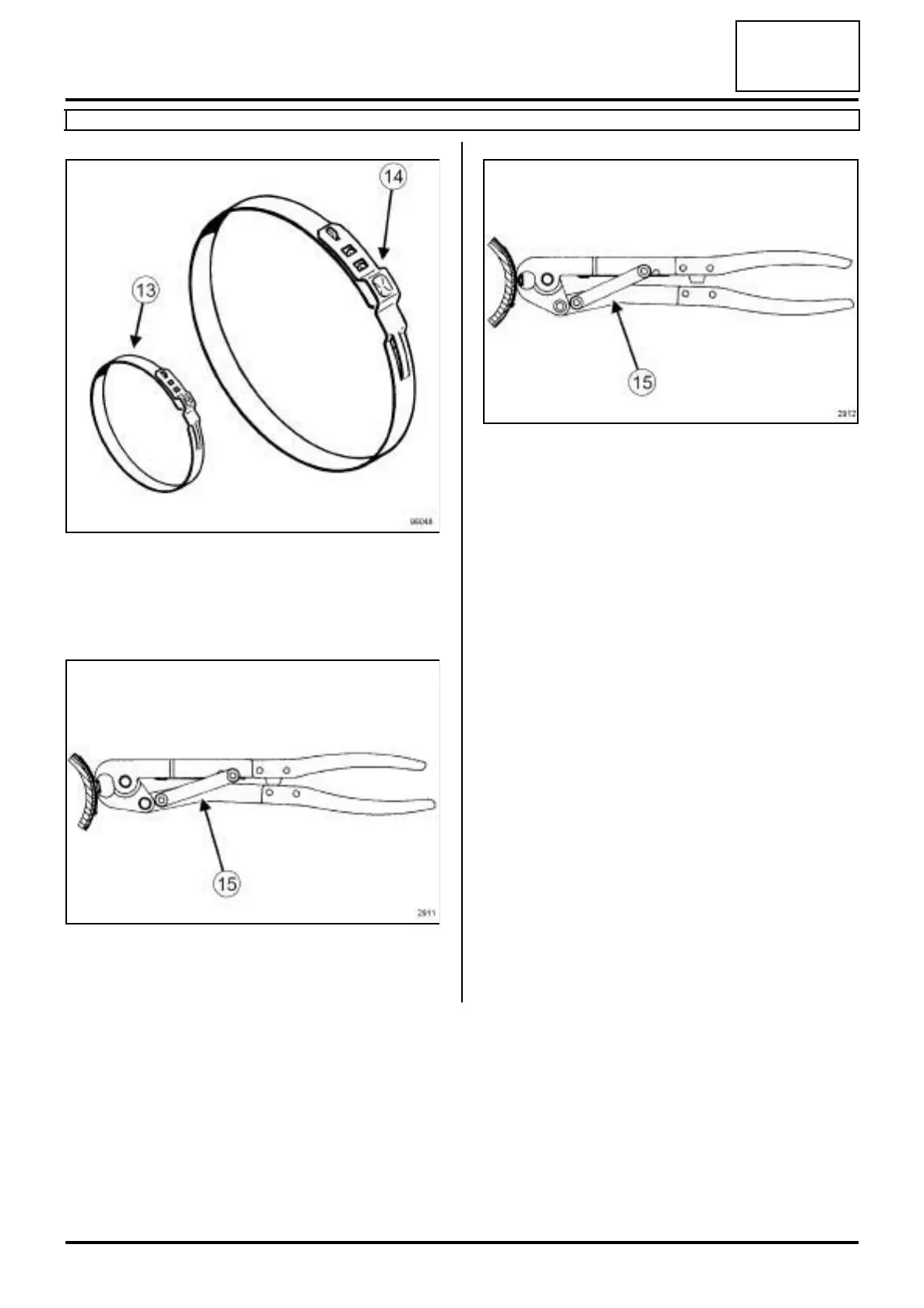

OETIKER clips
a Tighten the small clip (13) and the big clip (14) using
the tool.
Position 1 - Pre-tightening and positioning of the
clip
a Put the linkage (15) in the lower position, and close
the pliers fully. The pre-tightened clip slides onto the
gaiter and can be positioned.
Position 2 - Tightening
a Put the linkage (15) in the upper position, and close
the pliers fully.
III - FINAL OPERATION
a Refit the front left-hand driveshaft (see 29A, Drive-
shafts, Front left-hand driveshaft: Removal - Re-
fitting, page 29A-1) .
96048
2911
2912
