29A-19
DRIVESHAFTS
Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting
JR5
29A

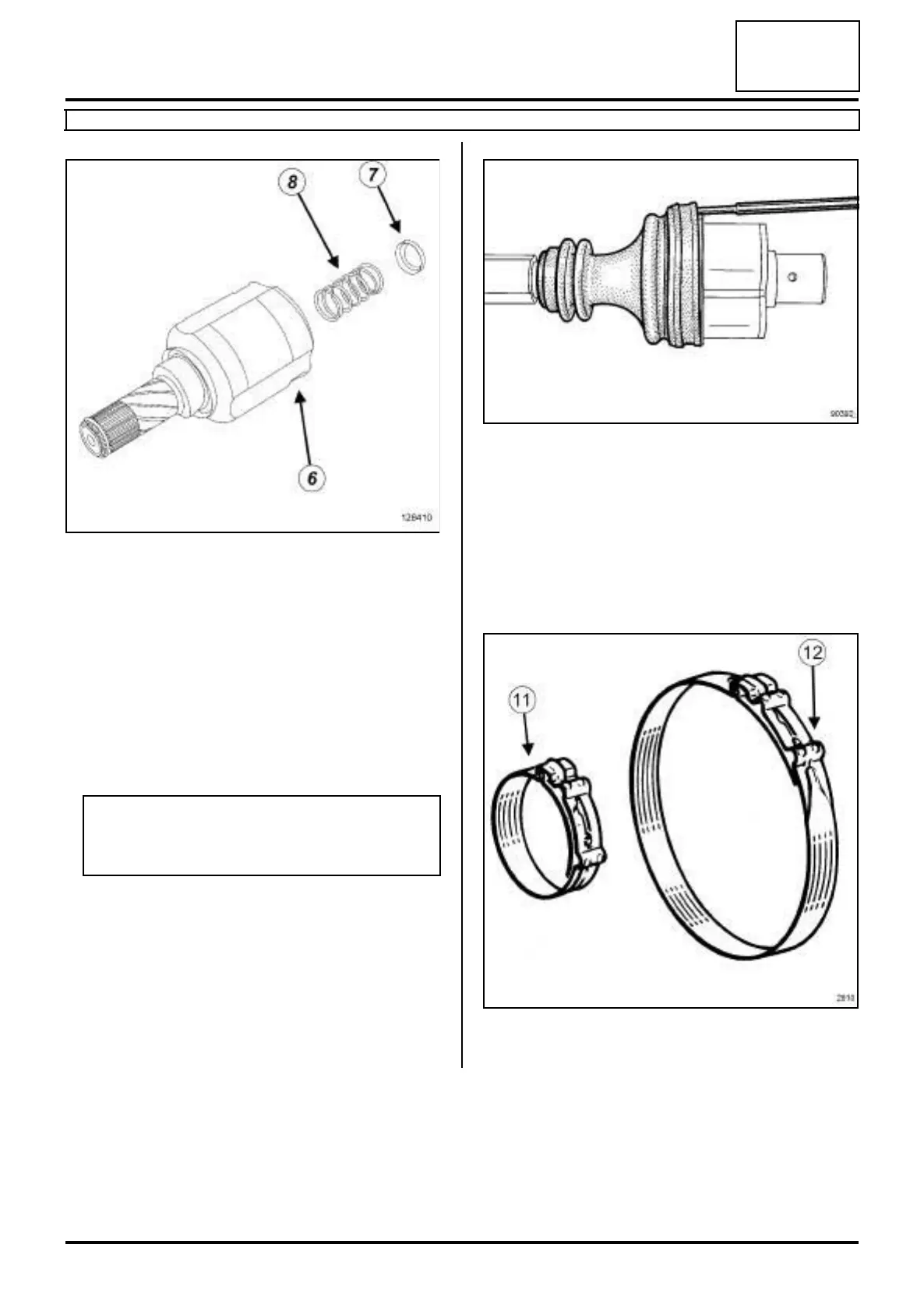

a Refit:
-the cup (7) onto the cup spring (8) ,
-the cup spring equipped with the cup into the drive-
shaft yoke sleeve (6) .
a Divide the quantity of grease between the driveshaft
gaiter and the yoke sleeve.
a Fit the driveshaft yoke sleeve onto the spider.
a Position the driveshaft gaiter lip into the groove of
the yoke sleeve.
a Insert a smooth rod with a rounded end between the
gaiter and driveshaft to control the amount of air in-
side the joint.
a Fit:
- the small securing clip on the driveshaft gaiter,
- the big securing clip on the driveshaft gaiter.
CAILLEAU « click » clips
a Tighten the small clip (11) and the big clip (12) until
they click, using the tool.
128410
Note:
Check that the gaiter lip is correctly positioned in
the groove of the driveshaft.
90392
2910
