31A-37
FRONT AXLE COMPONENTS
Front shock absorber and spring: Removal - Refitting
31A

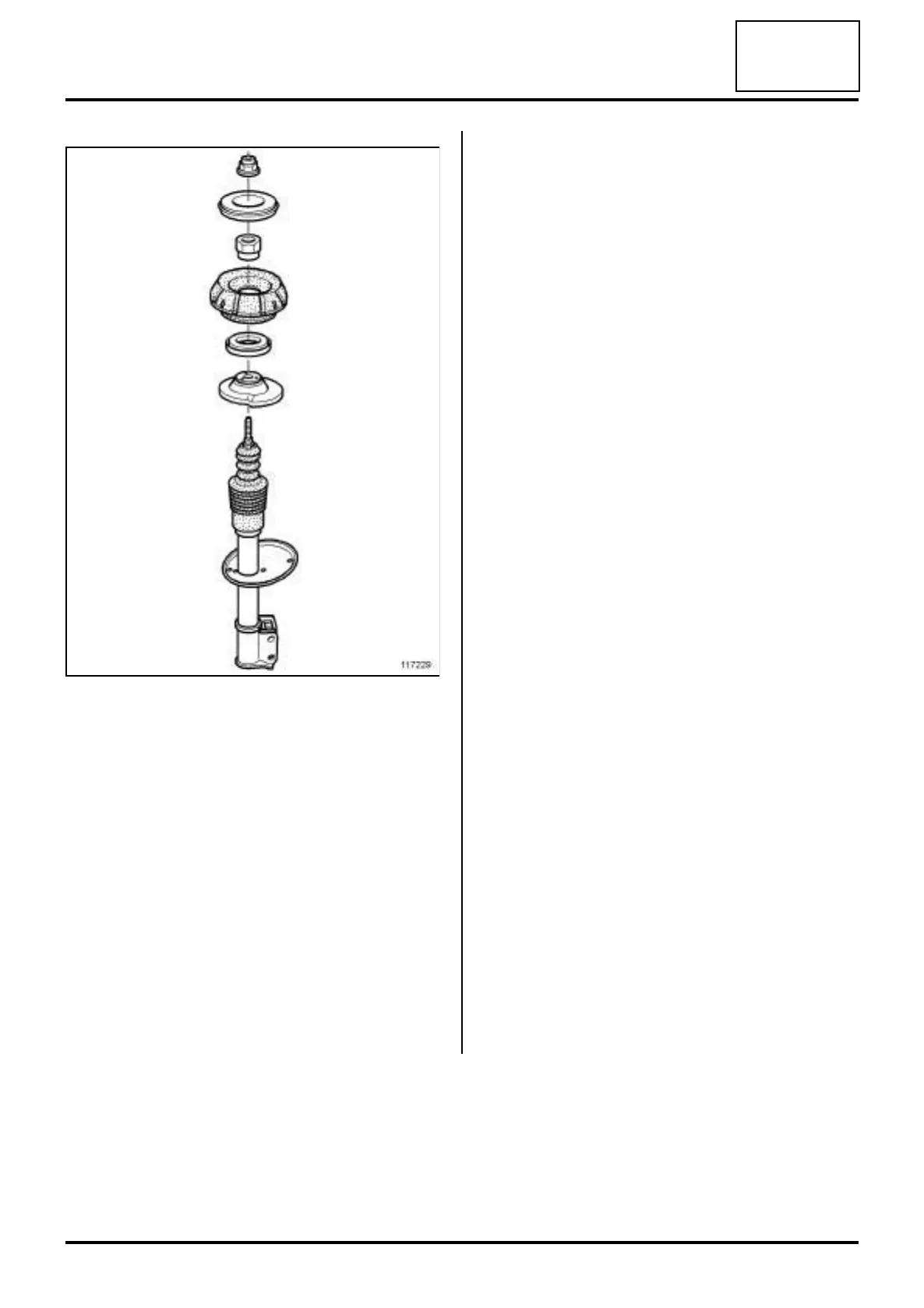

a Respect the order and direction of fitting for the con-
stituent parts.
a Torque tighten the internal nut of the shock ab-
sorber rod (62 N.m).
a Decompress the spring.
a Remove the spring compressor.
a Refit:
-the « spring/shock absorber » assembly,
-the shock absorber turret (8) using an Allen key
and a ring spanner,
-the shock absorber base on the hub carrier.
a Torque tighten:
-the shock absorber nut on the body (44 N.m),
-the shock absorber base bolts (105 N.m).
III - FINAL OPERATION
a Refit the brake hose mounting.
a Torque tighten the brake hose mounting bolt (8
N.m).
a Clip the brake hose cap onto the support.
a Clip the speed sensor onto the support.
a Refit the front wheel (see 35A, Wheels and tyres,
Wheel: Removal - Refitting, page 35A-1) .
117229
