FRONT AXLE COMPONENTS
Filter unit assembly: Removal - Refitting
31A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove:
-the front wheel on the side concerned (see 35A,
Wheels and tyres, Wheel: Removal - Refitting,
page 35A-1) ,
-the shock absorber (see 31A, Front axle compo-
nents, Front shock absorber and spring: Re-
moval - Refitting, page 31A-33) .
II - REMOVAL OPERATION
a Separate the various components of the « spring -
shock absorber » assembly.
a Visually check the condition of the component parts
of the filter unit.
a All faulty components must always be replaced.
REFITTING
I - REFITTING PREPARATION OPERATION
a Fit the components in the order indicated in the illus-
tration.
II - REFITTING OPERATION
a Proceed in the reverse order to removal.
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 31A, Front axle components, Front
axle components: Precautions for the repair,
page 31A-1) .

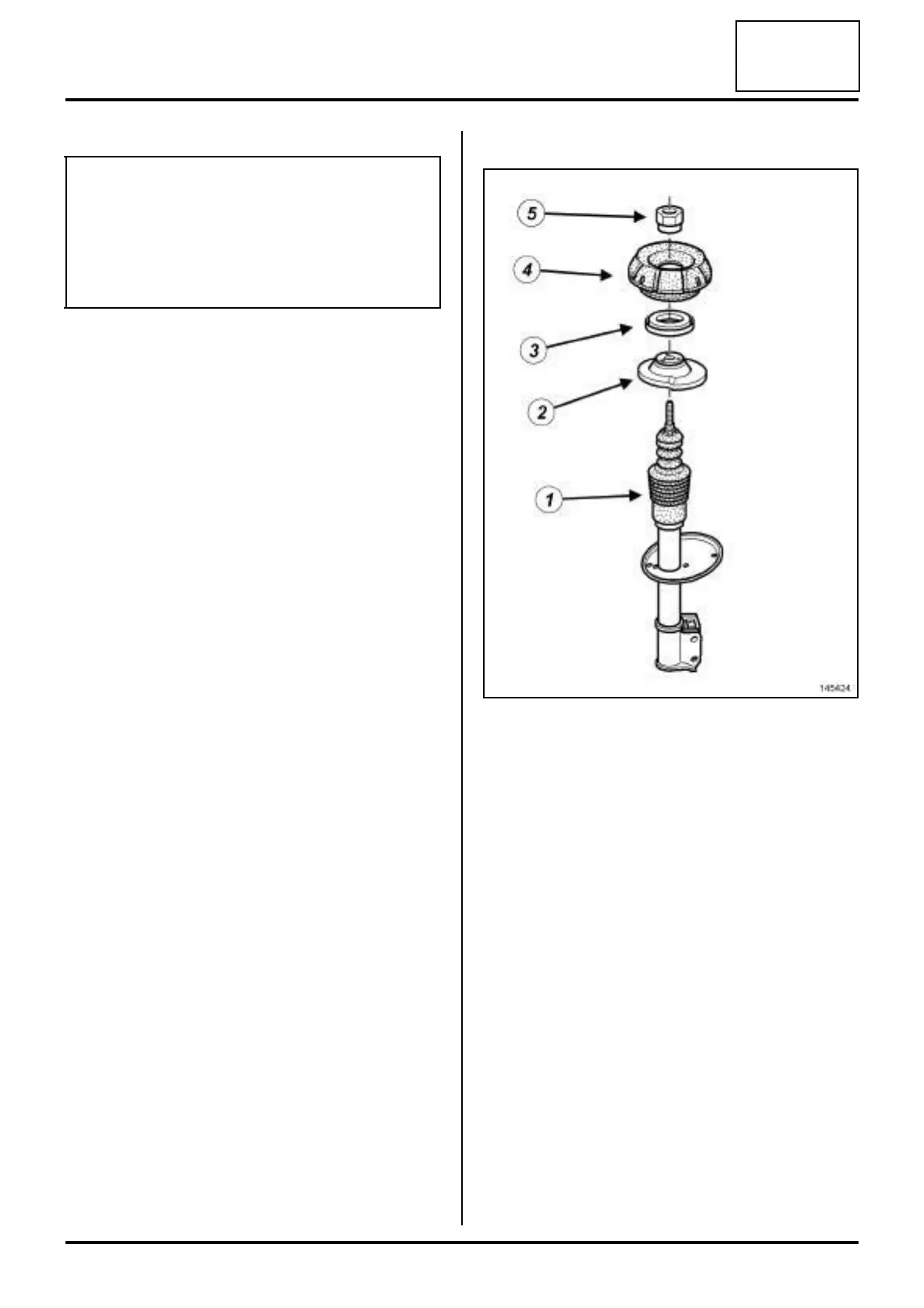

145424
(1) Front impact stop
(2) Upper cup
(3) Shock absorber stop
(4) Front filter unit
(5) Spacer
