31A-43
FRONT AXLE COMPONENTS
Front axle subframe: Removal - Refitting
31A

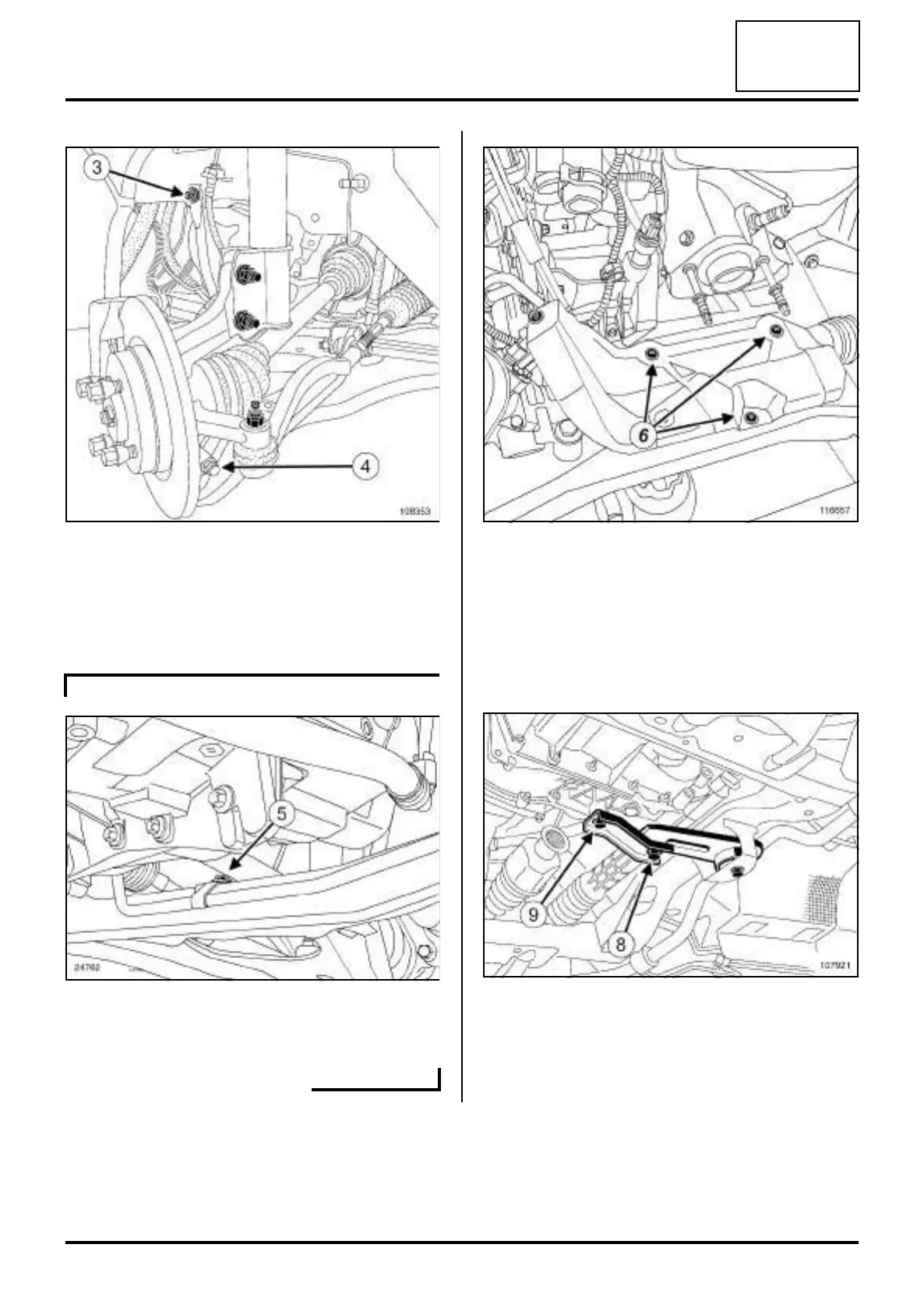

a Remove:
-the subframe tie-rod upper bolts (3) ,
-the bolts or nuts (4) of the lower ball joints.
a Remove the lower ball joints.
a Remove the bolt (5) of the power-assisted steering
low pressure pipe on the subframe.
a Remove the heat shield bolts (6) on the steering
box.
a Remove:
- the steering box heat shield,
- the steering box bolts on the subframe.
a Attach the steering box on the body.
a Remove:
- the engine tie-bar bolt (8) on the gearbox,
- the engine tie-bar retaining bracket bolt (9) ,
- the retaining bracket.
108353
POWER ASSISTED STEERING
24762
116657
107921
