31A-44
FRONT AXLE COMPONENTS
Front axle subframe: Removal - Refitting
31A

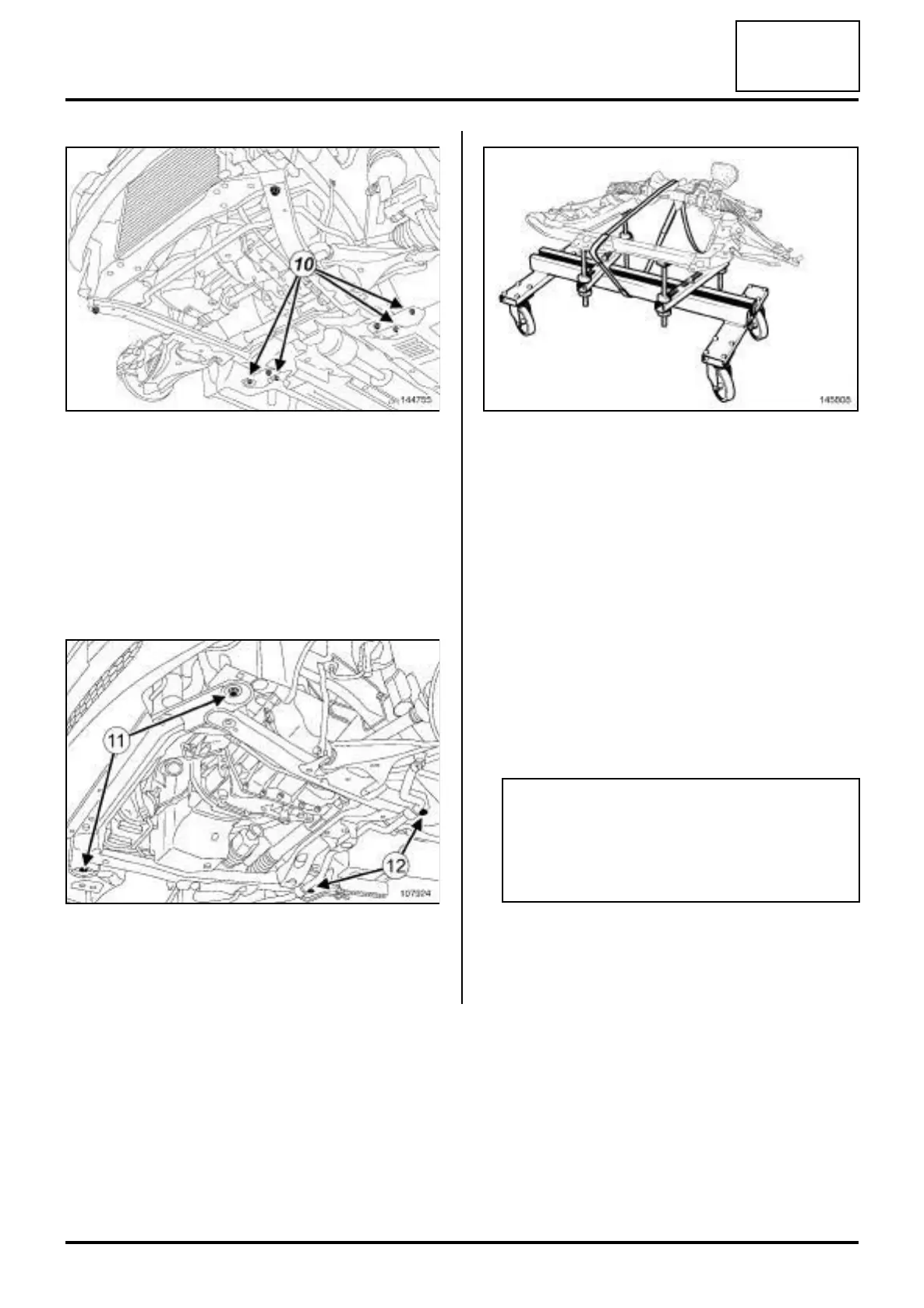

a Remove the bolts (10) of the front axle subframe
brackets.
a Unclip the oxygen sensor wiring on the heat shield.
a Position the (Mot. 1390) under the sub-frame.
a Lower the lift and adjust the pads to ensure that the
subframe is secure on the tool.
II - REMOVAL OPERATION
a Remove bolts (11) and (12) from the subframe on
the body.
a Remove the brackets.
a Strap the subframe to (Mot. 1390).
a Raise the lift to separate the subframe from the
body.
a Remove the sub-frame fittings.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Front sub-frame
bolt.
a Degrease the contact surface areas of the sub-
frame and the body using SURFACE CLEANER
(see Vehicle: Parts and consumables for the re-
pair) (04B, Consumables - Products).
II - REFITTING OPERATION
a Refit the subframe equipment.
a Position the subframe using (Mot. 1390).
144755
107924
145808
WARNING
To prevent the surrounding components from
overheating, do not damage (tear, pierce, bend,
etc.) a heat shield.
Any damaged heat shields must be replaced.
