10A-25
ENGINE AND CYLINDER BLOCK ASSEMBLY
Conrod bearing shell: Removal - Refitting
K9K
10A

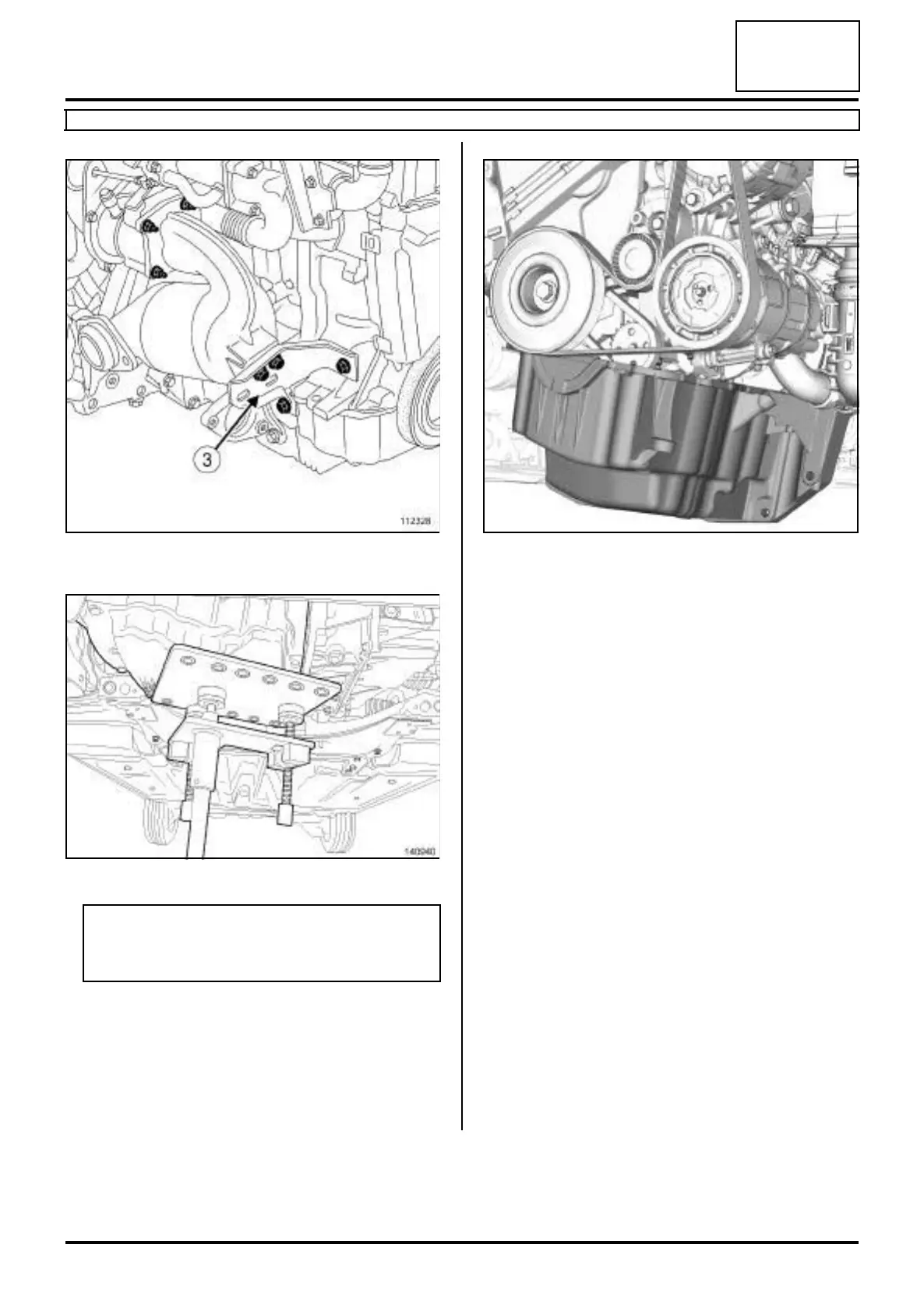

a Remove the catalytic converter upstream stay (3) .
a
Undo the bolts of the engine oil sump.
a Fit a component jack to support the engine oil
sump.
a Remove the bolts from the engine oil sump.
a Detach the engine oil sump, while supporting it with
the component jack.
a Tilt the engine oil sump forwards in order to access
the oil pump bolts.
a Partially loosen the oil pump bolts 3 mm to 5 mm.
a Detach the oil pump from its position in order to re-
move the engine oil sump.
a Remove:
- the engine oil sump,
- the engine oil sump seal,
- the oil pump.
112328
140940
WARNING
Failure to observe the following procedure may
damage the oil pump strainer.
140917
