10A-26
ENGINE AND CYLINDER BLOCK ASSEMBLY
Conrod bearing shell: Removal - Refitting
K9K
10A
II - REMOVAL OPERATION FOR THE CON ROD
BEARING SHELLS NO.2
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - Products) to clean the big ends.

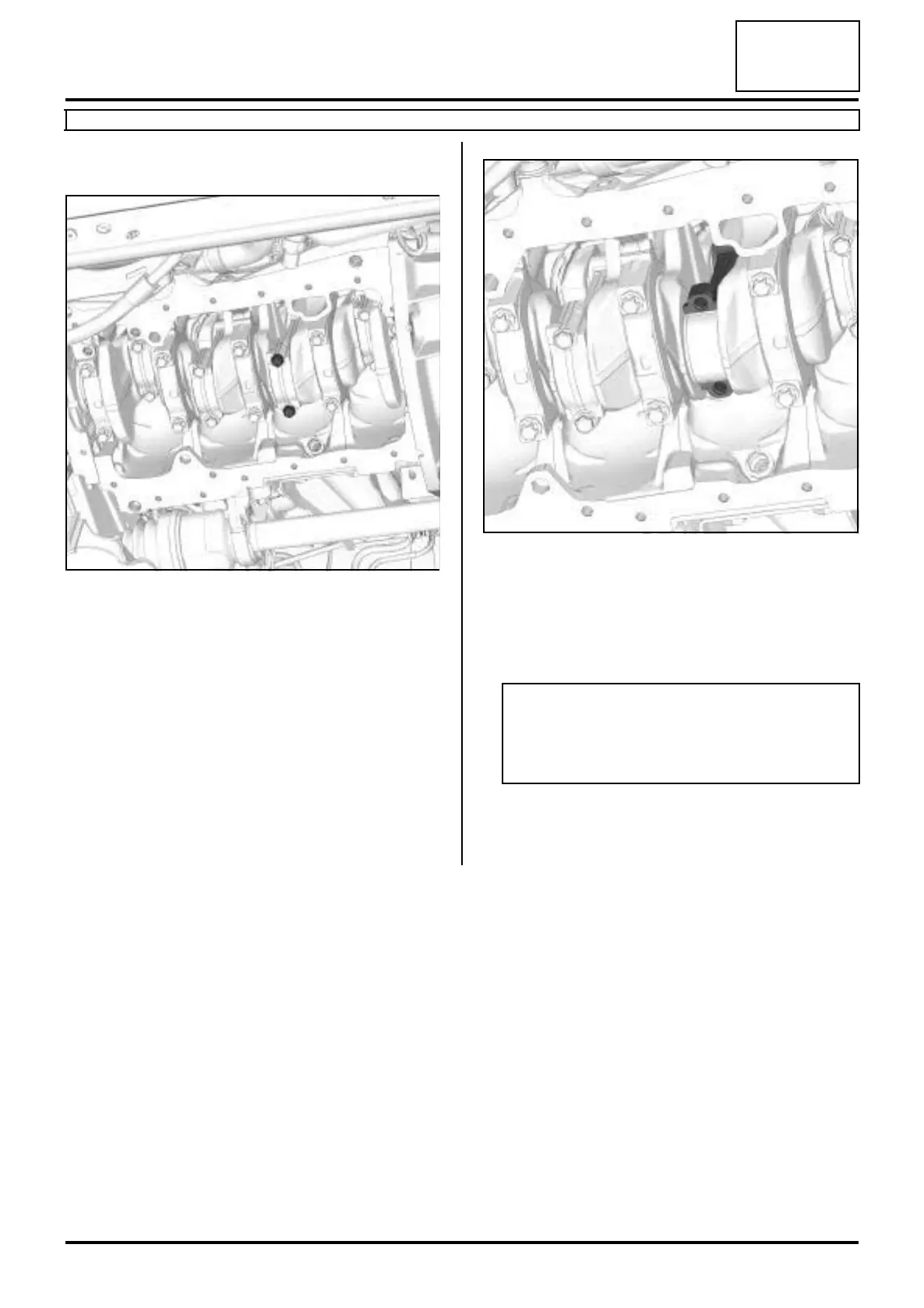

a Mark the position of the con rod cap in relation to the
con rod body using a indelible pencil.
a Position the crankshaft at Top Dead Centre.
a Remove:
- the con rod bolts,
- the con rod cap,
- the lower con rod bearing shell.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - products) to clean the bearing mating face on
the con rod cap.
139306
139300
Note:
If reusing the con rod bearing shells, mark the
position of the lower con rod bearing shell in rela-
tion to the con rod cap.
