10A-27
ENGINE AND CYLINDER BLOCK ASSEMBLY
Conrod bearing shell: Removal - Refitting
K9K
10A

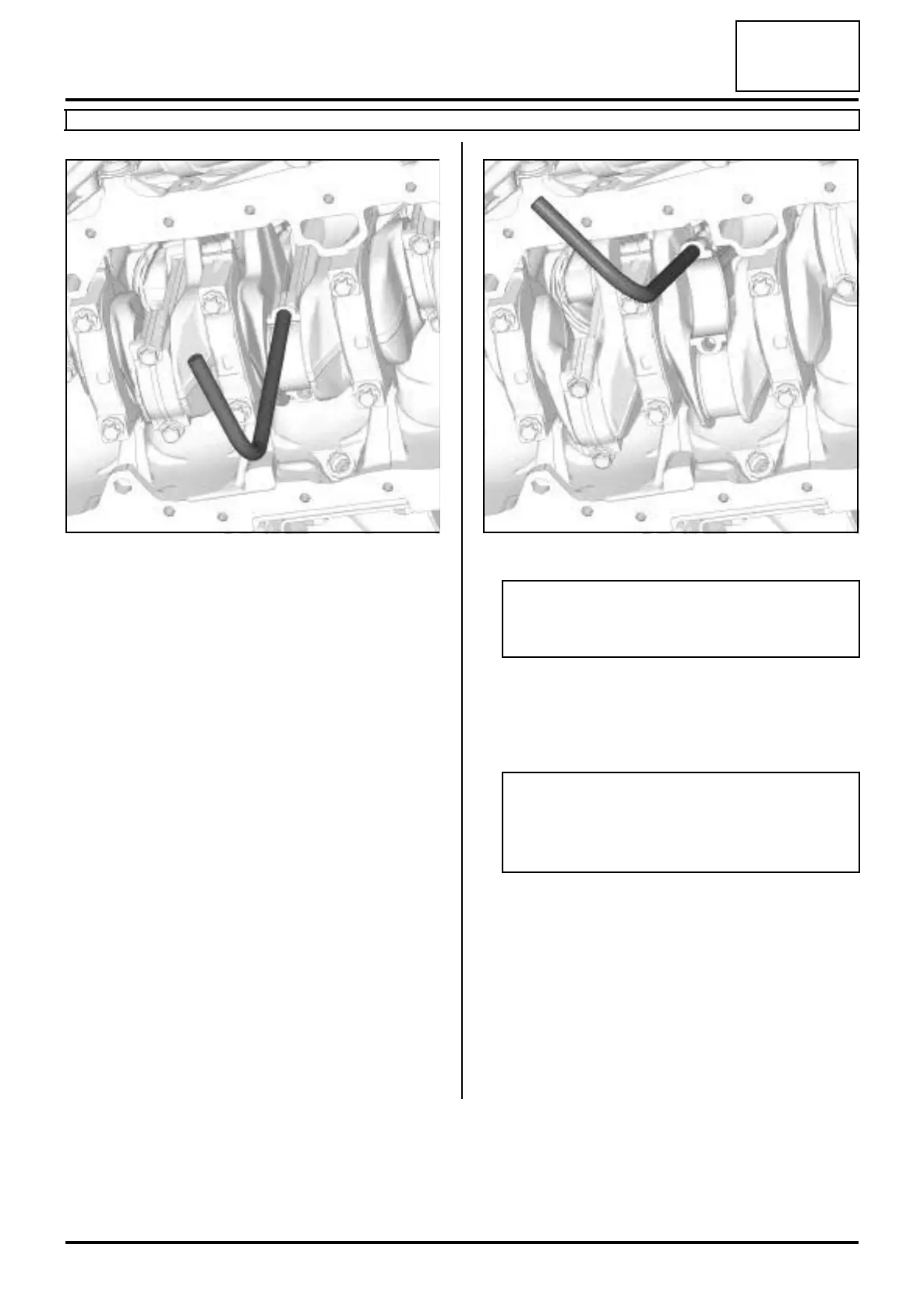

a Fit the tie rod of the toolon the con rod body.
a Push the con rod upwards to release the con rod
from the crankpin.
a Turn the crankshaft 90˚ clockwise (timing end).
a
Pull the con rod - piston assembly using the tie rod of
the tool, taking care not to allow the piston to touch
the piston base cooling jets.
a Remove the upper con rod bearing shell.
a Use SURFACE CLEANER (see Vehicle: Parts
and consumables for the repair) (04B, Consum-
ables - products) to clean the bearing mating face on
the con rod body.
REFITTING
I - REFITTING OPERATION FOR THE CON ROD
BEARING SHELLS ON CYLINDER NO.2
a parts always to be replaced: con rod cap bolts
139310 139315
WARNING
Failure to observe the following procedure may
damage the piston base cooling jets.
Note:
If reusing the con rod bearing shells, mark the
position of the upper con rod bearing shell in
relation to the con rod body.
