33A-17
REAR AXLE COMPONENTS
Rear axle rubber bearing: Removal - Refitting
33A

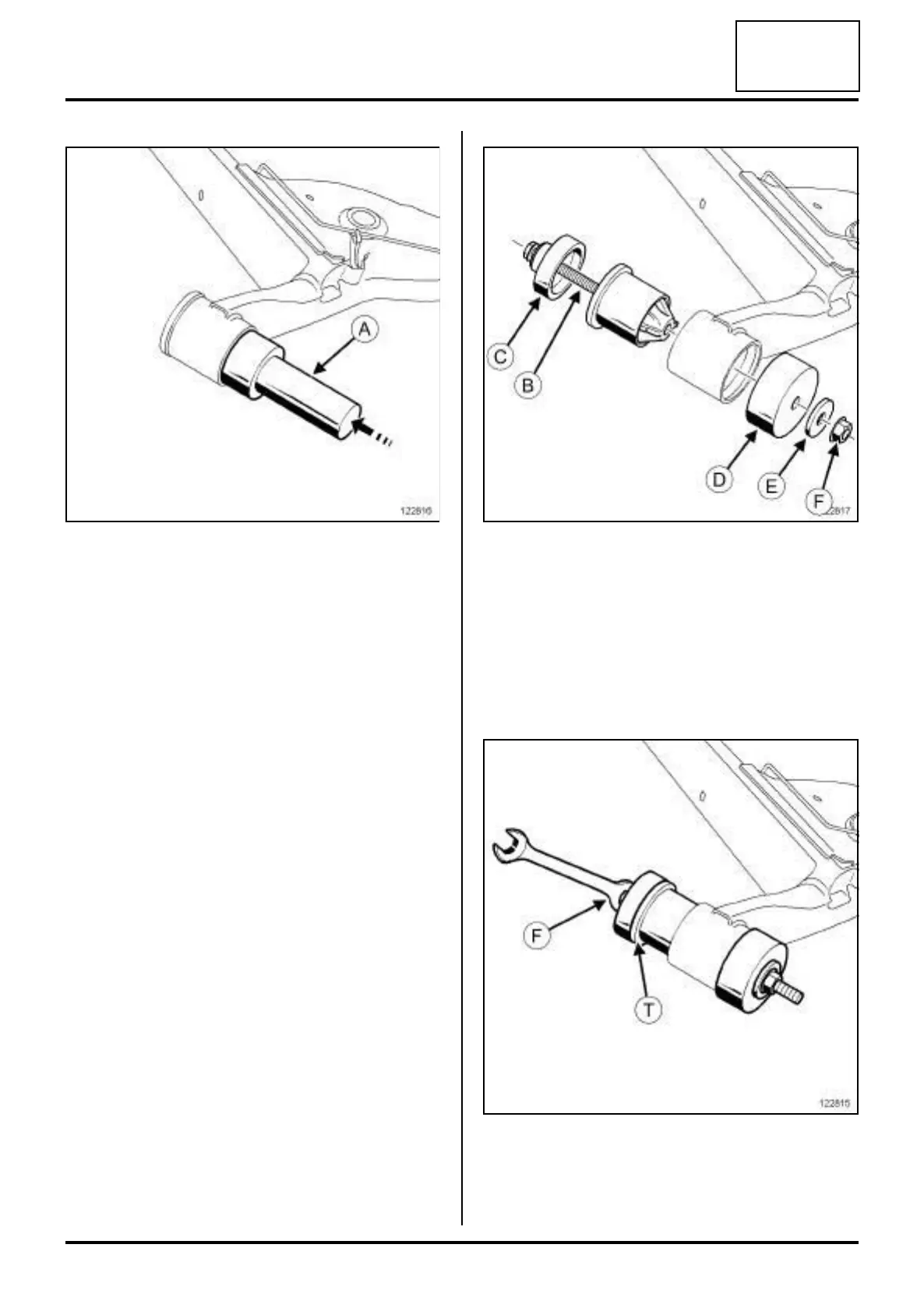

a Fit the joint castor (A) of the.
a Remove the rubber bearing from the rear axle by hit-
ting with a hammer on the bush castor (A) of the
tool.
REFITTING
I - REFITTING PREPARATION OPERATION
a parts always to be replaced: Rear axle rubber
bearing.
II - REFITTING OPERATION
a Position the rubber bearing in the bore of the rear
axle arm bushing so that the marks (M1) and (M2)
are aligned.
a To refit the rear axle rubber bearings use:
- the threaded rod (B) ,
- the cover (C) ,
- the cover (D) ,
- the anti-friction washer (E) ,
- the nut (F) , of the
a Position theused for refitting.
a Tighten the nut (F) of the tooluntil the rubber bearing
face (T) is set right up against the rear axle arm
bushing.
122816 122817
122815
