33A-20
REAR AXLE COMPONENTS
Complete rear axle system: Removal - Refitting
4X2 TRANSMISSION
33A

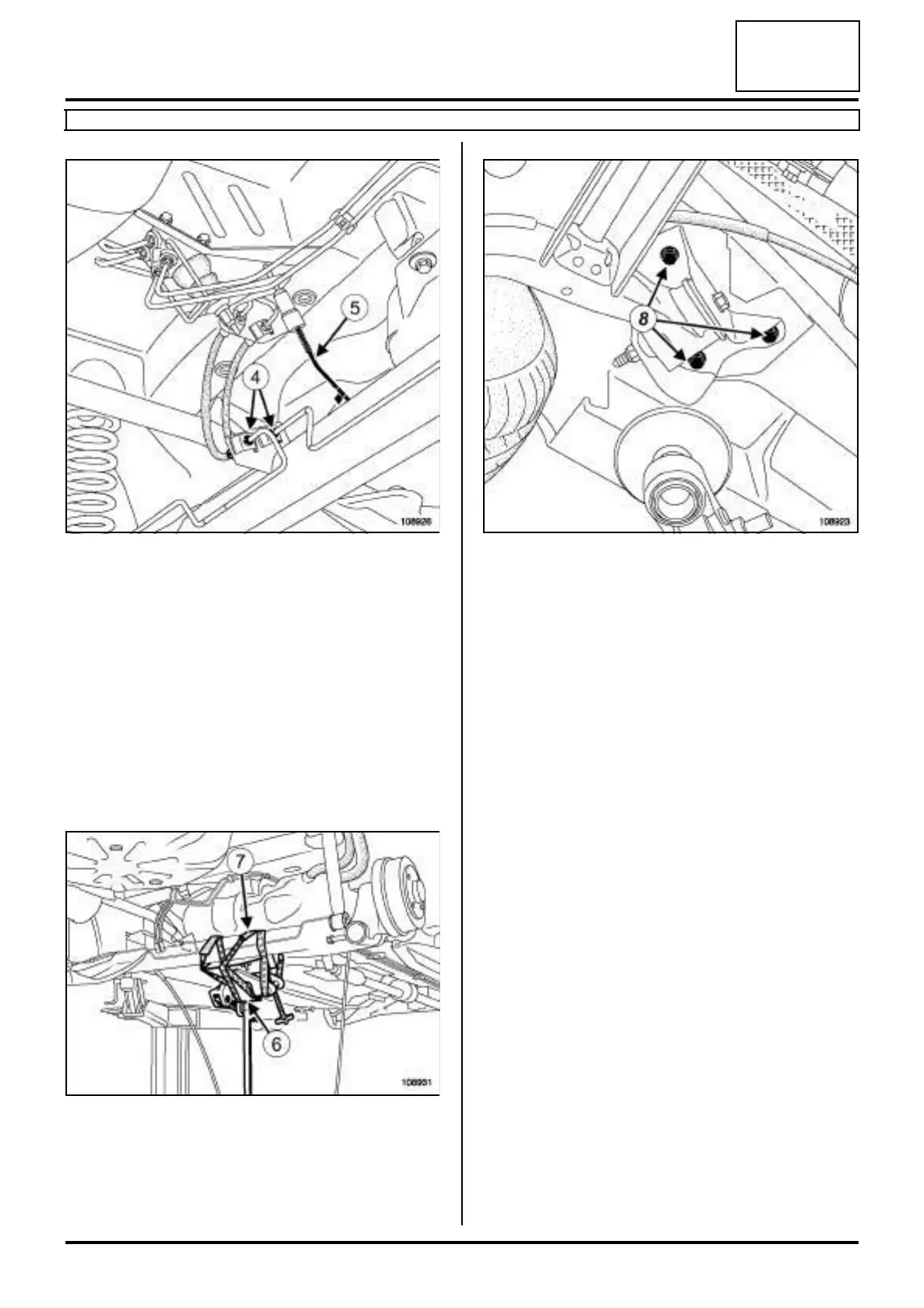

a Unscrew the unions of the rigid pipes on the flexible
brake pipes (4) .
a Detach the compensator rod (5) from the rear axle (if
fitted to vehicle).
a Remove the rear suspension springs (see 33A,
Rear axle components, Rear suspension spring:
Removal - Refitting, page 33A-14) .
a Undo the rigid brake pipe unions on the brake cylin-
ders.
a Place the component jack (6) at the centre of the
rear axle.
a Lash the rear axle to the component jack using a
safety strap(s) (7) .
a Loosen the bearing bolts (8) .
a Lower the rear axle with the component jack.
a Remove:
- the rear axle from the component jack,
- the rear axle equipment.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the bolts of the rubber bearings.
