36B-19
POWER ASSISTED STEERING
Power-assisted steering pipes: Removal - Refitting
K4M
36B
a Remove:

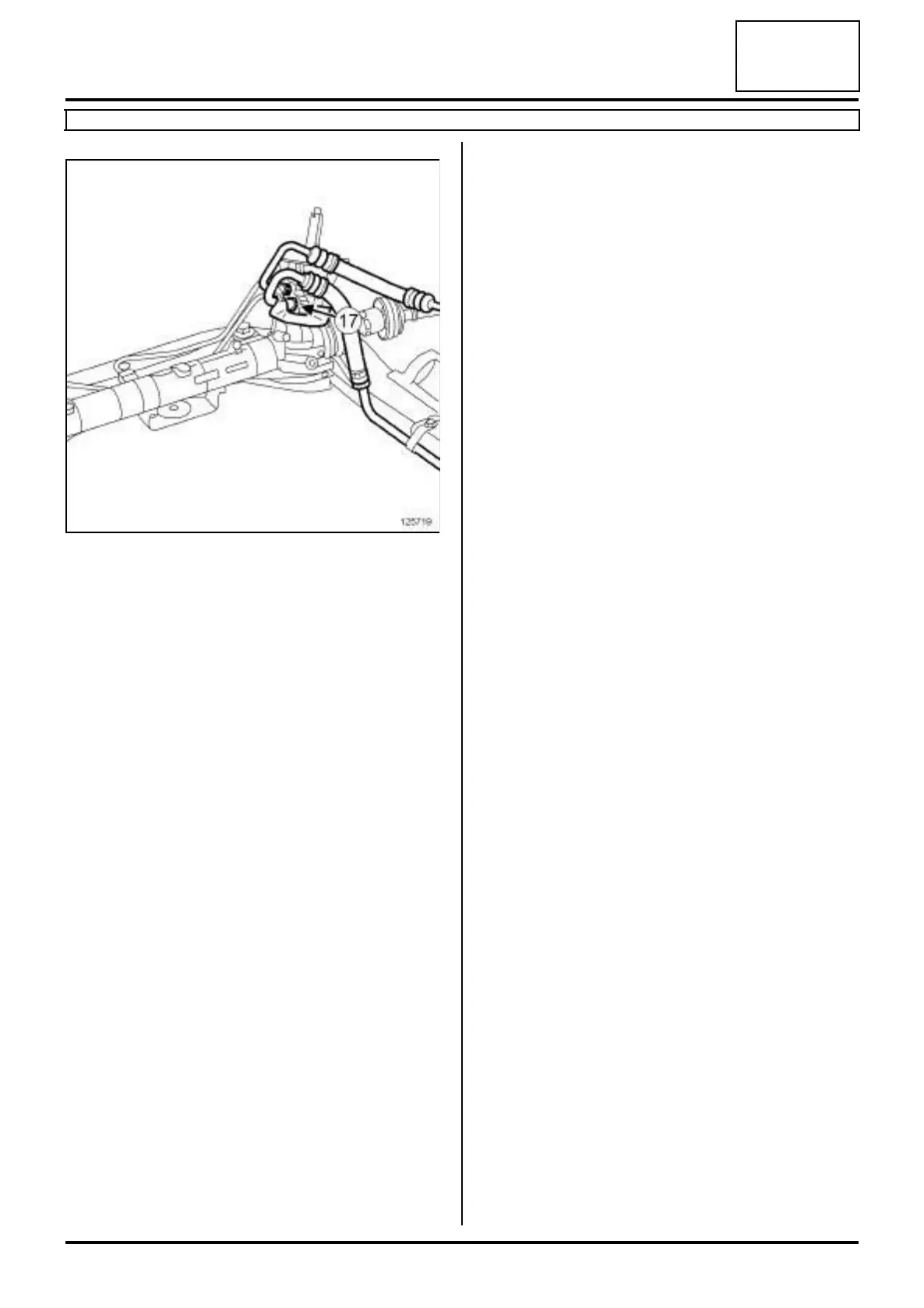

-the low pressure pipe union (17) on the steering
box,
-the low pressure pipe between the reservoir and
the steering box.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the O-rings on the power-assisted
steering pipes.
II - REFITTING OPERATION FOR PART
CONCERNED
1 - Low pressure pipe between the reservoir and
the steering box
a Refit:
-the low pressure pipe between the reservoir and
the steering box,
-the low pressure pipe union on the steering box,
-the bolt on the low pressure pipe bracket on the
sub-frame,
a Torque tighten:
-the low pressure pipe union on the steering box
(21 N.m),
-the low pressure pipe bracket bolt on the sub-
frame (21 N.m).
a Refit:
- the steering box heat shield,
- the heat-resistant protector bolts,
- the low pressure pipe on the reservoir,
- the clip using the (Mot. 1448).
a Clip the low pressure pipe onto the fan unit mount-
ing.
2 - High pressure pipe between the power-assisted
steering pump and the steering box
a Refit:
- the high pressure pipe between the power-assisted
steering pump and the steering box,
- the high pressure pipe union on the steering box,
- the high pressure pipe union on the power-assisted
steering pump,
- the high pressure pipe bolt on the suspended
mounting of the gearbox,
- the high pressure pipe bolt on the gearbox.
a Torque tighten:
- the high pressure pipe union on the power-as-
sisted steering pump (21 N.m),
- the high pressure pipe union on the steering
box (21 N.m)
- the high pressure pipe bolt on the steering box
(21 N.m)
- the high pressure pipe bolt on the gearbox sus-
pended mounting (21 N.m).
a Refit:
- the heat-resistant protector from the steering unit.
- the bolts on the heat shield.
a Connect the pressostat connector.
3 - Low pressure pipe between the power-assisted
steering pump and the reservoir
a Refit:
- the low pressure pipe between the power-assisted
steering pump and the reservoir,
- the low pressure pipe to the power-assisted steer-
ing pump,
- the low pressure pipe on the reservoir,
- the clips using the (Mot. 1448).
125719
