36B-18
POWER ASSISTED STEERING
Power-assisted steering pipes: Removal - Refitting
K4M
36B

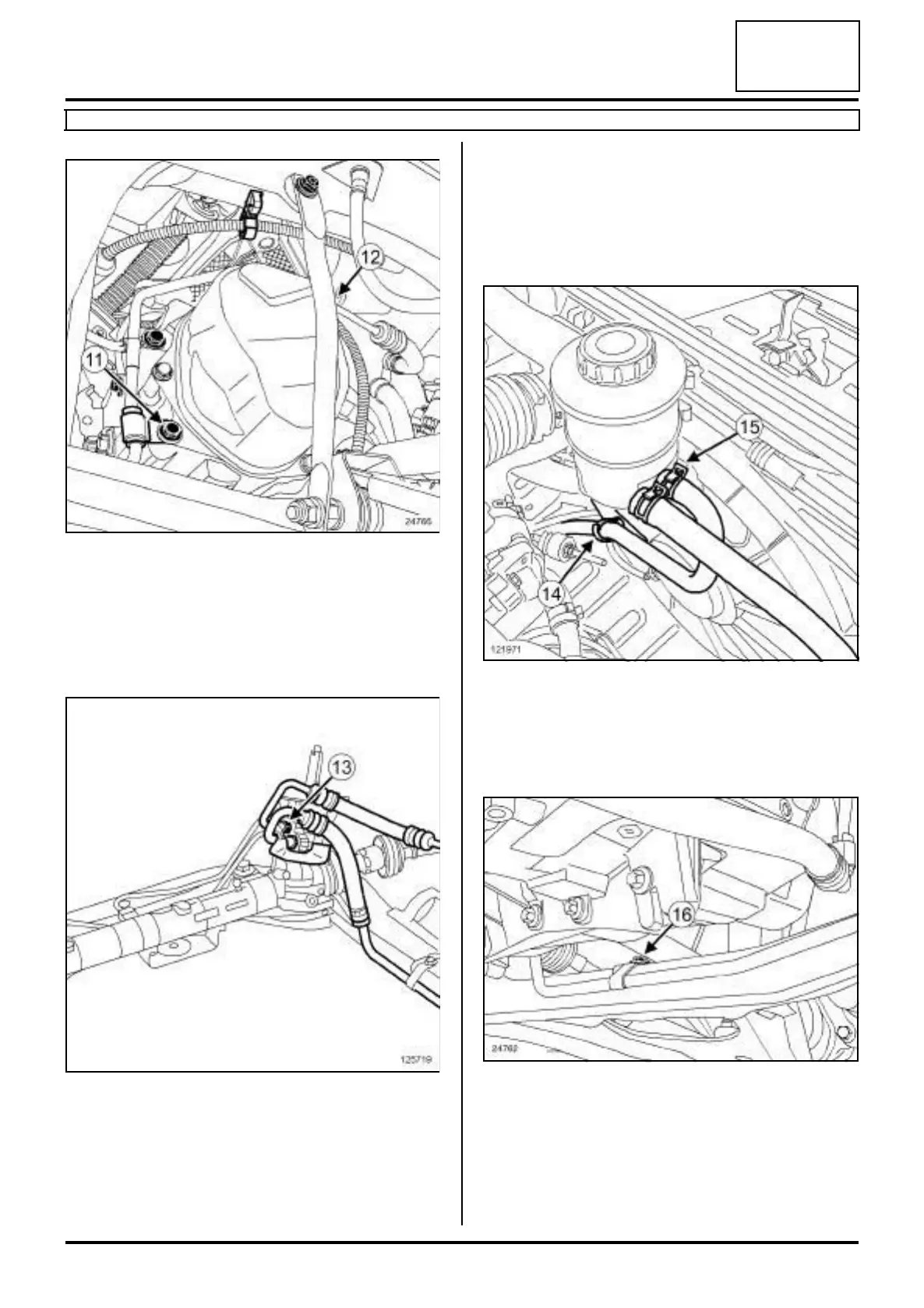

a Remove:
-the bolt (11) on the high pressure pipe on the gear-
box,
-the bolt (12) on the high pressure pipe on the gear-
box suspended mounting.
a Remove:
-the heat-resistant protector bolts,
-the steering box heat shield,
-the high pressure pipe union (13) on the steering
box,
- the high pressure pipe on the steering box,
- the power-assisted steering high pressure pipe.
3 - Low pressure pipe between the reservoir and
the steering box
a Unclip the low pressure pipe at (14) .
a Loosen the clip (15) using tool (Mot. 1448).
a Disconnect the low pressure pipe on the reservoir.
a Remove:
- the bolt (16) on the low pressure pipe bracket on
the sub-frame,
- the heat shield bolts on the steering box,
- the heat shield.
