36B-24
POWER ASSISTED STEERING
Power-assisted steering pipes: Removal - Refitting
K9K
36B

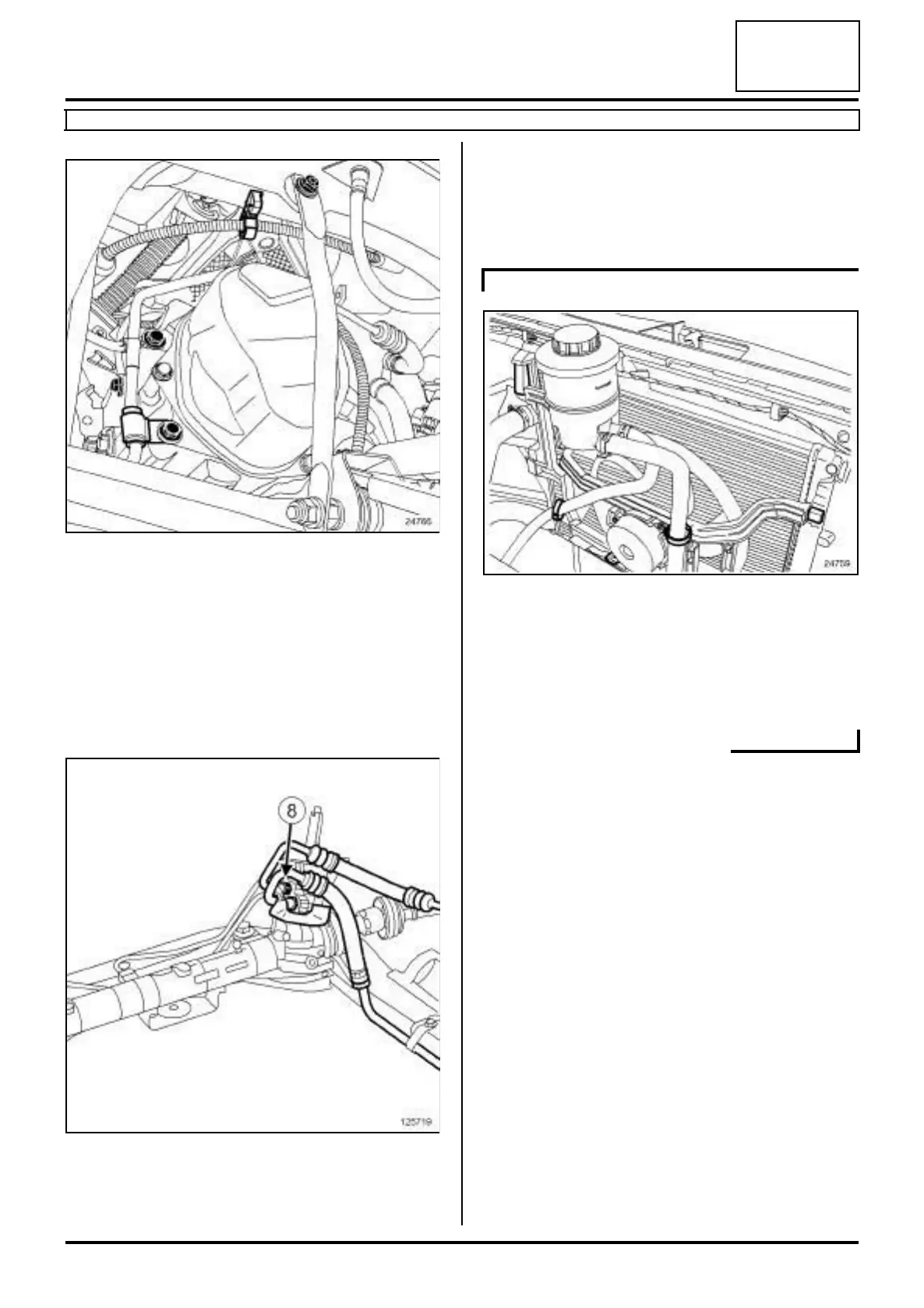

a Remove:
-the high pressure pipe bolt (6) on the gearbox sus-
pended mounting,
-the bolt (7) on the high pressure pipe on the gear-
box,
-the heat shield bolts on the steering box,
-the heat shield.
a Remove:
-the high pressure pipe union (8) on the steering
box,
- the high pressure pipe between the power-assisted
steering pump and the steering box.
3 - Low pressure pipe between the reservoir and
the power-assisted steering box
a Unclip the low pressure pipe at (9) .
a Remove:
- the clip (10) using the (Mot. 1448),
- the low pressure pipe on the reservoir.
24766
125719
STANDARD HEATING RECIRCULATION
24759
