36B-25
POWER ASSISTED STEERING
Power-assisted steering pipes: Removal - Refitting
K9K
36B

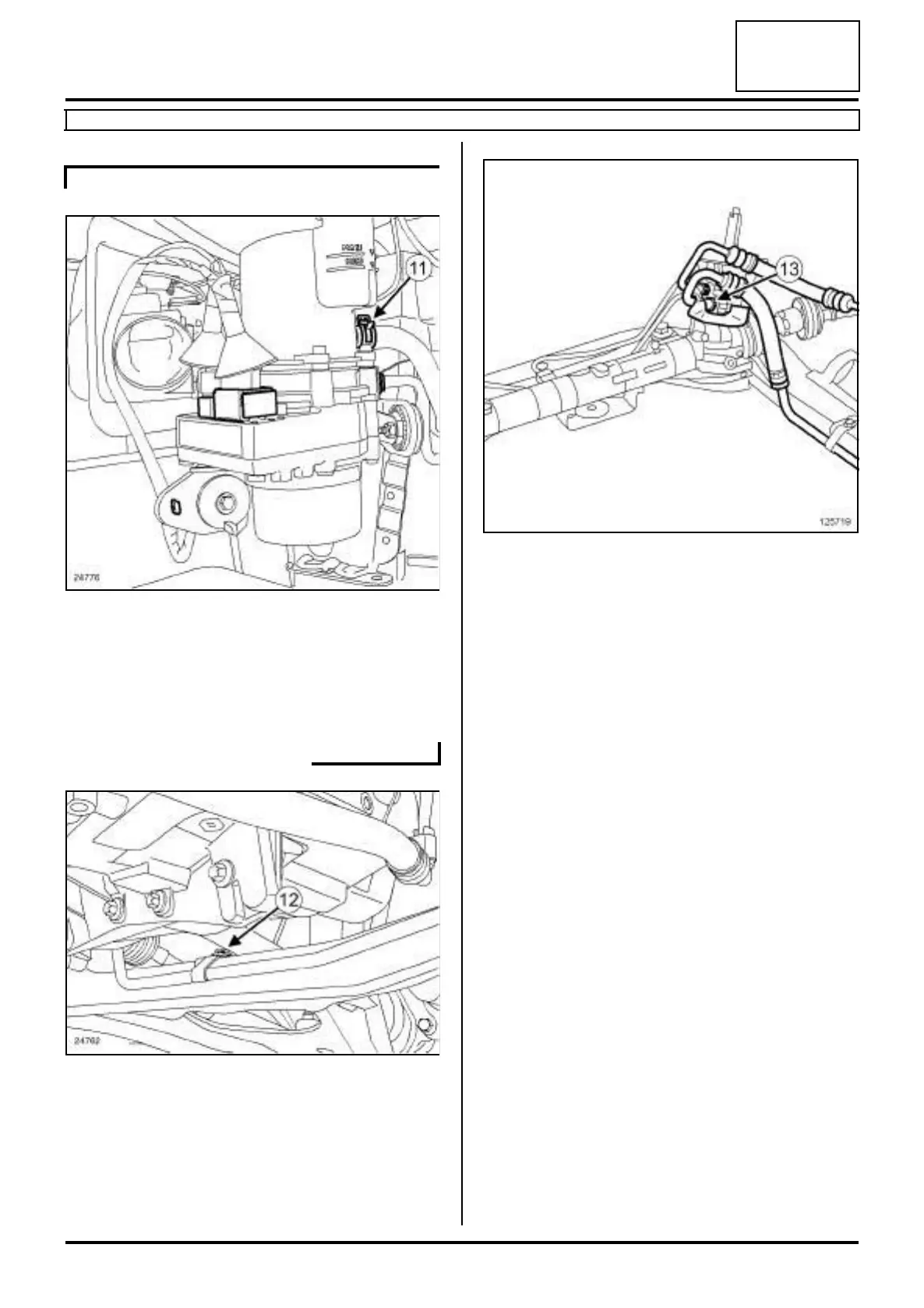

a Remove:
-the clip (11) using the (Mot. 1448),
-the low pressure pipe on the reservoir.
a Remove:
-the low pressure pipe clamp (12) bolt on the sub-
frame,
-the heat shield bolts,
-the heat shield.
a Remove:
-the low pressure pipe union (13) on the steering
box,
- the low pressure pipe between the reservoir and
the steering box.
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the O-rings on the power-assisted
steering pipes.
II - REFITTING OPERATION FOR PART
CONCERNED
1 - Low pressure pipe between the reservoir and
the power-assisted steering box
a Refit:
- the low pressure pipe between the power-assisted
steering pump and the reservoir,
- the clips using the (Mot. 1448).
a Clip the low pressure pipe onto the fan unit mount-
ing.
AIR CONDITIONING
24776
24762
125719
