37A-19
MECHANICAL COMPONENT CONTROLS
Pedal yoke: Removal - Refitting
RIGHT-HAND DRIVE
37A
II - REFITTING OPERATION FOR PART
CONCERNED
a In the event of replacement, refit:
-the accelerator pedal (see 37A, Mechanical com-
ponent controls, Accelerator pedal: Removal -
Refitting, page 37A-20) ,
-the brake pedal (see 37A, Mechanical compo-
nent controls, Brake pedal: Removal - Refitting,
page 37A-26) .
a Refit the pedal yoke.
a Torque tighten the pedal yoke nuts (21 N.m).
III - FINAL OPERATION

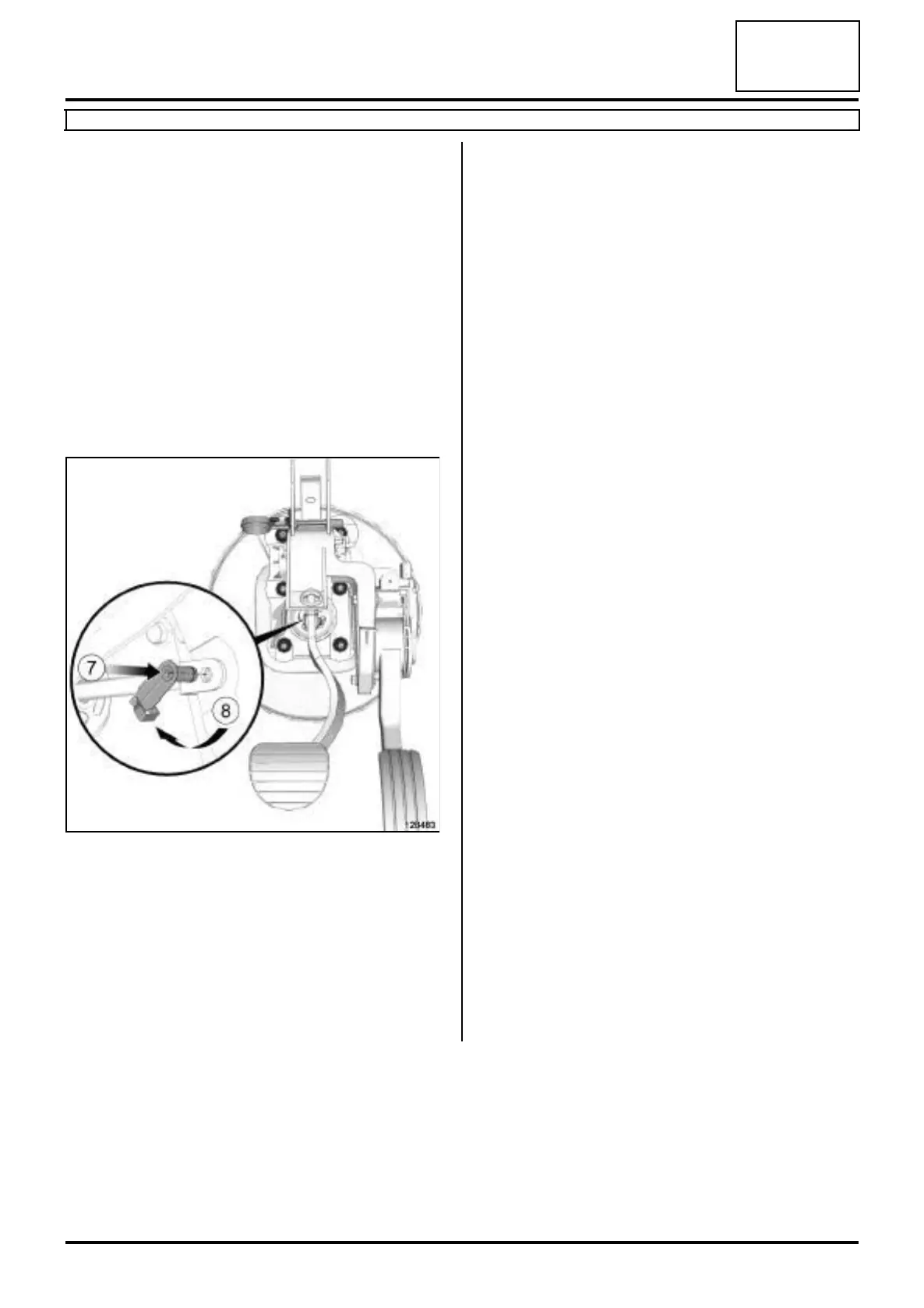

a Refit a new connecting shaft between the brake pe-
dal and the brake servo pushrod:
-insert the shaft in accordance with (7) ,
-lock the shaft in accordance with (8) .
.
a Refit the brake pedal switch (see 37A, Mechanical
component controls, Brake pedal switch: Re-
moval - Refitting, page 37A-27) .
