37A-18
MECHANICAL COMPONENT CONTROLS
Pedal yoke: Removal - Refitting
RIGHT-HAND DRIVE
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the brake pedal switch (see 37A, Mechan-
ical component controls, Brake pedal switch:
Removal - Refitting, page 37A-27) .

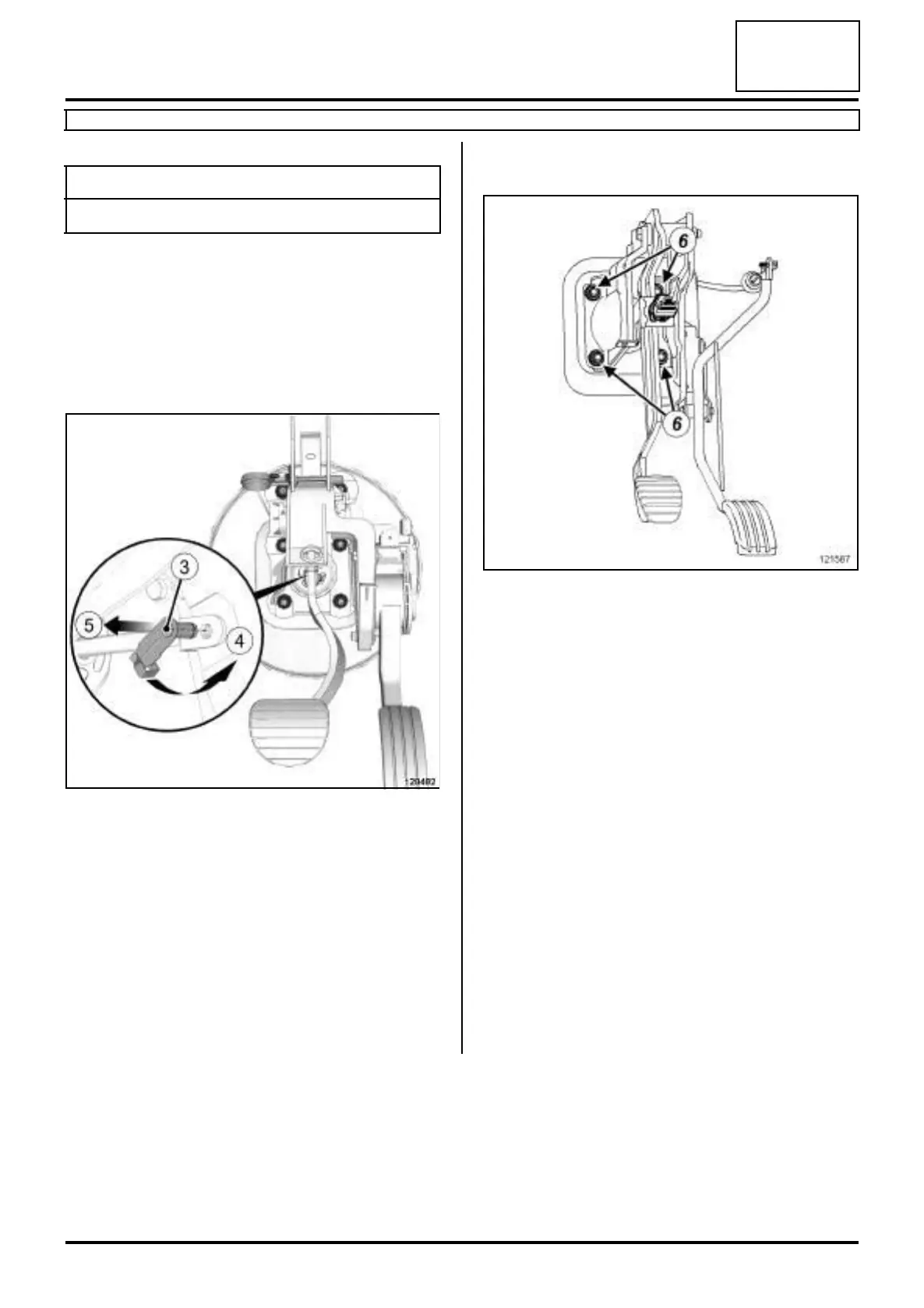

a Remove the connecting shaft (3) between the brake
pedal and the brake servo pushrod:
-unlock the shaft in accordance with (4) ,
-extract the shaft in accordance with (5) .
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove:
- the nuts (6) of the pedal yoke,
- the pedal yoke.
a In the event of replacement, remove:
- the brake pedal (see 37A, Mechanical compo-
nent controls, Brake pedal: Removal - Refitting,
page 37A-26) ,
- the accelerator pedal (see 37A, Mechanical com-
ponent controls, Accelerator pedal: Removal -
Refitting, page 37A-20) .
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the parts always to be replaced:
Connecting shaft between the brake pedal and
the brake servo pushrod.
a Coat the shaft with MOLYCOTE 33M grease (see
Vehicle: Parts and consumables for the repair)
(MR 388, 04B, Consumables - Products).
Tightening torquesm
pedal yoke nuts 21 N.m
128482
121587
