37A-21
MECHANICAL COMPONENT CONTROLS
Accelerator pedal: Removal - Refitting
K4M, and 4X2 TRANSMISSION
37A
REMOVAL
OPERATION FOR REMOVAL OF PART
CONCERNED

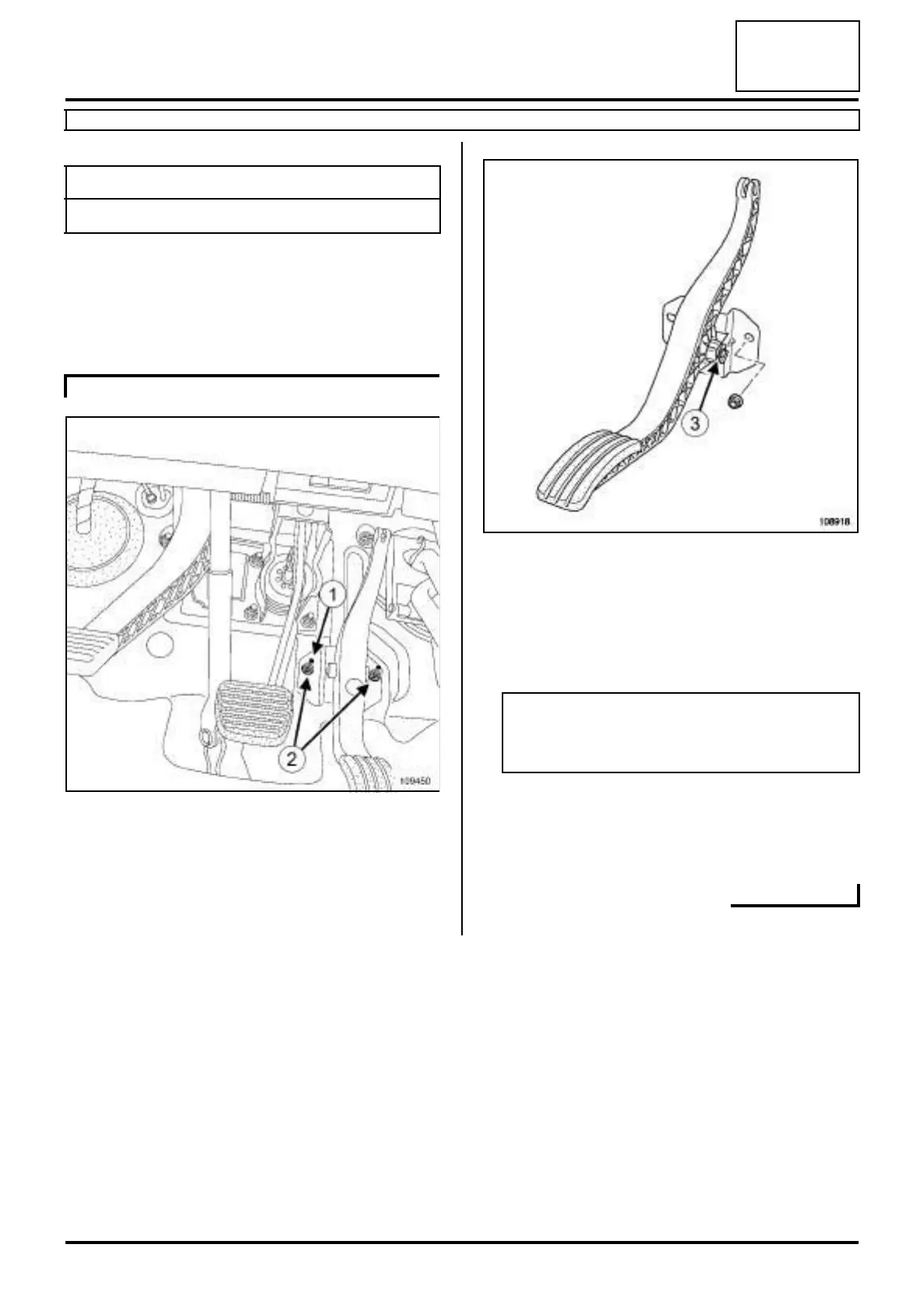

a Undo the special nut (1) for the insulating foam on
the left-hand nut of the accelerator pedal mounting.
a Remove:
-the nuts (2) of the accelerator pedal mounting,
-the mounting - accelerator pedal assembly.
a Remove:
- the accelerator cable on the pedal side by holding
it upwards and sliding the end piece of the cable to-
wards the centre console,
- the circlip (3) using a screwdriver,
a Remove:
- the pedal shaft,
- the accelerator pedal.
Tightening torquesm
pedal mounting nuts 21 N.m
LEFT-HAND DRIVE
109450
108918
Note:
Note the fitting direction of the shaft in relation to
the pedal mounting.
