37A-22
MECHANICAL COMPONENT CONTROLS
Accelerator pedal: Removal - Refitting
K4M, and 4X2 TRANSMISSION
37A

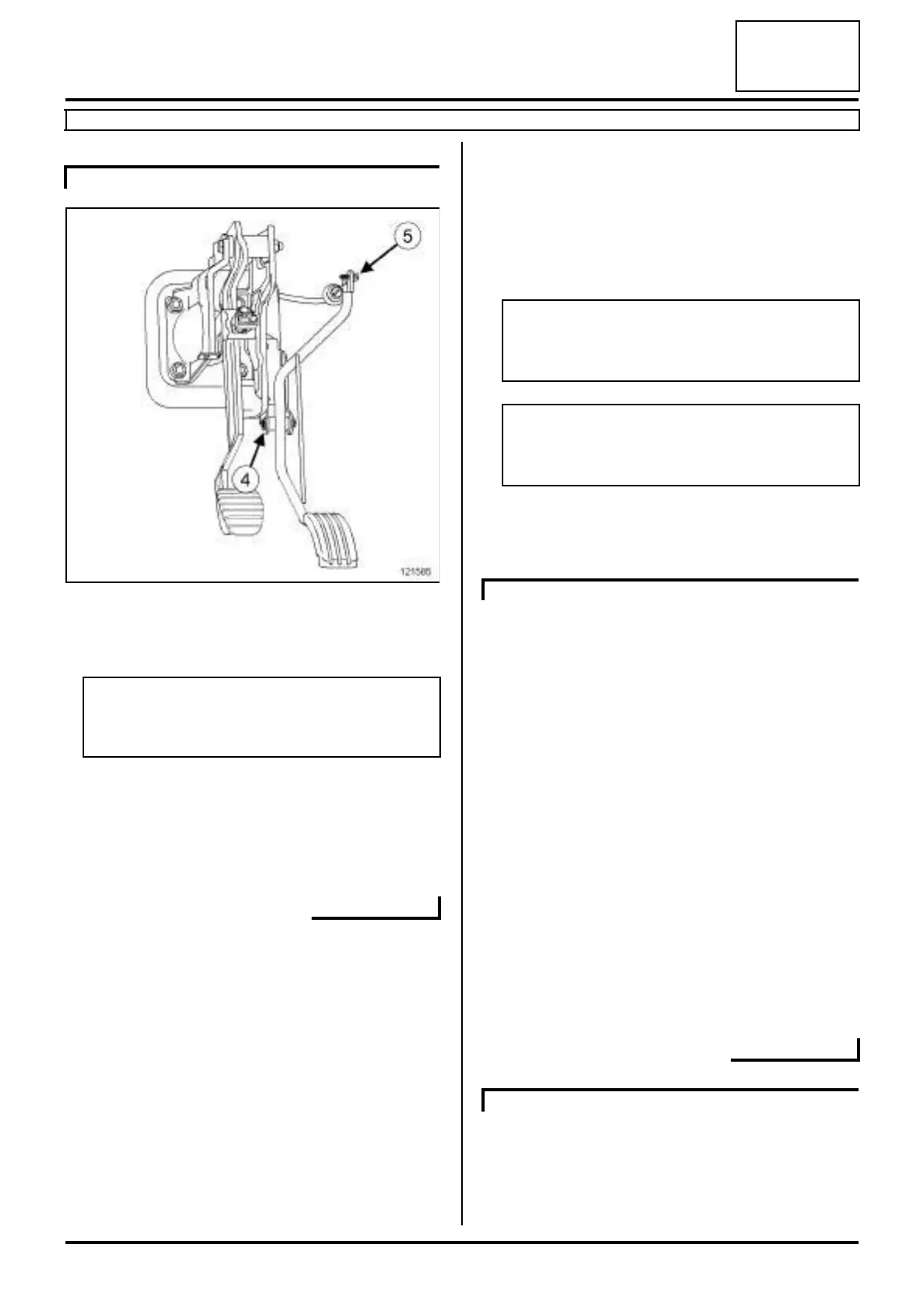

a Extract the clip (5) from the accelerator cable on the
pedal.
a
Remove:
-the circlip (4) using a screwdriver,
-the accelerator pedal shaft,
-the accelerator pedal.
REFITTING
REFITTING PREPARATION OPERATION
a Coat the shaft with MOLYCOTE 33M grease (see
Vehicle: Parts and consumables for the repair)
(MR 388, 04B, Consumables - Products).
I - REFITTING OPERATION FOR PART
CONCERNED
a Refit on the accelerator pedal mounting:
- the pedal,
- the pedal shaft,
- the circlip.
a Refit the accelerator cable end piece on the hole on
top of the accelerator pedal by sliding it from right to
left and by guiding the cable into the groove of the
pedal.
a Position the mounting - accelerator pedal assembly
on the centre console.
a Refit the accelerator pedal mounting nuts.
a Torque tighten the pedal mounting nuts (21 N.m).
a Refit:
- the insulating foam,
-the special nut for the insulating foam on the left-
hand nut of the accelerator pedal.
a Refit the accelerator pedal on its mounting.
a Refit:
- the accelerator pedal shaft,
- the circlip on the accelerator pedal shaft,
RIGHT-HAND DRIVE
121585
Note:
Note the fitting direction of the shaft in relation to
the pedal mounting.
Note:
Refit the shaft in relation to the pedal mounting in
the position noted during the removal operation.
Note:
Do not hit the pedal assembly shaft with a ham-
mer to get it back into place.
LEFT-HAND DRIVE
RIGHT-HAND DRIVE
