37A-39
MECHANICAL COMPONENT CONTROLS
Clutch circuit: Bleed
JR5
37A

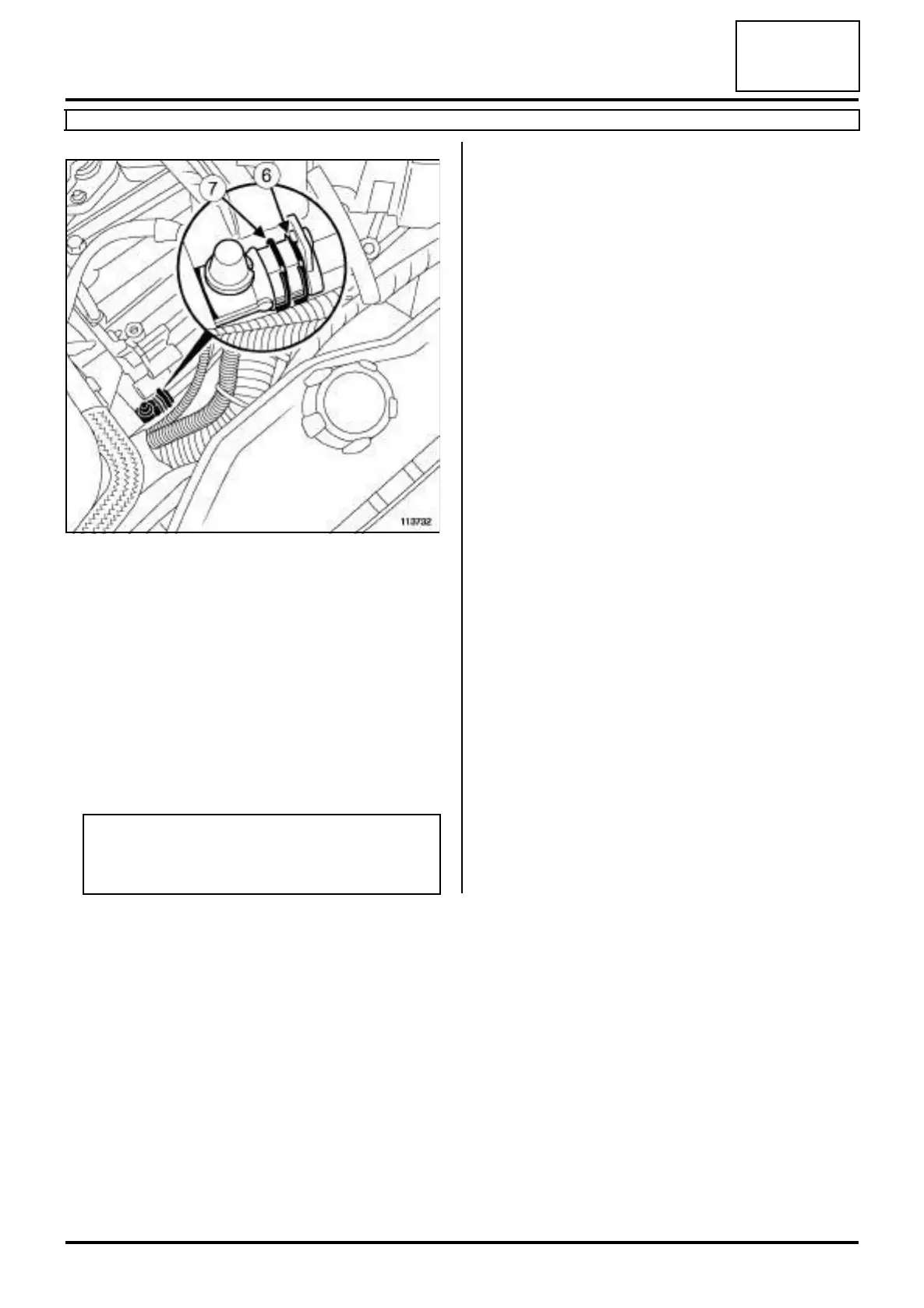

Bleed screw with two clips.
a To open the bleed screw, lower the clip (6) and lift
the clip (7) while pulling by one notch.
III - BLEED PROCEDURE IF NO PARTS OF THE
HYDRAULIC CIRCUIT ARE REMOVED
1 - Bleed using the ARC50.
a Keep the clutch pedal in the upper position using a
strap attached to the steering wheel to ensure conti-
nuity of the hydraulic circuit during the bleed opera-
tion.
a Connect the brake circuit bleeding device (after
having received Renault approval) to the master cyl-
inder reservoir (see the instructions for the equip-
ment).
a Remove the bleed plug from the clutch slave cylin-
der.
a Connect a transparent pipe to the bleed hole running
to an empty container placed under the bleed hole.
a Open the bleed screw.
a Open the circuit between the bleeding device and
the brake fluid reservoir.
a Let the brake fluid run until all air bubbles have been
released.
a Stop the bleeding device to dump the pressure in the
clutch circuit.
a Close the bleed screw.
a Remove the transparent pipe from the bleed hole.
a Refit the bleed plug.
a Top up the brake fluid level in the master cylinder
reservoir after disconnecting the bleed device.
a Disengage and engage the clutch quickly around
twenty times.
a Check that the clutch system is operating correctly.
a Repeat the bleed operation if necessary.
a Check the adjustment of the switch. (see 37A, Me-
chanical component controls, Clutch pedal
switch: Removal - Refitting, page 37A-35) (37A,
mechanical control elements).
113732
Note:
Ta k e c a re not to disrupt the adjustment of the
clutch start of travel switch.
